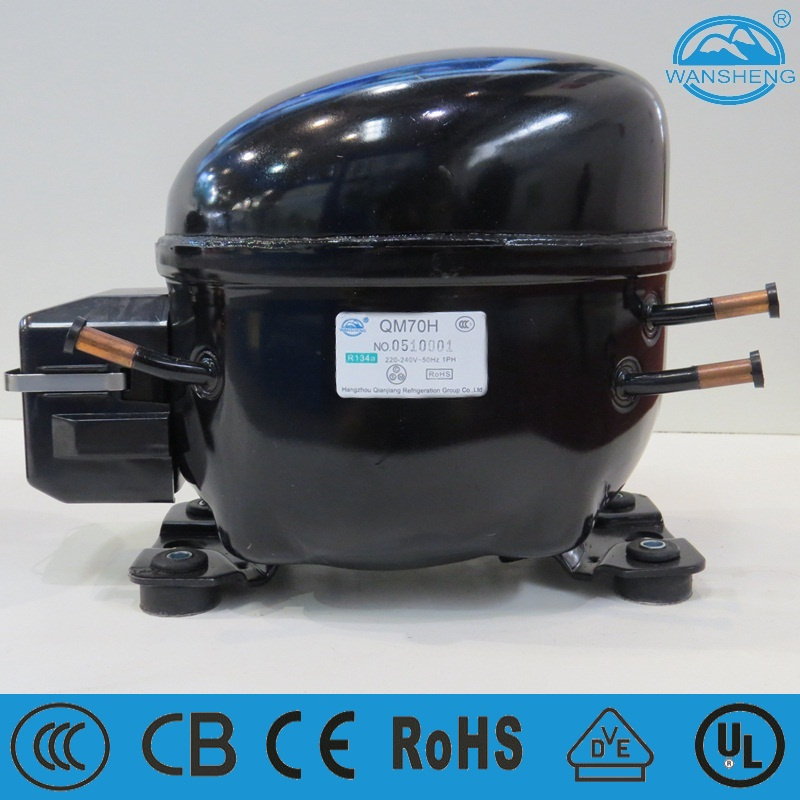

Piston Reciprocating R134A Compressor Qm70h

Product Specifications

Prod Model:	QM70H-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Low Noise
Type:	Reciprocating
Drive Mode:	Electric
Piston Type:	Closed
Configuration:	Stationary
Power Source:	AC Power
Material:	Copper
Lubrication Style:	Lubricated
Mute:	Not Mute
Application:	High Back Pressure Type

Product Description

Frequency only for 50HZ

Voltage application from 220 to 240V

Application in Medium-Large size refrigerator, freezer, cabinet, dehumidifier, liquor cabinet, etc.

Small size

High efficiency

High reliability

Low sound & vibration

COP is 2.06 when Evap. Temp. Is 7.2° C

RSIR Motor

Cooling type F

QM70H has passed CCC certification

High Back Pressure

Several general requirements as below

Compressor should be stored in a dry and drafty place.

Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.

Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.

The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

Cabinet Refrigerator Compressor QM70H used in industrial compressor, chest freezer compressor etc.

WQ series QM70H is R134a Compressor

Cheap price and good service provided for the compressor QM70H

Starting device is PTC

WANSHENG Refrigeration Compressor

Test Conditions

H/MBP

Subcooling Temp.: 46.1°C

Evap. Temp.: 7.2°C

Cond. Temp.: 54.4°C

Amb. Temp.: 32.2°C

Suction Temp.: 35°C

Model

Power Supply (V/Hz)

Refrigerant

(-10°C) Cooling Capacity (W)

(-5°C) Cooling Capacity (W)

(0°C) Cooling Capacity (W)

(7.2°C) Cooling Capacity (W)

(7.2°C)Input Power(W)

(7.2°C ) COP Power Efficiency COP (W/W)

Motor Type

Starting Device

Starting Capacitor (μF)

Running Capacitor (μF)

Cooling Type

QM70H

220~240V/50Hz

R134a

310

391

482

640

310

2.06

RSIR

PTC

/

/

F2
