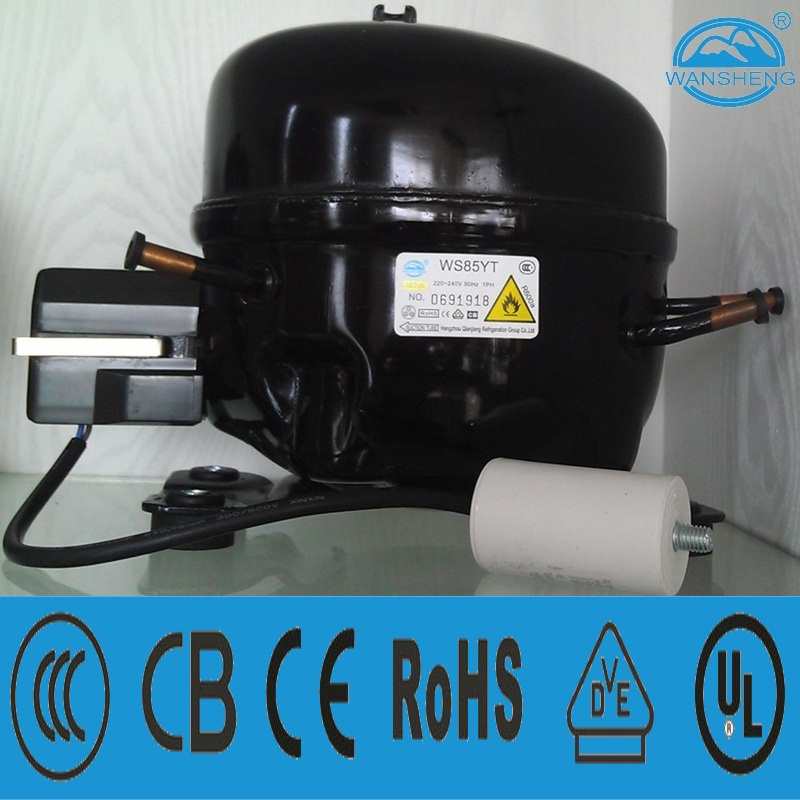

Ws Series Ws85yt R600A Refrigerator Compressor

Product Specifications

Prod Model:	WS85YT-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

WS series WS85YT application in refrigerators, freezers, display cabinets, wine chests, etc.

Especially suit for wine chests

WS85YT has passed CCC/CB/CE/VDE certification

COP 1.8

Motor Type is RSCR

Use R600a refrigerant

Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; under special conditions voltage low to 165V and high to 242 is allowable.

Strictly processed refrigerant oil has been authorized by Wansheng Compressor to add into R600a compressor. It is not allowed to pour out or add randomly, otherwise all technical assurance would be invalid.

High efficiency

High stability

High reliability

Good start-up performance

Low vibration

Low noise

WS85YT voltage application from 220 to 240V

Frequency only for 50HZ

Low Back Pressure

Starting device is PTC

R600a WANSHENG  Low Back Pressure (LBP) Compressor
WANSHENG  Low Back Pressure (LBP) Compressor				Test Conditions		LBP ASHRAE			Subcooling Temp.: 32.2°C
						Evap. Temp.: -23.3°C			Cond. Temp.: 54.4°C
						Amb. Temp.: 32.2°C			Suction Temp.: 32.2°C
Model	Power Supply (V/Hz)	Displacement (cm³)	Rated Power   (W)	Nominal Power (HP)	Cooling Capacity (W)	COP Power Efficiency COP (W/W)	Motor Type	Starting Device	Starting Capacitor (μF)	Running Capacitor (μF)	Cooling Type
WS85YT (WT)	220-240V~50Hz	8.5	81	1/9	145	1.8	RSCR	e-PTC	/	4	S
