Product Specifications
| Prod Model: |
N050YL-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Piston |
| Drive Mode: |
Electric |
| Piston Type: |
Closed |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Material: |
Copper |
| Lubrication Style: |
Lubricated |
| Mute: |
Not Mute |
| Application: |
Low Back Pressure Type |
Product Description
1. Reliable starting performance
2. Low sound & vibration

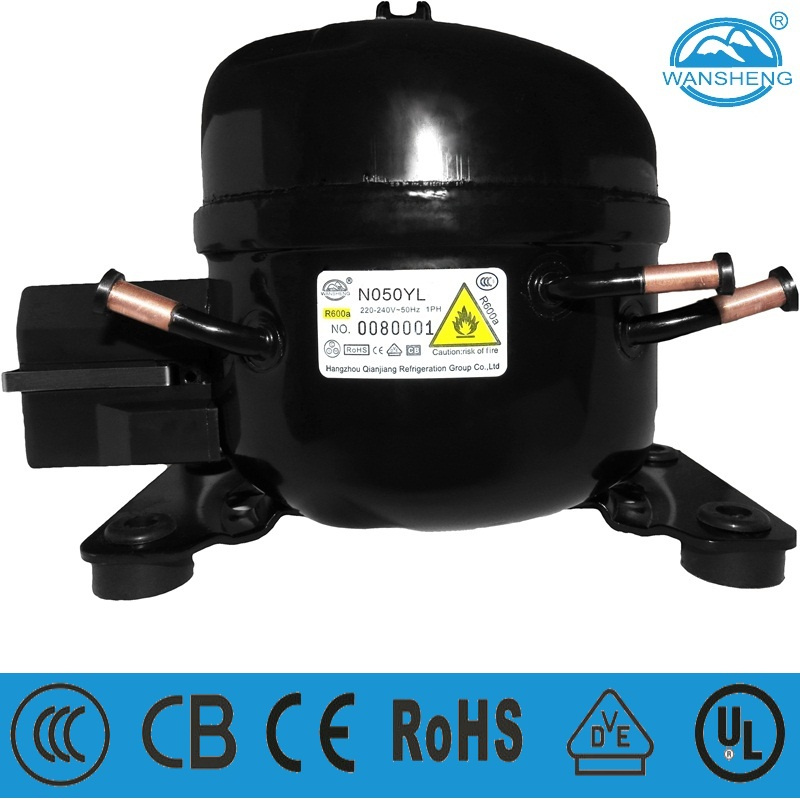

3. N050YL is R600a Compressor
4. Cheap price and good service provided for the compressor N085YL
5. Starting relay is PTC
6. Frequency only for 50HZ
7. Voltage application from 220 to 240V
8. COP is 1.2 when Evap. Temp. Is 7.2° C
9. RSIR Motor
10. Cooling type S
11. Low Back Pressure
12. Several general requirements as below
A. Compressor should be stored in a dry and drafty place.
B. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
C. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
D. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
13. N050YL is our new series compressor
14. N Series used in drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other small-sized refrigeration equipments
15. N Series Compressors is small size
16. High efficiency & reliability
| R600a WANSHENG Low Back Pressure(LBP) Compressor |
| Wansheng R600a Low Back Pressure(LBP) compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| N series |
| N050YL | 220-240V/50Hz | 3.3 | 53 | 44.2 | 1/15- | 1.2 | RSIR | / | PTC | S |
