Machine name:

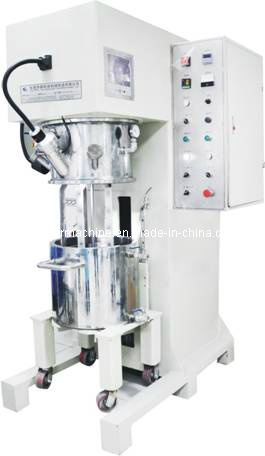

Planetary high efficiency solder paste Mixer
Machine features:
The PLC automatic paste mixer Which involved With reaction and mixing applied to all kinds of lines, for liguid to liquid, Solid to liguid, paste to powder also for density, ratio and viscosity Widely. It is widely used in the energy, electronics, capacitor. Cosmetics, daily Chemicals and food industry.
Features:
1. Mechanical seal and partionlar trapeziform seal between the tanks Ensure the stuffs operation in vacuum condition.
2. Heating by of electricity. Stream, water or heating oil just upon Customer`s choice
3. The tank inner wall is machined accurately and polished by Automatic polishing machine, which helps to scrappe off the stuffs Adhere to the inner wall easily.
4. The impeller be the stainless-steel frame structure one of the Impeller is equipped with scraper at side & bottom, thus can mix The stuffs. Which adhere to the inner wall.
5. This set adopt planetaxy gear transmission principle the impeller Rotate on the basis of the revolution of the planetory frame, to ensure The stuffs a more evenly mixed effect.
6. Revolution and rotation adopt invertor control. And one can choose Different speed according to material and viscosity factor.
Our workshop
About our company
Victory Technology International LTD has been a professional mixing and seperation, sieving machine manufacuturer with more than 20 years history, Covering of 33, 000-square-meter standard modernized factory building, we are being the largest sieving machine production base, we have introduced advanced technology from USA, so as to improved our products' performance, Meanwhile, we adopt the original comonents during the manufacturer process, which are not only approbated by many old customers, but also won us more and more new&old customers, With those advantages, our products have been selling well in the EAST&SOUTH Asian, European, American and Janpanese markets
Picture with our customers
|
whisk motor |
3.0 |
|
Mixing cage revolution speed |
0~50 rpm |
|
mixing cage rotation speed |
0~50rpm |
|
mixing tank |
316*¢350mm |
|
mixing tank design capacity |
30L |
|
Mixing tank working capacity |
28L |
|
lifting power |
1.1-4kw |
|
lifting speed |
1.5m/min |
|
max hoisting moment |
1450kg |
|
vacuum pump power |
1.1kw |
|
vacuum pump rotation speed |
1400rpm |
|
Max vacuum pressure |
9*10¯² |
|
evacuation speed |
5L/S |
|
Frequency |
50+/-2% HZ |
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
