Plastic Bottle Automatic Shrinking Labeling Machine / Equipment / Machinery

Product Specifications

Prod Model:	JST-150T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Label Material:	PVC
Sleeve Speed:	150 Bottles Per Minute
Bottle Shape:	Round or Flat
Bottle Size:	200-2000ml, Special Can Be Made
Power:	1.5kw
Steam Consuption:	15kw
Process:	Shrinking Labeling Machine
Automatic Grade:	Automatic
Type:	Automatic Labeling Machine
Driven Type:	Electric
Packaging Type:	Bottles
Applicable Industry:	Bottles
Application:	Dairy Products
Packaging Material:	PVC

Product Description

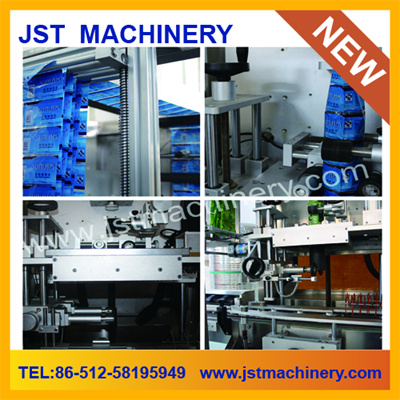

Plastic bottle automatic shrinking labeling machine / equipment / machinery

It is our automatic shrinking labeling machine, it is suitaboe for different bottles. The body of this shrinking labeling machine adopts a great deal of aluminium alloy, combined with anode treatment and 304 stainless steel, enabling the overall structure of the machine to be more robust and durable from jst machinery. As for mechanical performance, its modular and human-oriented design ensures easier operation with high speed and more convenient style change. Human-machine interface is adopted for the control circuit and it is easy to learn. The excellent circuit design further ensures the label inserting speed of this machine to be in the leading position internationally. Due to its completely new design concept, not only lots of mechanical adjustment has been eliminated, but also the accuracy of label cutting and production speed has been further enhanced. The followings will be the detailed description on mechanical operation of this machine.
It can be called water bottle labeler, sleeve labeler, PVC sleeve labeler, automatic labeler, full automatic sleeve labeler and so on
Parameter:

1, mainframe: AC380V, 50/60Hz, 3KW, three phase
2, steam shrinking oven: AC380V, 50/60Hz, 1.5KW, 3 phase
3. Bottle diameter: 28mm ~125mm
4. Length of the label: 30mm ~ 250mm
5. The height of the label: 0.035mm ~ 0.13mm
6. The material of the label: PVC label, PET, OPS
7. The size of the labelling machine mainframe: L2000mm*W1200mm*H2200mm
8. Steam shrinking oven: The consumption of the steam: 50Kg/hour
9. The pressure of the steam: 1Kg/cm2
10. The volume of steam stype oven: L2000mm*W500mm*H1500mm
If your bottle is special, please let me know.


In case of different and irregular round, square bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. For jst machinery, the distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of operation and maintenance

Plastic bottle shrinking labeling machine after-sales service:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months

FAQ for automatic shrinking labeling machine
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. What kind of package, plastic bottle, glass bottle: Volume, height, neck diameter, diameter of bottle or other please inform us of details.
4. Sole machine or whole production line?
