Product Specifications
| Prod Model: |
VCC120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Vcc120 |
| Brand: |
Fenstek |
| Name: |
Corner Cleaner |
| Milling Cutter Revolution: |
2800r/Min |
| Air Consumption: |
15L/Min |
| Profile Height: |
80 Mm |
| Profile Width: |
120mm |
| Overall Dimension: |
1200X 800X 1600mm |
| Weight: |
162kg |
| Cylinder: |
Jpc(Festo Joint Venture Brand) |
| Certification: |
CE, UL, ISO |
Product Description

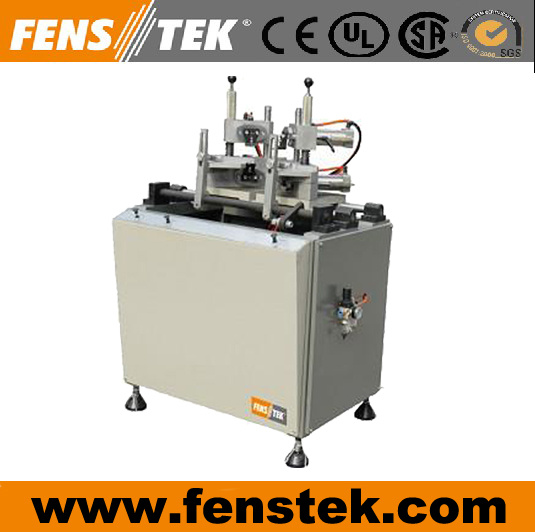

Corner Cleaner
Model: VCC120
Features:
1. Special for mullion V-shaped welding and cross welding cleaning
2. Special centering device for easy adjusting
3. No need electrical power supplying.
4. Two hand safety operation
Standard accessory:
Groove surface cutter: 4PCS
Work piece supports: 2set
Air Gun: 1PC Complete tooling: 1set
Certificate: 1PC
Operation Manual: 1PC
Optional Device:
Dust Collector System
Flat surface cutter
Our Advantage:
1. Over 15 years of manufacturing experience
2. 20 offices in China and 7 overseas offices
3. Quality assurance system thanks to partnership with Festo, Schneider, Omron, etc
4. Made-to-order capability
RELATED WINDOW MACHINE
PVC CUTTING SAW:
Single Head Cutting Saw (SS350)
Double Head Cutting Saw (DS350× 3500)
Double Head Cutting Saw (DS450× 3700) Digital Display Avaliable
Double Head Cutting Saw Digital Display Avaliable / Automatic Model Avaliable (DS450× 3600 / DS450× 5000)
V Notch Cutting Saw (VS60 / NVS60)
Mullion Cutting Saw (MS55)
Glazing Bead Saw (GBS1800 / GBST1800)
ALUMINUM CUTTING SAW:
Double Head Cutting Saw (DS500× 4200 / LJZ2B-500× 4200) Digital Display Avaliable / Automatic Model Avaliable
MILLING MACHINE
Auto Water Slot Milling Machine (WSM2 / WSM3 / WSM4 / AWSM3)
Copy Router One Head (CR290)
Lock Hole Milling Machine (LHM100 / NLHM100)
Cap Seal Milling Machine (CSM80)
Cap Seal Punching Machine (LY-BD)
Auto End Milling Machine (EM200 / EM80)
Multi-drilling Machine (MHD4-5000)
WELDING MACHINE
Single Head Welding Machine for 2mm (SHT01)
Single Head Welding Machine for None 90 Degree (SH01)
Two Head Welding Machine for 0.2mm&2mm Auto Change (HTWA2 / HTW2SA-120)
Two Head Welding Machine for 0.2mm (HTW2-120 / NHTW2-120)
Two Head Welding Machine for 0.2mm for South Korea Style (HW2S260)
Three Head Welding Machine for 0.2mm&2mm Auto Change (HTWA3 / HTW3SA-120)
Three Head Welding Machine for 0.2mm (HTW3-120 / NHTW3-120)
Four Head Welding Machine for 0.2mm&2mm Auto Change (HTWA4 / HTW4SA-120)
Four Head Welding Machine for 0.2mm (HTW4-120 / NHTW4-120)
Cross Welding Machine (CW-100)
CNC Vertical 4 Point Welding Machine (Full Auto) (AVW3000)
CNC Vertical 4 Point Welding Machine for 0.2mm&2mm (AVW3000S)
Vertical 4 Point Welding Machine (Semi-Auto) (VW3000)
CNC Horizontal 6 Point Welding Machine (AHW6000)
CORNER CLEANER
CNC Corner Cleaner (ACC120)
Flat Corner Cleaner (FCC120)
V Corner Cleaner (VCC120)
Corner Cleaner (CC120)
Tel: +86 531 5877 5781
Welcome to contact us for detailed information.
|
Parameter |
|
Air Pressure |
0.5~0.8MPa |
|
Air Consumption |
15L/min |
|
Milling Cutter Revolution |
2800r/min |
|
Profile Height |
80 mm |
|
Profile Width |
120mm |
|
Overall Dimension |
1200× 800× 1600mm |
|
Weight |
162kg |
Main accessory: |
|
Cylinder |
JPC(FESTO Joint Venture Brand) |
|
Air Filter Device |
STNC |
