Two Component Sealant Extruder/ Glass Machines/ Window Machinery (SDQ-III)

Two Component Sealant Extruder/ Glass Machines/ Window Machinery (SDQ-III)
Supplier: Jinan Fenstek Engineering Co., Ltd.
Price: Negotiable/Piece
Min Order: 1SET
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: SDQ-III
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Model: Sdq-III
Brand: Fenstek
Name: Two Component Sealant Extruders
Usage: Insulating Glass
Outline Dimension: 1160×1040×2640mm
Total Weight: 580kg
Quatity Of Gas: 0.8m3/Min
Work Pressure: 0.5-0.8mpa
Qualtity: High Quality
Package: Pallet, Wooden Case
Type: Insulating Glass Production Line

Product Description

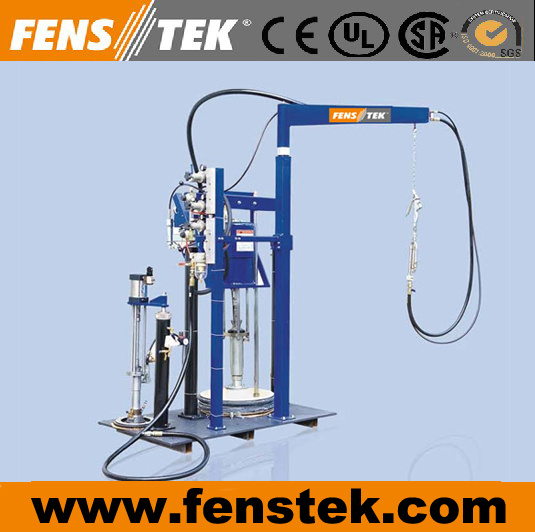

Insulating Glass Machine for Two Component Sealant Extruders
Model: SDQ-III

Performance characteristic
1. The synchronizing linkage match structure can be adjusted conveniently.
2. The acicular one-way value ensures mixture not to reflow, avoiding rohrinnere solidification.
3. Totally-enclosed firming agent glue-way system, preventing firming agent from meeting air.
4. Sensitive high-pressure protective value makes the operation in safe condition.
5. Gas boost drive has the performance of stable pressure and evenly glue extruding.
6. Adopt international popular static reciprocating-type mixer to mix more evenly.
7. Key materials: Silicones, polysulfides, polyurethanes.

RELATEN MACHINES:
Rotating Sealing Table (XZT01)
Automatic Desiccant Filling Machine (ZFGJ-02B/ FGJ-200)
Butyl Coating Machine (DJJ03)
Automatic Insulating Glasss Machine (LBP1800H/ LBP2200A/ LBP2500A/ LBP1800A-1/ LBP1800C/ LBP1800/2000/2200)
Spacer Bending Machine (LZW01/ ZLZW02)
Automatic Low-E Film Removing Machine (CMJ00)
Horizontal Insulating Glass Washing-Drying Machine (BX1600)
Two Component Sealant Extruder (SDQ-III)
Automatic Sealant Extruder (ZDJ-01)
Insulating Glass Production Line (RY1600)

Tel: +86 531 5877 5781
Welcome to contact us for detailed information.
Pump A Barrel diameter 570mm
Volume 200L
Pump B Barrel diameter 280/295mm
Volume 20L
Ratio rang A glue: B glue 7:1 - 13:1
Max extruding glue quantity L/min 1
Pneumatic system Work pressure 0.5-0.8MPa
Quatity of gas 0.8m³/min
Outline dimension L×W×H 1160×1040×2640mm
Total weight 580kg

FENSTEK Introduction

FENSTEK is an engineering firm that has been in business for over 15 years which specialized in the manufacture and supply of window and door fabrication machinery, curtain wall equipment and insulating glass machines.
FENSTEK have developed an unique diverse staff dedicated to develop new products with the total investment of $100.000 each year. And the new product spring at a rate of 10 annually.
FENSTEK have passed ISO9000 certification 2000 version, Major products passed CE certificate.
FENSTEK headquartered in Jinan with total floor space of 5000 square meters, our client base reaches across the China to the world, with more than 2000 customers and 23 offices in China.
FENSTEK team travelled over 30 countries.
FENSTEK products crosses boarders into more than 50 nations around the world
FENSTEK own the abroad offices in USA, Brazil, India, and Hong Kong etc.
FENSTEK unique company philosophy "sincere, speedy, specialized, smart, study, support" makes us truly outstand in the market
FENSTEK, the first Chinese company developed high-end seamless welding machine with "auto-change" function
FENSTEK offer the most popular screw driving machines in China, both pneumatic and electrical
FENSTEK, the first Chinese company setting up overseas sales office in the window machine industry
FENSTEK, the first Chinese company providing local service in the window machine industry
FENSTEK, the first Chinese company has over 100 customers in one foreign country in the window machine industry
FENSTEK continue to lead the industry to the next level
