Product Specifications
| Prod Model: |
HP3024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
7000*4000*2000mm |
| Heating Method: |
Radiation, Convection |
| Voltage: |
380V |
| Weight: |
3220kg |
| Power(W): |
790kw |
| Glass Thickness: |
4-19mm |
| Machine Type: |
Glass Tempering Furnace |
| Inverter: |
Schneider, Convo |
| Driving Power: |
5-20kw |
| Type: |
Glass Tempering Furnace |
| Certification: |
ISO |
| Control System: |
PLC |
Product Description

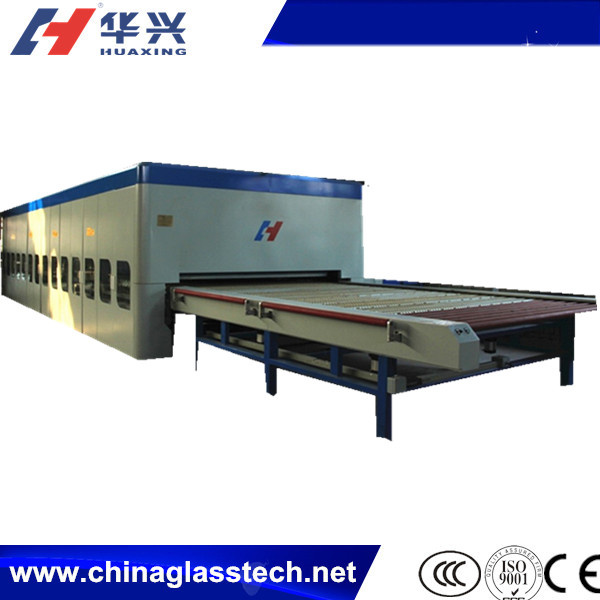

PLC control system forced convection glass processing machinery
1. Brief introduction
This glass bending &tempering furnace is used for producing large-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc.
2.pictures of glass making equipment
3.Technical parameter
type |
Max. size(mm) |
Min. size(mm) |
Thickness(mm) |
Capacity(m2/h) |
Power supply capacity(KVA) |
HP1506 |
1500*600 |
90*90 |
3-8 |
14 |
≥100 |
HP1508 |
1500*800 |
100*100 |
3-12 |
18 |
≥150 |
HP2010 |
2000*1000 |
100*100 |
3-12 |
30 |
≥200 |
HP2012 |
2000*1200 |
120*120 |
3-12 |
37 |
≥250 |
HP2512 |
2500*1200 |
120*120 |
3-12 |
46 |
≥250 |
HP2515 |
2500*1500 |
150*250 |
3-19 |
57 |
≥315 |
HP3015 |
3000*1500 |
150*250 |
3-19 |
69 |
≥400 |
HP2518 |
2500*1800 |
150*250 |
3-19 |
69 |
≥400 |
HP3018 |
3000*1800 |
150*250 |
3-19 |
83 |
≥400 |
HP3618 |
3660*1800 |
150*250 |
3-19 |
99 |
≥500 |
HP3021 |
3000*2100 |
150*250 |
4-19 |
96 |
≥500 |
HP3621 |
3660*2100 |
150*250 |
4-19 |
116 |
≥600 |
HP4221 |
4200*2100 |
150*250 |
4-19 |
135 |
≥700 |
HP3624 |
3660*2440 |
150*250 |
4-19 |
132 |
≥630 |
HP4224 |
4200*2440 |
150*250 |
4-19 |
154 |
≥800 |
HP5024 |
5000*2440 |
150*250 |
4-19 |
184 |
≥1000 |
HP6024 |
6000*2440 |
150*250 |
5-22 |
220 |
≥1000 |
HP5028 |
5000*2800 |
200*300 |
5-22 |
214 |
≥1000 |
HP6028 |
6000*2800 |
200*300 |
5-22 |
257 |
≥1250 |
4.Processable glass type
1) Clear float glass
2) Reflective glass
3) Low-E glass
4) Patterned glass
5) color float glass
6) single face silk screen glass
7) super white pattern glass
6. Our factory
7. Certificate
8.Our service
Installation and Commissioning
we can arrange technical engineers to install the equipment on-site. Also, our technical engineers can finish the installation and adjustment within 20 days.
The Switch Machine Operation Procedures Training
The significance of panel and the control parameters, and the training of parameter selection range ; Control software operating training; The basic cleaning and maintenance of the machine;
Common hardware fault handling; Problems should be paid attention to in operation; Besides, we also supply the related products technical support.
