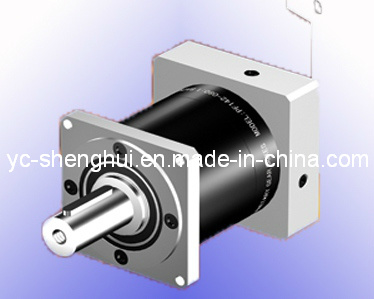

PLF-200 Servo Planetary Reduction Gearbox/ Reducer/ Gear Reducer

Name: PLF-200 Servo Planetary Reduction Gearbox/ Reducer/ Gear Reducer
Brand: china-manufacturer-directory.com
SKU: 712851145
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1unit
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. PLF series precision planetary gear speed reducer Model: PLF40, PLF60, PLF90, PLF120, PLF160, PLF200
2. The speed ratio: 3, 4, 5, 7, 9, 10, 15, 20, 25, 30, 35, 40, 50, 64, 70, 80, 100, 150, 200, 250, 350, 400, 500, 700, 1000
3. Stages: Three
Performance and features:
1. Planetary gear transmission interface using doesn't contain full needle needle bearing, and increase the contact area to improve structural rigidity and output torque;
2. PLFseries precision planetary gear reducer, with high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rising, beautiful appearance, structure, light weight, easy installation, accurate positioning, etc, and is suitable for AC servo motor, DC servo motor, stepper motor, hydraulic motor of growth and slow down transmission

Type		PLF-40	PLF-60	PLF-90	PLF-120	PLF-160	PLF-200	Ratio	Stages
T2N Rated output torque (Nm)		10	28	120	220	480	1230	3	1
		15	48	150	270	590	1450	4
		15	48	150	270	590	1450	5
		9	39	110	215	470	1130	7
		7	19	58	98	260	720	10
		10	28	120	220	480	1230	9	2
		15	48	150	270	590	1450	15
		15	48	150	270	590	1450	20
		15	48	150	270	590	1450	25
		15	48	150	270	590	1450	30
		15	48	150	270	590	1450	35
		15	48	150	270	590	1450	40
		15	48	150	270	590	1450	50
		9	39	110	215	470	1130	70
		7	19	58	98	260	720	100
		15	48	150	270	590	1450	64	3
		15	48	150	270	590	1450	80
		15	48	150	270	590	1450	100
		15	48	150	270	590	1450	150
		15	48	150	270	590	1450	200
		15	48	150	270	590	1450	250
		15	48	150	270	590	1450	350
		15	48	150	270	590	1450	400
		15	48	150	270	590	1450	500
		9	39	110	215	470	1130	700
		7	19	58	98	260	720	1000
emergency stop torque		T2not=2T2N
Rotational inertia (kgm2)		0.031	0.0135	0.77	2.63	12.14	15.6	3	1
		0.022	0.093	0.52	1.79	7.78	16.3	4
		0.019	0.078	0.45	1.53	6.07	15.4	5
		0.017	0.065	0.39	1.32	4.63	16.1	7
		0.016	0.065	0.39	1.32	4.63	15.2	10
		0.03	0.131	0.74	2.62	12.14	15.9	9	2
		0.023	0.077	0.71	2.53	12.35	15	15
		0.019	0.075	0.44	1.5	6.65	15.7	20
		0.019	0.075	0.44	1.49	5.81	15.3	25
		0.017	0.064	0.39	1.3	6.36	15.2	30
		0.016	0.064	0.39	1.3	5.28	16.1	35
		0.016	0.064	0.39	1.3	5.28	15.2	40
		0.016	0.064	0.39	1.3	4.5	15.2	50
		0.016	0.064	0.39	1.3	4.5	15.2	70
		0.016	0.058	0.31	1.12	3.53	15.2	100
		0.019	0.075	0.5	1.5	7.5	15.4	80	3
		0.019	0.075	0.44	1.49	7.4	15.4	100
		0.016	0.064	0.39	1.3	6.5	15.2	150
		0.016	0.064	0.39	1.3	6.2	15.2	200
		0.016	0.064	0.39	1.3	5.7	15.2	250
		0.016	0.064	0.39	1.3	5.4	15.2	350
		0.016	0.064	0.39	1.3	5.4	15.2	400
		0.016	0.064	0.39	1.3	5.2	15.2	500
		0.016	0.064	0.39	1.3	5.2	15.2	700
		0.016	0.064	0.39	1.3	5.2	15.2	1000
backslash (arcmin)	reduced	<5	<3	<3	<3	<5	<10		1
	standard	<10	<8	<8	<8	<10	<15		1
	reduced	<8	<5	<5	<5	<8	<15		2
	standard	<12	<10	<10	<10	<10	<18		2
	reduced	<10	<8	<8	<8	<10	<18		3
	standard	<15	<12	<12	<12	<15	<22		3
torsional rigidity (Nm/arcmin)		0.7	1.8	4.4	9.2	26.7	66.7
noise dB(A)		55	58	60	65	70	75
Max.input speed		10000	8000	6000	6000	5000	3500	1-min
Rated input speed		4500	4000	4000	3500	2000	1500	1-min
Max.Radialforce(N)		185	265	400	1240	3700	6700	Stages
Max.Axialforce(N)		150	200	420	1000	3500	3800	Stages
Full-load efficiency(%)		96						1
		94						2
		90						3
service life (H)		20000
Weight (Kg)		0.5	1	3	6.2	19	42	1
		0.8	1.5	4.2	8	24	50	2
		1.1	1.8	4.8	9.8	29	58	3

Prod Model:	PLF-40\PLF-60\PLF-90\PLF-120\PLF-160\PLF-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Method:	Cut Gear
Toothed Portion Shape:	Spur Gear
Type:	Circular Gear

Yancheng Shenghui Technology Co., Ltd. is a high-tech enterprise which specializes in the R & D and production of large-scale precision transmission equipments in China. At present, the company's main products include five series and thousands kinds of products, such as precision servo planetary reducers, planetary reducers, gear reducers, bevel gear reducers and worm gear reducers, etc.
The products are widely applied to mechanical transmission and precision controlling fields of light and heavy industries, such as cement equipments, coal equipments, mining machinery, beer and beverage, food packaging, textile printing and dyeing, rubber and plastics, petrochemical equipments, lifting and transporting equipments, pharmacy and leather-making leather, environmental-protection equipments, and so on. As a backbone enterprise of precision transmission equipments in China, currently the company completely introduces into the latest manufacturing techniques, equipments and means of inspection from Germany, and cooperates with the domestic academic institutions to establish the Transmission Technology Research Center, bringing together numerous outstanding research talents. In addition, the company provides complete solutions of transmission for clients with excellent quality and carries out the R & D of various types of transmission equipments through its three-dimensional optimized designs and finite-element analysis. Sheng Hui Technology Co., Ltd. is committed to the development and production of domestic and foreign precision transmission equipments to provide the best solution for the transmission application of the domestic machinery industry. At present, the products of the company have reached more than ten thousand kinds of models, and have been sold to more than 20 countries and regions around the world.
The company adheres to the corporate culture of "honesty, innovation, faith and responsibility" and management principles of "customer first, R & D and innovation and continuous improvement", and has always been providing services for both old and new clients, striving to create a leading international high-tech manufacturing enterprise.
