Product Specifications
| Prod Model: |
CBB65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacitance: |
1-120UF |
| Rated Voltage: |
220-630VAC |
| Operating Temperature: |
40/85/21 or 40/70/21 |
| Size: |
Available on Request |
| Capacitor Deviation: |
5% |
| Class Of Safety Protection: |
P0, P2 |
| Shape: |
Cylinder or Ellipse |
| Type: |
Polypropylene Capacitor |
| Package Type: |
Through Hole |
| Application: |
Automobile |
| Usage: |
Film Capacitor |
| Structure: |
Single Phase Capacitor |
| Electrolyte: |
Oil/Resin |
| Filter: |
Film Capacitor |
| Tuning: |
Motor Capacitor |
Product Description
Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.The reliability is more affirmatively enhanced.

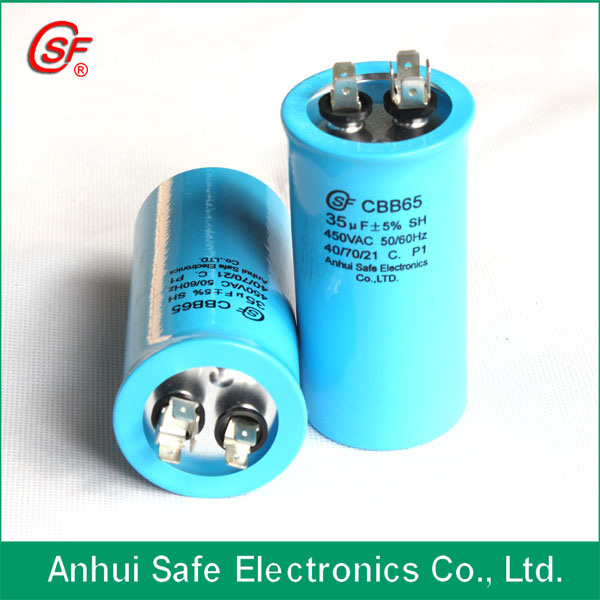

Polypropylene Capacitor CBB65
1. Used for air conditioner. High level quality, reasonable price.
2. Polypropylene capacitor CBB65 with VDE, CQC, RoHS, CE certific
Polypropylene capacitor CBB65
Features and use: The product is inside equipped with reliable explosion-proof equipment And is highly safe. With its good self-healing characteristic and Long life-span, it is widely used for air-conditioners, refrigators Generators, illumination lamps etc.
Technical features: Climate types: 40/85/21
Capacitor tolerance: +/-5%, +/10%
Testing voltage: Between leading-out ends: 1.75UR10S no breakdown
Between leading-out end and shell: 2000VAC10S no breakdown
Insulation resistance: Between leading-out ends: ≥ 3000MΩ . UF.
Beween leading-out end and shell: ≥ 1000MΩ .
Tangent of loss angle: Tgδ ≤ 0.002(50Hz)
Specifications: Can be supplied according to the customers special need.For more information,you can contact and view our website:
www.capacitorfilm.com
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

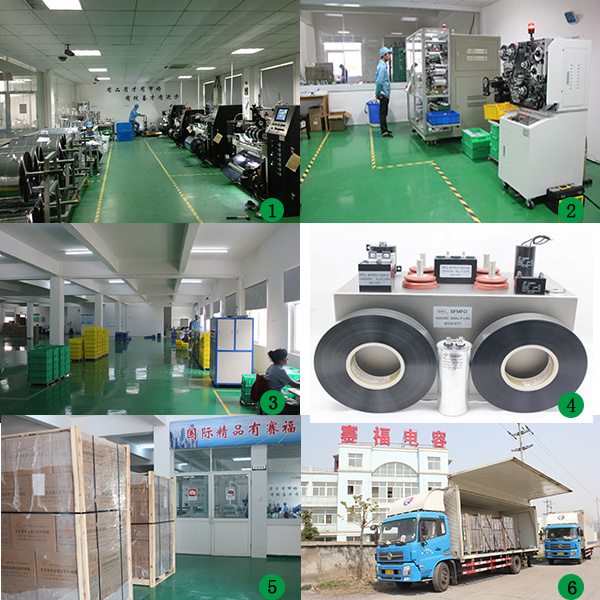

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
