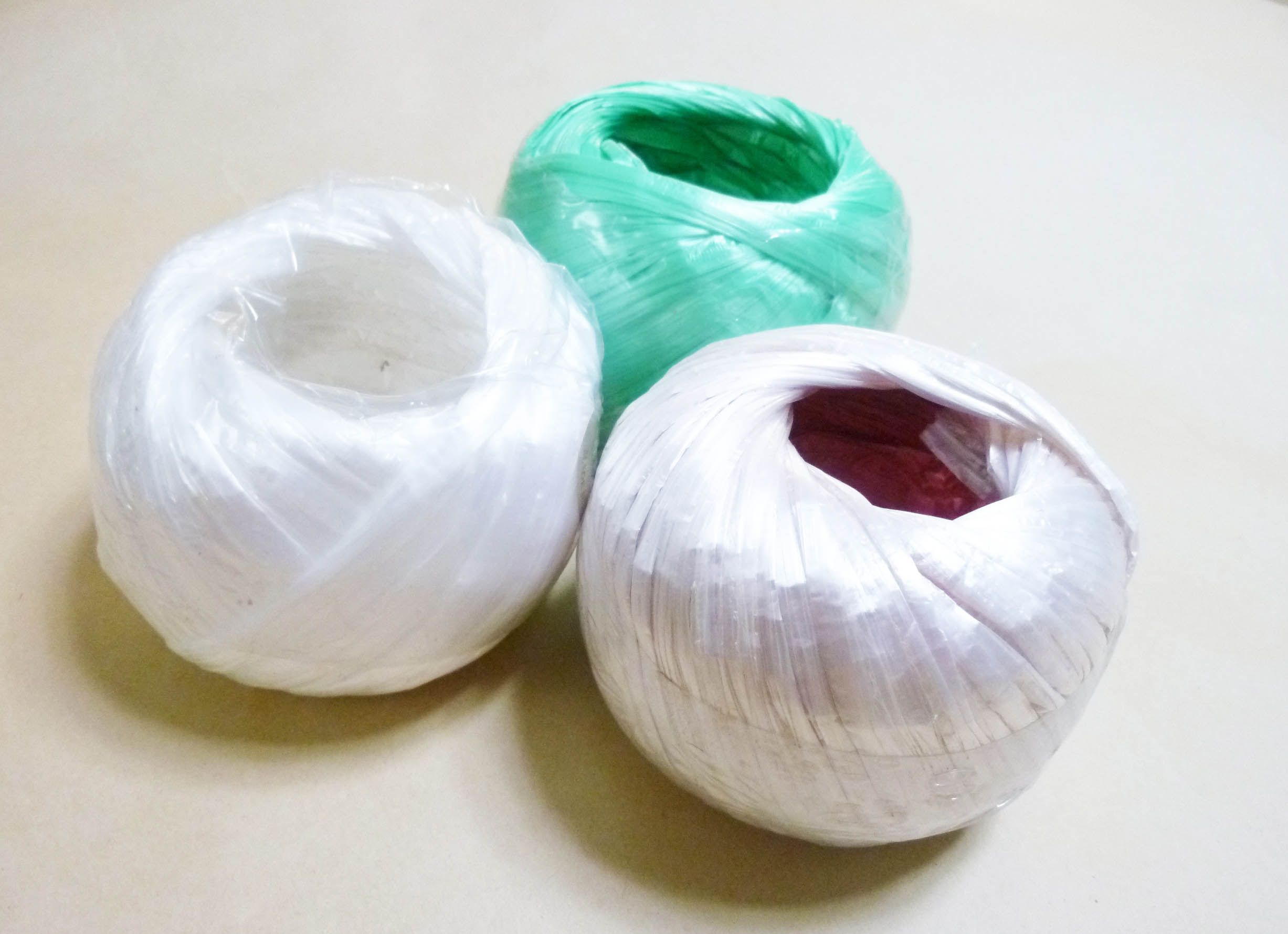

Polywine Rope

Name: Polywine Rope
Brand: China-Manufacturer-Directory.com
SKU: 680313391
Availability: InStock
Rating: 4.7 (76 reviews)

Supplier:	Ton Key Industrial Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	others

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw:	Twin-Screw

Product Description

It's made by PP Polywine Extruder

Feature:
- Various types of extruder, based on yarn output, are available.

T-die type, Blown type is also available.

PP Polytwine Extruder

Model: TK-75EPP

Specification:

Item No.	Description	Specification
	Material	Polypropylene
	Extruding Capacity	20 – 70 kgs/ hour
A.	Extruder
1	Screw Dia	75 mm
2	Screw Length (L/D)	26/1
3	Screw Rotation Speed	0 – 80 R. P. M
4	Driving Motor	30 HP
5	Temperature Controller	5 Zones
6	Heating Capacity	38 kw
B.	T-Die
1	Die	75mm
2	No. of yarn	75mm/7 pcs, 50mm/10pcs
C	Water Cooling Tank	1 set
1	Water Consumption	4 L/Min
2	Slitting unit	1 set
D.	Take-Up Unit	1 set
1	Driving Motor	3 HP
E.	Stretching Device
1	Heating Capacity	15 KW
2	Stretching rate	4-10
3	Temperature control	2 zones
3.	Stretching plate	1000mm x 2400mm
F.	Stretching Roller Unit
1	Driving Motor	5 HP
2	Roller	270mm x1000mm x 8 pcs
3	Speed	40-100 M/minute
G.	Winder
1	Number of Winding Spindle	24 pcs
2	Driving Motor for control	3HP x 1
3	Winding Speed	300mm
4	Winding motor	1/4 HP x 24 pcs
5	Winding width	300 mm
H.	Attachment
1	Edge yarn recycling system	1 set

CAPITAL:
TOTAL: USD 2, 240, 000.00

BUSINESS ITEM:
A. Weaving Machine & Loom:
> PP Mat Making Plant
> PP Woven Sack Making Plant
> PP/PE Tarpaulin Making Plant
> High Speed Automatic Needle Loom (New & Used)

B. Extrusion System:
> PP Fiber Rope(Polytwine)Making Plant
> PP Heavy-duty Packing Tape Making Plant
> Plastic Waste Recycling Plant
> Plastic Net Bag Making Machine
> Plastic Net Making Machine
> Plastic Monofilament Making Machine
> PVC Garden Hose, LDPE/HDPE Rigid Pipe Making Machine
> PVC Rigid Pipe Making Machine
> PP Drinking Straw Making Machine
> PP Folder Sheet Making Machine
> PS, ABS, HIPS, PP Sheet Making Machine

C. Others:
> Design Card
> Electric Fan
> The Classic Hand-Painted Cold Cast Porcelain
> Electric Fan Guard Making Plant
> Welding Machine
> Ball Pen Making Plant
> Pencil Making Plant

BANKERS:
1. Bank of Taiwan (ChungSan Branch)
2. CitiBank Taiwan Limited

MEMBERSHIP:
A. Taiwan External Trade Development Council (TAITRA)
B. Taiwan Turnkey-Project Association (TTA)
C. Taiwan-Africa BusinessAssociation (TABA)

EXPORT AREA:
Asia: Indonesia, Malaysia, Thailand, China, India,
Bangladesh, Pakistan, Sri Lanka,
Hong Kong, Philippines, Vietnam
Middle East: Saudi Arabia, U. A. E., Oman, Iraq,
Jordan, Bahrain, Turkey...etc.
Africa: Egypt, Morocco, Algeria, Senegal, Nigeria,
Ivory Coast, Ghana, Libya, Sudan, Tunisia,
Kenya, Tanzania, Cameron...etc.
South America: Brazil, Venezuela, Paraguay, Colombia
Europe: Hungary
