PP/PE Monofilament Rope

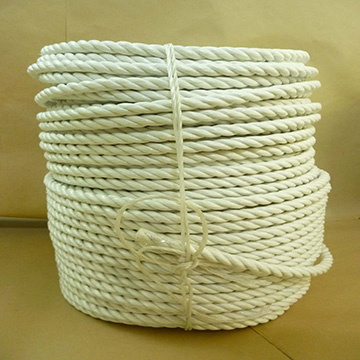

Name: PP/PE Monofilament Rope
Brand: China-Manufacturer-Directory.com
SKU: 680313581
Availability: InStock
Rating: 4.3 (57 reviews)

Supplier:	Ton Key Industrial Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	others

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

It's made for PP/PE Monofilament Extruding Machine
Feature
- Yarn diameter range is adjustable
- Operation safety device
- After winding, easy for next processing step
- Finished Yarn is good for multi-applications
- Special design for die

PP/ PE monofilament extruding machine
Model: TH-75
Specification
1. Output: Max. 75 kg/hour
2. Diameter of Filament: 0.1 -1.00 mm
3. HDPE: Yarnψ 0.24-388D: Speed 120 M/minute=>62.07 kgs/hour.

Item No.	Description	Specification
A.	Extruder
1.	Screw Diameter	Ø 75 m/m
2.	L/D	28: 1
3.	Motor	TECO VS. 40HP
4.	Micro-Computer Program Control
5.	The Thermometer Auto-thermo Control	7 Points SSR Control and LED Display
6.	Jackl	1 pc
7.	Stairs	1 pc
8.	Automatic Loader	1 pc
B.	Cooling Tank	1 set
1.	Dimension ( L × W × H)	850 m/m × 450 m/m × 560 m/m
2.	Material	Stainless Steel
C.	Take-off Unit A	1 set (Roller: 8 pcs)
1.	Motor	TECO VS 5HP
2.	Roll Dia.	Ø 270 m/m × L 500 m/m
3.	Hard-chrome Plated Stainless Steel Roller	4 pcs
4.	Rubber Roller	4 pcs
5.	Press Roller	1 pc (Manual Type)
6.	Line Speed Display
D.	Hot Water Tank	1 set
1.	Size	L 4000 m/m × W 440 m/m
2.	Material	Stainless steel
3.	Micro-Computer Program Control
4.	The Thermometer Auto-thermo Control	2 Points SSR Control and LED Display
5.	Air Compressor	1 HP
6.	Air Cylinder	2 sets
E.	Take-off Unit B	1 set (Roller: 10 pcs)
1.	Motor	TECO VS 10HP
2.	Roll Dia.	Ø 270 m/m X L 500 m/m
3.	Hard-chrome Plated Stainless Steel Roller	10 pcs
4.	Press Roller	1 pc (Manual Type)
5.	Line Speed Display
F.	Winding Machine (H Type)	1 set
1.	Number of Spindle	52 Spindles
2.	Traverse Motor	2 HP
3.	Winding Motor	3KG-CM
