Ton Key Industrial Co., Ltd. >> Twisting Machine No. 1

Twisting Machine No. 1

Name: Twisting Machine No. 1
Brand: China-Manufacturer-Directory.com
SKU: 664872721
Availability: InStock
Rating: 5 (121 reviews)

Supplier:	Ton Key Industrial Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB/CFR/CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Feature:
- The number of spindle and its twisting degree per meter (TPM) are up to
Customer's request
Twisting Machine

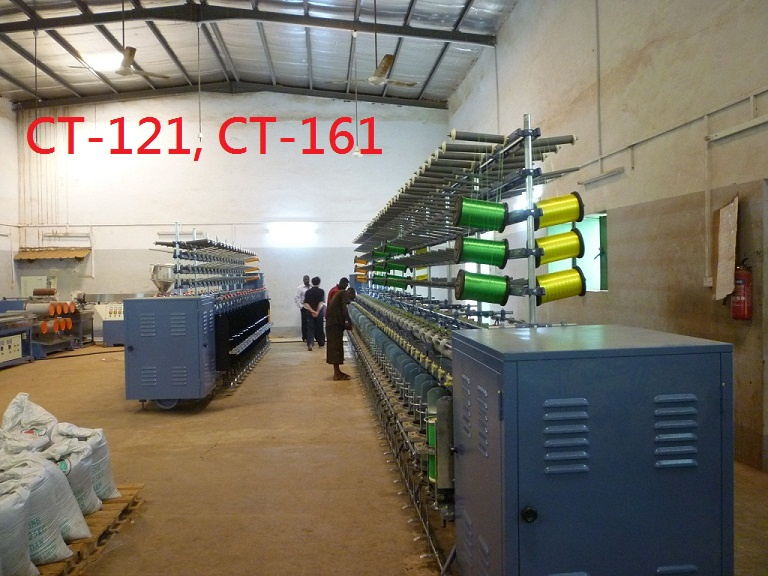

Model: CT-121 (178mm * 11" P*64 Spindles)
Specification:

Item No.	Description	Specification
1.	Spindle	12 inch * 64 sets (base of spindle: HL-68C made in Japan)
2.	Ring	178m/m * 64 sets (oil ring height 38.1m/m, made in Taiwan)
3.	Spindle Gauge	11 inch
4	Lift	12 inch (flat winding type)
5	Spindle Driving	With aluminum pulley 1 tension pulley for every 4 spindles
6	Tension Pulley	2 tension pulley have been arranged the ball bearing inserted tension pulley 100m/m for every driving 4 spindles
7.	The bottom roller is hard chrome plated of 50.8 m/m diameter double thimble type bore outer roller embossing
8	The upper roller is coated by the abrasive rubber, and supported on the movable roller stand
9.	Side Yarn Rack	5 inserted yarn bases/spindle
10.	Yarn Guide Plate	Up-down (active type)
11.	Braking device	Pedal type
12.	The separator is fixed. With digit meter & automatically stop device.
13.	Motor	4P * 25HP
14.	Spindle Belt	1 set
15.	Yarn Bobbin	200 pcs (H type)
16.	Size (L x W)	11 * 1.23 M
*The buyers need to prepare nylon hangers by themselves.
