Product Specifications
| Prod Model: |
7R300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wireless |
| Firewall: |
Firewall |
| Application: |
Enterprise |
| Transfer Rate: |
150Mbps |
| Ports: |
≤4 |
Product Description

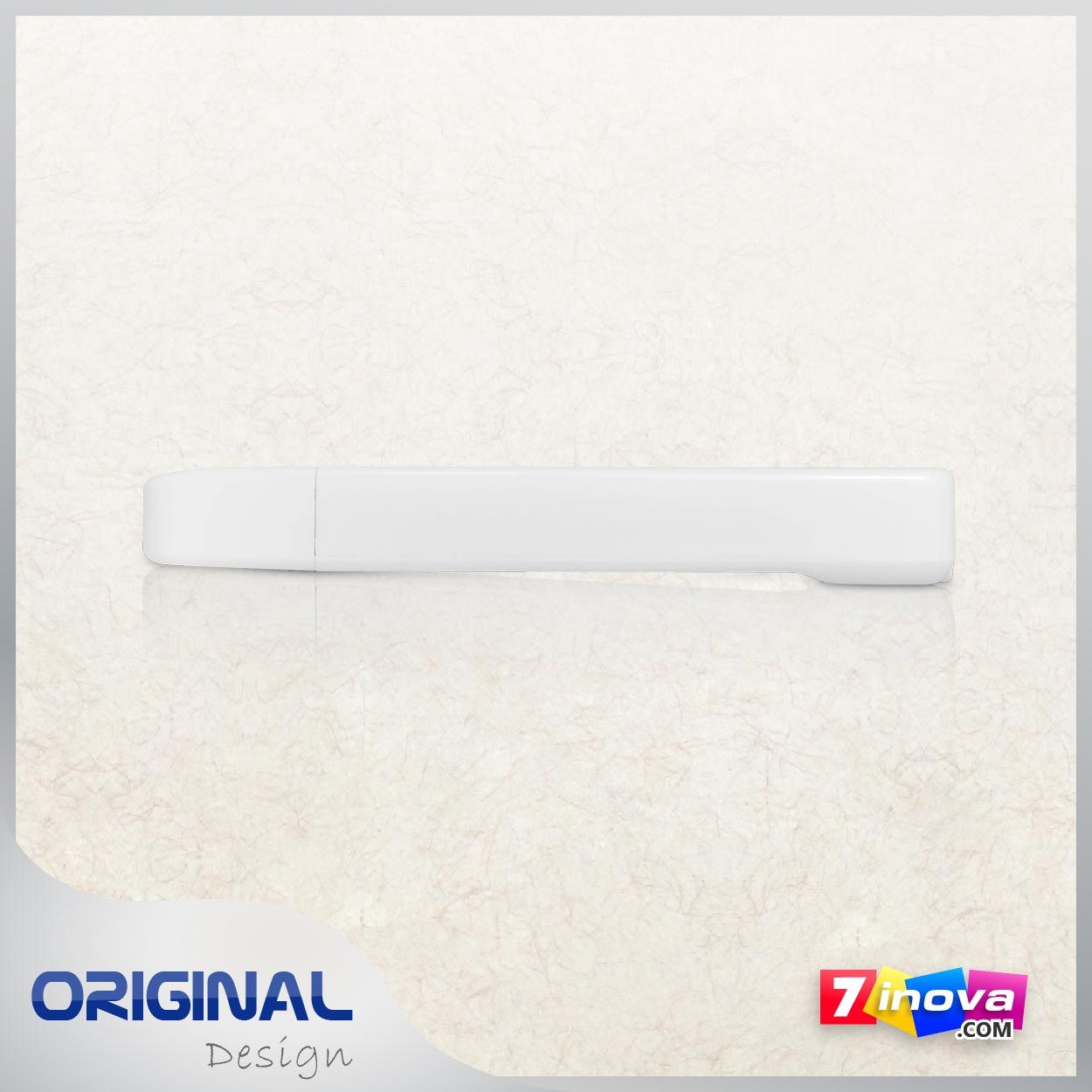

Portable wireless 3G router with WIFI
7inova 7R300 portable wireless-N 3G router nano works in AP,Client and Router three modes,fast switches among them by one simple push, providing an excellent solution for users various network need with speed up to 150Mbps.Moreover,through its supported WDS function,users can extend wireless signal in wider coverage range.
7inova 7R300 wireless-N 3G router meets IEEE802.11n standard,compliable with 802.11b/g,
Equipped with strong filtering and secure prevent attack feature such as WEP encryption,WPA WPA2 802.1X,also its MAC address filtering,one button WPS,and SSID hide features can ensure your network more secure and stable.
7inova 7R300 wireless-N 3G router nano designs in exquisite,compact shape,with its strong functions,makes it an ideal choice for business people to access wireless network everywhere.
Features:
-Embedded Standard USB2.0port,7R300 easily converts 3G network to WIFI signal,multi users can share 3G wireless network sametime;
- Switch freely among ROUTER,CLIENT,AP three modes,choose your wanted network environment;
-Supports IEEE802.11b/g/n 2.4GHz,Advanced Wireless-N technology deliver speed up to 150Mbps;
- Provide a LAN / WAN interface, it automatically switched to WAN port under Wireless router mode;
- Support one button WPS encryption, simply secure your Wi-Fi network, prevent potential attacks from across the Internet;
-Automatic wireless hot spots scan,Multi-SSID detection,WDS and relay;
-With advanced features of QOS management,MAC address filtering,web page filtering and NAT address switch;
supply,Also can choose our optional USB car charger or wallmount charger accessories. (5V/1A)
- Multi functions in high integration,innovative compact shape,convenient to carry in tourism.
Technical Specifications:
Protocol/Standards: IIEEE802.11b/g, IEEE802.11n draft 2.0
IEEE 802.3 10/100, IEEE 802.3u
Modulation Technology:IEEE802.11b (DSSS)
· DBPSK : 1 Mbps; DQPSK : 2 Mbps; CCK : 5.5/11 Mbps
IEEE802.11g (OFDM/DSSS)
· BPSK : 6/9 Mbps; QPSK : 12/18 Mbps; QAM-16 : 24/36 Mbps; QAM-64 : 48/54 Mbps
IEEE802.11n (OFDM/DSSS) · BPSK; QPSKs QAM-16 ; QAM-64
Frequency Band: North America (FCC) : 2.412GHz~2.462GHz
Europe (ETSI) : 2.412GHz~2.472GHz
Japan (MKK) : 2.412GHz~2.472GHz
Network Support: 3G (UMTS) connectivity via a 3G USB Modem
PPPoE, DHCP and Static IP connectivity
MAC cloning support
IP/TCP/UDP/ICMP Application support
Network Address Translation (NAT)
Multi Range Port Forwarding
DHCP Server/client
DNS Relay
Dynamic DNS support
RF Power:12-15dBm
Power Requirement: Input Power : 5V @ 1A DC
Environmental: Operating Temperature: 0° to 40° Celsius
Storage Temperature : -25° to 70° Celsius
Operating Humidity :10% to 90% Relative Humidity (Non-Condensing)
Storage Humidity: 5% to 90% Relative Humidity (Non-Condensing)
Physical Information:
Casing Color: White
Physical Dimensions: L:97 x W:35 x D:13.8mm
LED Indicators:
- 1x Power On/Off LED status
- 1x WLAN activity LED status
- 1x WIFI activity LED status
Button:
-1x Button to press for WPS and for a reset to return to initial configuration
Antenna:
-Built-in intelligent omnidirectional antenna
Switch: RT/CLIENT/AP mode switch (To use 3G,please switch to RT mode first)
Interface:
-1x WLAN PORT
-1x USB2.0 port for Power
-1x USB2.0 port for 3G card
External Connectors/Cables:
-1x 1m Ethernet cable with RJ45 connector -white color
-1x Y-USB2.0 cable(2 male to 1 female)
-1x USB car charger(Optional)
-1x Wallmount charger with USB(Optional)
-1x string
