Product Specifications
| Prod Model: |
Hartip1800D/DL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Materials: |
10 Common Metal Materials |
| Hardness Scale: |
Hl/HRC/Hrb/Hb/Hv/Hs |
| Port: |
Beijing |
| Delivery: |
Within 3 Workdays Upon Receipt of Full Payment |
| Standard: |
ASTM |
| Application: |
Metal |
| Type: |
Leeb Hardness Tester |
| Measuring Range: |
HLD |
Product Description
More keywords: Hardness tester, portable hardness tester, Leeb hardness tester, metal hardness tester, HARTIP hardness tester, SADT hardness tester, universal hardness tester, durometer, digital hardness tester, integrated hardness tester, hardness tester China, hardness gauge, hardness equipment, metal inspecting equipment

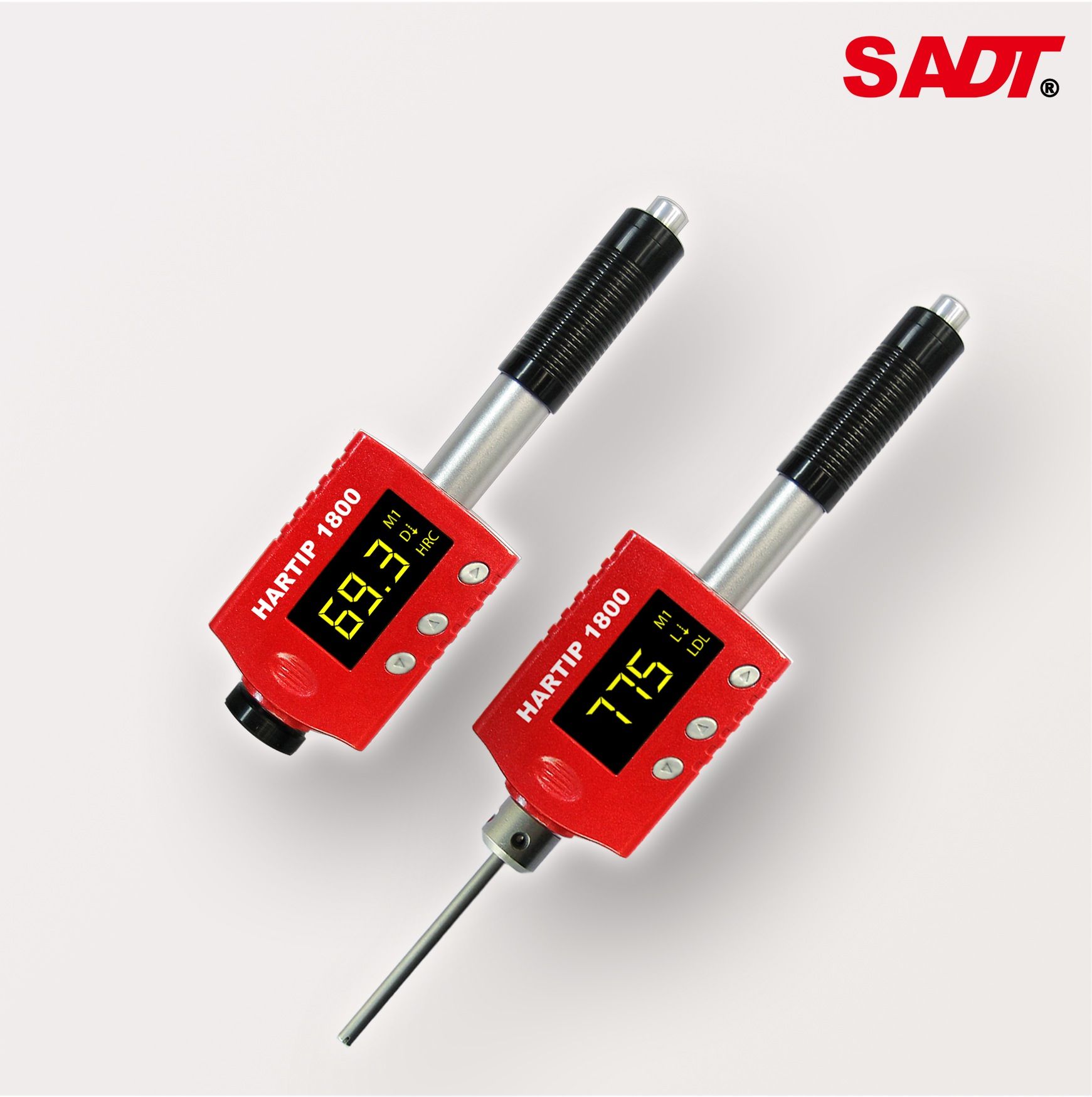

Portable Digital Hardness Tester HARTIP1800D/DL two-in-one probe
HARTIP1800 is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength.
HARTIP 1800 has a memory capacity of 400 blocks and 360, 000 data which can be download to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.
|
Model |
HARTIP 1800 D/DL |
|
Principle |
Leeb hardness measurement |
|
Accuracy |
+/-4HL(0.5%@HL=800) |
|
Display |
digital with high contrast LED |
|
Display mode |
Normal or flip |
|
Hardness scale |
HL/HRC/HRB/HB/HV/HS/σ b |
|
Measruing range |
HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 |
|
Impact device |
D (Internal)
D/DL 2-in-1 (Internal, optional) |
|
Materials |
10 common metal materials |
|
Memory |
360, 000 data in 400 blocks |
|
Statistics function |
Average / Max. / Min. / value |
|
Recalibration |
Allowed by user |
|
Interface |
USB for data transferring to PC and charging battery |
|
Indicator |
Low battery |
|
Power on/off |
Auto |
|
Power supply |
3.7v Li-ion rechargeable battery |
|
Working environment |
-40~+80° C |
|
Standard |
ASTM A956 |
|
Dimension (mm) |
148x44x22 |
|
Net weight (g) |
110 |
