Product Specifications
Prod Model: |
Leeb130 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Housing Material: |
Metal |
Memory: |
1250groups |
Display: |
LCD with Backlight |
Battery: |
2AAA |
Dimension: |
130*70*25mm |
Weight: |
230g |
Type: |
Leeb Hardness Tester |
Application: |
Metal |
Standard: |
ISO |
Measuring Range: |
Hl,HRC,Hrb,Hs,Hb,Hv |
Product Description

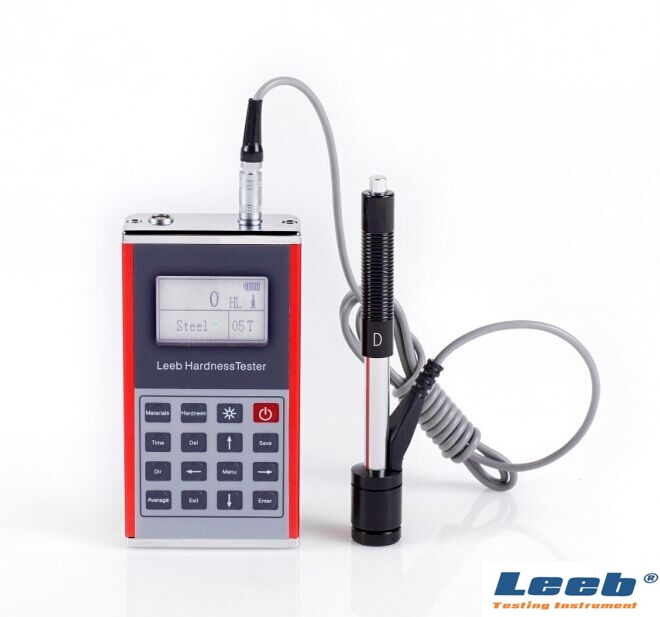

Portable Hardness Tester Leeb130
Functions & Features
1.On the basis of Leeb hardness measurement principle, can be used to detect a variety of metal materials, accurate measurement value stability
2.Instantly showing the hardness measurement, and can be used in different formats conversion between hardness of freedom
3.Can be configured to 8 different impact device, automatic identification device for impact type, replaced without the need to re-calibrate
4.Large screen LCD display, menu operation, information rich, intuitive
5.High brightness LED back-light, convenient in the dark.
6.Built in rapid thermal printer can print the measurement data, the scene immediately
7.Low power consumption: Auto sleep, automatic shutdown function of saving energy
8.Fully enclosed metal shell, strong anti-interference ability
9.Ordinary alkaline battery, standby time 150 hours, suitable for field operation
Application Fields
The bearings and other parts, heavy workpieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
Large workpiece within a wide range of more rapid test measurement site
Measuring Materials
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Technical Specification
Model | leeb130 |
Measuring Range | (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Hardness parameter | HL, HRC,HRB, HS,HB,HV |
Accuracy | Within±0.5%(HLD=760) |
Display | LCD with back-light |
Memory | 1250 groups |
PC Connection | Available |
Battery | 2AAA |
Operating Temperature | -20ºC~+60ºC |
Dimensions | 130×70×25mm |
Shell | Metal |
Impact Device Type | D,DC,DL,D+15,G,C,E |
Weight | 300g |

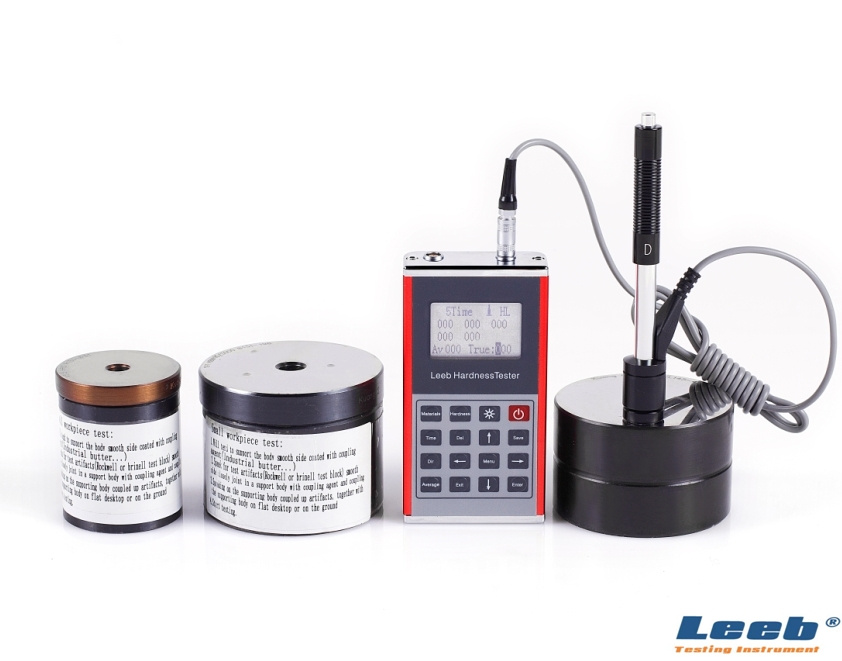

Standard Delivery | Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,High block and Certificate,Batteries,Test block with calibration certificate |
Optional Accessories | Impact DC,D+15,DL,G,C,E,Shaped support ring |
![](/proimages/44f3j00SEVtNglyZrbs/portable-digital-hardness-tester-leeb130-with-high-quality-metal-shell.jpg)
![](/proimages/44f3j00jtiEFIWZZrbK/portable-digital-hardness-tester-leeb130-with-high-quality-metal-shell.jpg)
