Product Specifications
| Prod Model: |
HD300-ETD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
450 Mm(W)×160 Mm(L)×200 Mm(H) |
| Power: |
< 300W |
| Net Weight: |
<5.5kg |
| Source: |
Vacuum Ultra Violet Ionization Source |
| Explosives Identify: |
a Variety of Military, Civilian, and Homemade Ex |
| Narcotics Identify (Optional Function): |
Drug, Cocaine, Opiates (Heroine and Morphine), C |
| Identity Speed: |
<8s |
Product Description

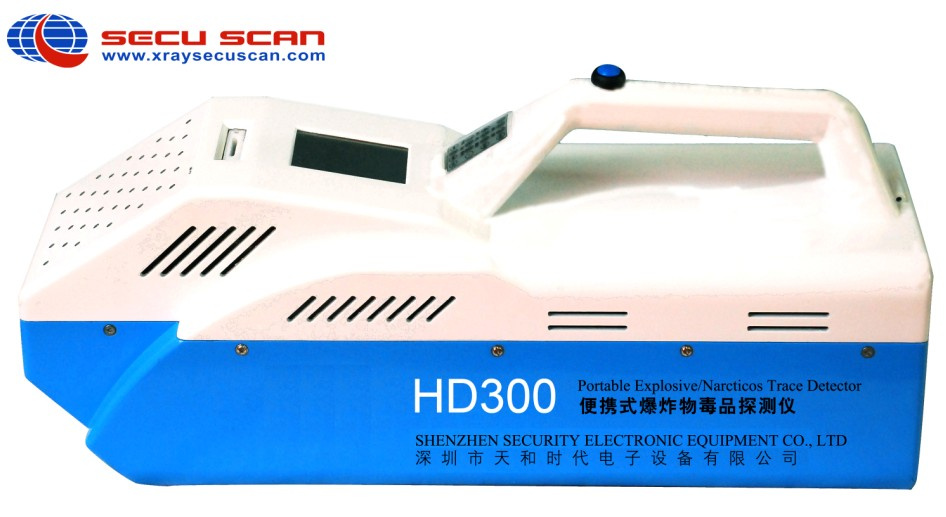

Portable Explosives Detectors Security Screening Device
Highlight Advantages of explosive trace detector:
1.High sensitivity: Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives.
2.High speed Indentify
3.VUV lamp soft ionization technique , non-radioactive
4.Advanced migration tube design ensures high resolution;
5.Automatic cleaning system can prevent inject pollution.
6.Renewable gas purification system
7.Database open to user, can add new type explosive
8.TFT color touch screen
9.Dipstick can be reused
10.Support network control and transfer
11.Unlimited Storage, USB port to output data.
12.Minimum 1000 Retrievable Data Records.
13.Battery Backup Time: More than 6 hours
---------------------------------------------------------------------------------------------------------------------------------------------
| Source | Vacuum Ultra Violet ionization source. |
| Explosives indentify | A variety of military , civilian , and homemade explosives: Black Powder, AN, TNT, DNT, Tetry, PETN, Gun Power, NG, RDX, fireworks, C4 , taggants , TAIP, Nitrates, etc. |
| Sampling | dipstick tracking trace particles,
and absorber |
| Databases | open to user, can add new type explosive |
| Alarm | Sound / light |
| Sensitivity | Mix: Nanogram explosives, even pictogram sulfur |
| Sensitivity limit | 1 Nanogram TNT |
| Identify speed | < 8 seconds |
| Decontamination time | < 6 seconds |
| Warm-up time | < 20 minutes |
| False alarm rate | ≤ 1% |
| Display | TFT color touch screen |
| Consumption | < 300W |
| Power | AC220V 50Hz |
| Operating temperature | -10°C ~ 55°C |
| Net weight | <5.5KG |
-----------------------------------------------------------------------------------------------------------------------------------------------
Application of explosive trace detector:
Airport, Train Station, Coach Station, etc.
Defence Security
Public Safety
