Portable Leeb Hardness Tester (HARTIP2000D/DL two-in-one probe))

Product Specifications

Prod Model:	HARTIP2000D/DL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Gross Weight:	4.5kg
Type:	Leeb Hardness Tester
Measuring Range:	HLD
Application:	Metal
Standard:	ISO

Product Description

HARTIP 2000D/DL is an innovative portable Leeb hardness tester with our new patent technology which makes HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method. HARTIP 2000 is also a cost saving hardnss tester and has many other features.

It can recognize impact direction automatically, it does not need to adjust different impact direction by hand when testing, avoid man made error
High accuracy: +/-2HL( or 0.3% @HL800)
Dual values(Leeb value and one conversion value) can be displayed at the same screen
Big LCD display with backlight

Ten testing materials including forged steel
It has strength conversion value
Bluetooth microprinter ( optional)
300 data for memory
Customer re-calibration allowed
Power on/off automatically
More economic and more convenient to use.

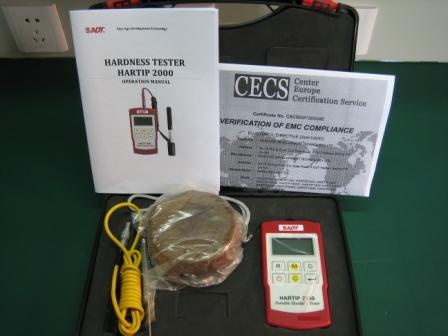

Packed in water-proof and rigid carrying case

Specifications



Model	HARTIP 2000/HARTIP2000 DL
Principle	Leeb hardness measurement
Accuracy	±0.3% @ HL=800, Repeatability: ±2HL
Display	Digital LCD with backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS/σb
Measuring range	HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5
Impact device	D / D-DL 2-in-1 (External)
Impact direction	Universal angle type
Materials	11 common metal materials
Memory	300 data can be stored and re-readable
Statistics function	Calculated automatically
Recalibration	Allowed by user
Interface	Bluetooth / RS232 to Micro-printer
Indicator	Low battery
Power off	Auto
Power supply	1.5V AA alkaline battery x 2
Working environment	-10~+40ºC
Standard	Conforming to ASTM A956
Dimension (mm)	124x67x30
Net weight (g)	240

Model	HARTIP 2000 D/DL
Principle	Leeb hardness measurement
Accuracy	± 0.3% @ HL=800, Repeatability: ± 2HL
Display	Digital LCD with backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS/σ b
Measuring range	HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5
Impact device	DU (External)/  Two-in-one DL probe
Impact direction	Universal angle type
Materials	10 common metal materials
Memory	300 data can be stored and re-readable
Statistics function	Calculated automaticly
Recalibration	Allowed by user
Interface	Bluetooth printer ( optional)
Indicator	Low battery
Power off	Auto
Power supply	1.5V AA alkaline battery x 2
Working environment	-10~+40º C
Standard	Conforming to ASTM A956
Dimension (mm)	124x67x30
Net weight (g)	240
