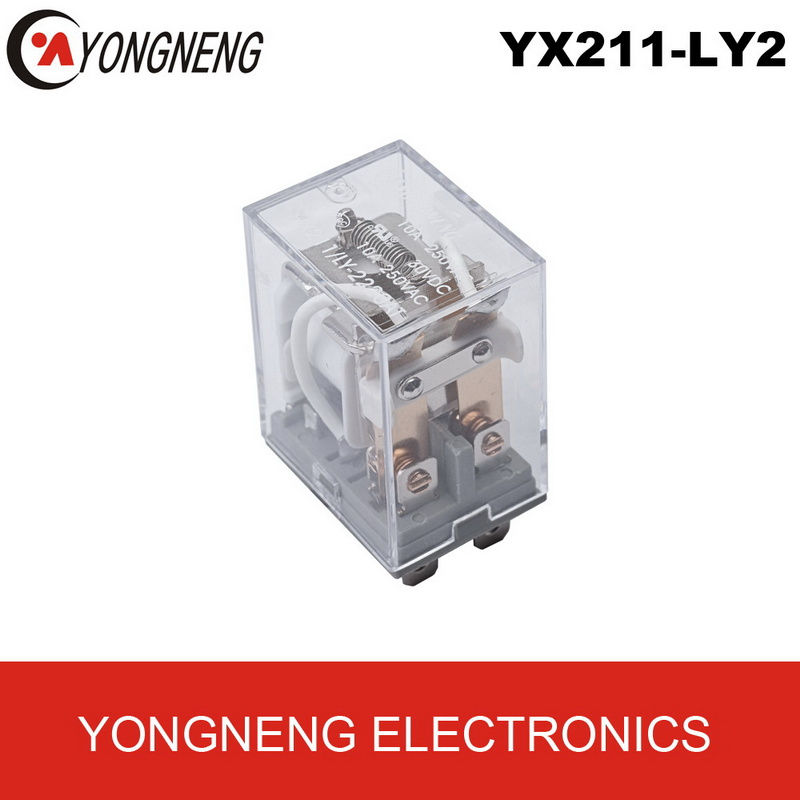

Powe Relay 10A (YX211/LY2, 3, 4)

Name: Powe Relay 10A (YX211/LY2, 3, 4)
Brand: china-manufacturer-directory.com
SKU: 708096385
Availability: InStock
Rating: 4.8 (66 reviews)

Supplier:	Dongguan Yongneng Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,EXW,DAP

Product Specifications

Prod Model:	YX211/LY2, 3, 4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Household Appliances Relay
Theory:	Electromagnetic Relay
Type:	Electric Parameter Relay
Size:	Miniature
Number Of Pole:	1
Electricity Type:	AC/DC

Product Description

Power Relay
General Purpose Relay
YX211/LY2, 3, 4

Typical Application: Widely used on automatic vending machine, household appliance for cooking, office equipment, control equipment etc.

Power Relay
General Purpose Power Relay (YX211/LY2,3,4)
Contact Data
Model No.	YX211/LY 2, 3, 4
Contact Arrangement	2a;2c/3a; 3c/4a/4c
Contact Resistance	50mΩ MAX.
Contact material	Silver Alloy
Contact Rating (Resistive Load)	10A 250VAC/30VDC
Max.Switching Current	10A
Max.Switching Voltage	250VAC/30VDC
Max.Switching Power	2500VAC/300W
Mechanical Endurance	10000000 Ops
Electrical Endurance	100000 Ops;

Coil Data
Nominal Coil Voltage (VDC)	6,12,24,48;110
Nominal Operating Power	0.9W, 1.6W,1.5W

Characteristics
Operate Time	25ms Max.
Release Time	25ms Max.
Insulation Resistance	500MΩ Max.(500VDC)
Dielectirc Strength	between open contacts: 1000VAC, 50/60Hz 1Min. between coil&contacts: 1500VAC, 50/60Hz 1Min.
Vibration Resistance	Destructive: 10-55HZ, Double amplitude of 1.5mm Functional: 10-55HZ, Double amplitude of 1.5mm
Shock Resistance	Functional: 10G Min. Destructive: 100G Min.
Ambient Temperature	-20C-55C (Not Condensing)
Weight	Approx.32.0g(1C, 2C); 50.6g(3C); 65.5g(4C)

Dongguan Yongneng Electronics Co., Ltd, located in Dongguan city, China, is specialized in research & development, manufacturing and sales of various kinds of relays which are widely used in telecommunication, household appliances, automobile, industrial control, home automation, machinery, pre-paid electricity meters etc.Through more than 10 years of unswerving effort and long-term customer support and trust, we have become one of leading industries in relay.We successfully passed ISO 9001:2008 audit, and can meet EU RoHS directive testing requirements as well.Our products are certified by such safety approvals as UL, CE, TUV, CQC etc.Our reliable quality, good technical service and cost-efficiency have been widely recognized and highly appreciated by our customers from home and abroad.

Automatic production lines have been set up for coil winding, pin insertion, terminal, armature and core assembling, protective construction and soldering.Manual testing, automatic WIP inspection and final overall inspection have been conducted to make sure that all finished products are within specification.

We revolve around our business principle of "technical innovation, excellent quality, rigorous management, sustainable development" in all aspects, we stick to the philosophy of " Human oriented, customer foremost" and make unswerving effort to provide customer with better products and more efficient service.With our advantage of good management mode, market-oriented effort and down-to-earth work style, we firmly believe we will usher in substantial growth and win-win situation with our customers.
