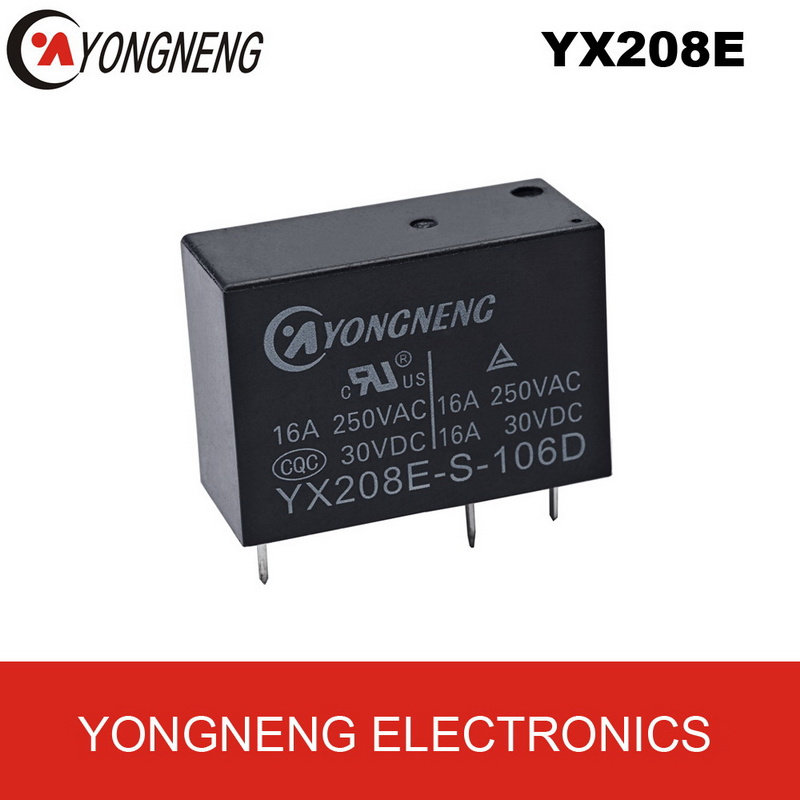

Model Name: Power Relay
Model No.: YX208E
Size: 29.2× 12.8× 20.6 mm
Contact Arrangement: 1A; 1c
Contact Capacity (Resistive Load): 16A 250VAC/ 30VDC
Coil Power: 0.54W; 0.72W
Coil Voltage: 3-48VDC
Mounting Method: PCB
Typical Application:
Household appliance, air conditione, microwave oven, audio device, screen, industry control, meter and instrument.
|
Power Relay |
|
|
General Purpose Power Relay (YX208E) |
|
Contact Data |
|
|
Model No. |
YX208E |
|
Contact Arrangement |
1a; 1c |
|
Contact Resistance |
50mΩ MAX. |
|
Contact material |
Silver Alloy |
|
Contact Rating (Resistive Load) |
16A 250VAC/16A 30VDC |
|
Max.Switching Current |
20A |
|
Max.Switching Voltage |
250VAC/30VDC |
|
Max.Switching Power |
4000VAC/480W |
|
Mechanical Endurance |
10000000 Ops |
|
Electrical Endurance |
100000 Ops; |
|
|
|
|
Coil Data |
|
|
Nominal Coil Voltage (VDC) |
3,5,6,9,12,18,24,48 |
|
Nominal Operating Power |
0.54W,0.72W, |
|
|
|
|
Characteristics |
|
|
Operate Time |
YX208E-D:15ms Max.; YX208E-L: 20ms MAX. |
|
Release Time |
8ms Max. |
|
Insulation Resistance |
1000MΩ Max.(500VDC) |
|
Dielectirc Strength |
between open contacts: 1000VAC, 50/60Hz 1Min.
between coil&contacts: 5000VAC, 50/60Hz 1Min. |
|
Vibration Resistance |
Destructive: 10-55HZ, Double amplitude of 1.5mm
Functional: 10-55HZ, Double amplitude of 1.5mm |
|
Shock Resistance |
Functional: 10G Min.
Destructive: 100G Min. |
|
Ambient Temperature |
-40C-85C (Not Condensing) |
|
Weight |
Approx.14.2g |
