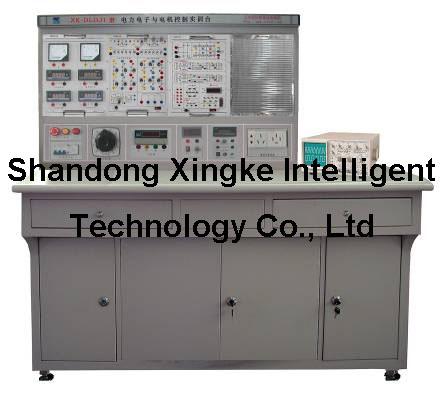

XK-DLDJ1 Power Electronics and Motor control Training Device
1. System overview
XK-DLDJ1 power electronics and motor control training device can be as many courses training equipment, such as"power electronics technology", "dc speed regulating ""AC speed regulating""motor driving"etc.
2. Technical parameters
2.1dimension: 1700mm× 700mm× 1400mm
2.2 power supply
1)three-phase five-wire(or three-phase four-wire) 380V± 5% 50Hz
2)power source indication, power supply indication
3)ground protection
4)leakage protection
5)over-current protection
6)security feature conform to relative government standard.
2.3 experiment power supply
1)AC power supply: Three-phase0~450V adjustable AC power supply, single-phase0~250V adjustable AC power supply
2)armature power supply: 0~250V, 3A continuously adjustable
3)field power supply: 220V, 0.5A
4)adjustable DC voltage signal source1.25~30V two path
5)DC regulated power supply positive and negative 15V: One path in each
6)spare socket AC220 two path
2.4 instrument
1) AC digital voltmeter liquid crystal display measuring range AC500V 0.5 grade
2) DC digital voltmeter liquid crystal display measuring range DC500V 0.5 grade
3) AC digital ampere meter digital display measuring range 2A
4) DC digital ampere meter digital display measuring range 2A
5) digital tachometer digital display measuring range 3000rpm
6)digital power meter digital display measuring range 1KW
3. Experiment training project
