Power Supply AC DC for Single Output 60W 5V 9V 12V 15V 24V
Price: |
NegotiableUSD |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |

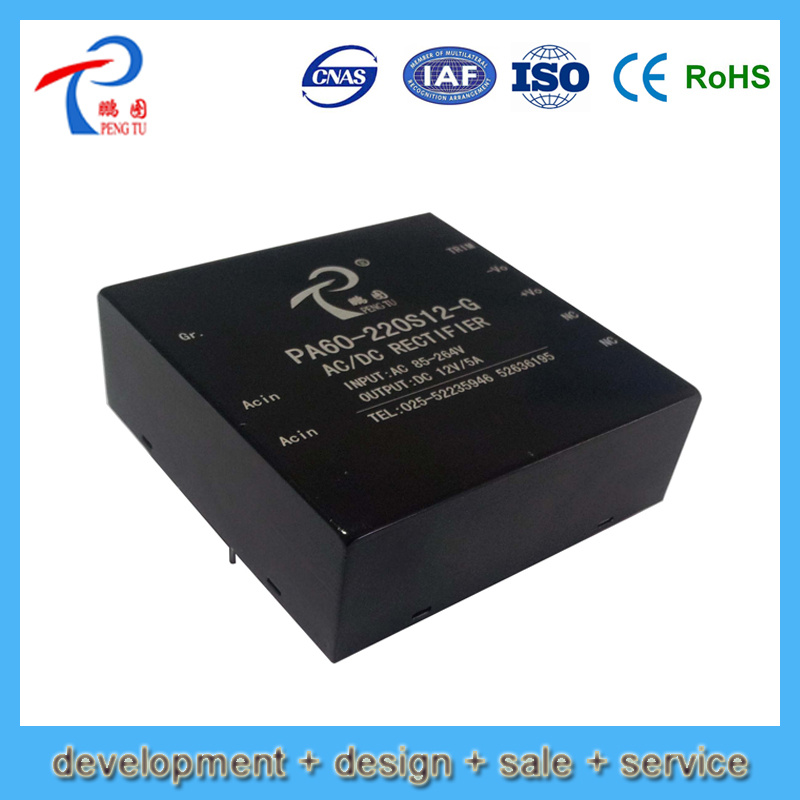

PA-G Series Power supply AC DC for Single Output 60W 5V 9V 12V 15V 24V Product Description
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range............85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy ..........................±2%
l Line regulation(main) .................±0.2%
l Load regulation(main) ......….......…±0.4%
l Temperature coefficient ..............…±0.01%/ºC
l Output current limiting ...............… 120%(Typ)
l Dynamic response ............… 400μs
l Output current ...............… 2.5-12A
l Output voltage ...............… 5-48VDC
l Power ..................... 60W
General Characteristic
l Switching frequency ............ 50-100 KHz
l Isolation resistance ............ 200 MΩ
l MTBF ..................… >500000H
l Isolation voltage
Input-output:>2000 VAC/Min (Leakage current<5mA)
Input-case: >2000 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
l Environmental Characteristic
Case temperature ............ Industry: -25-+85ºC
Storage temperature ........... Industry: -45~ +105ºC

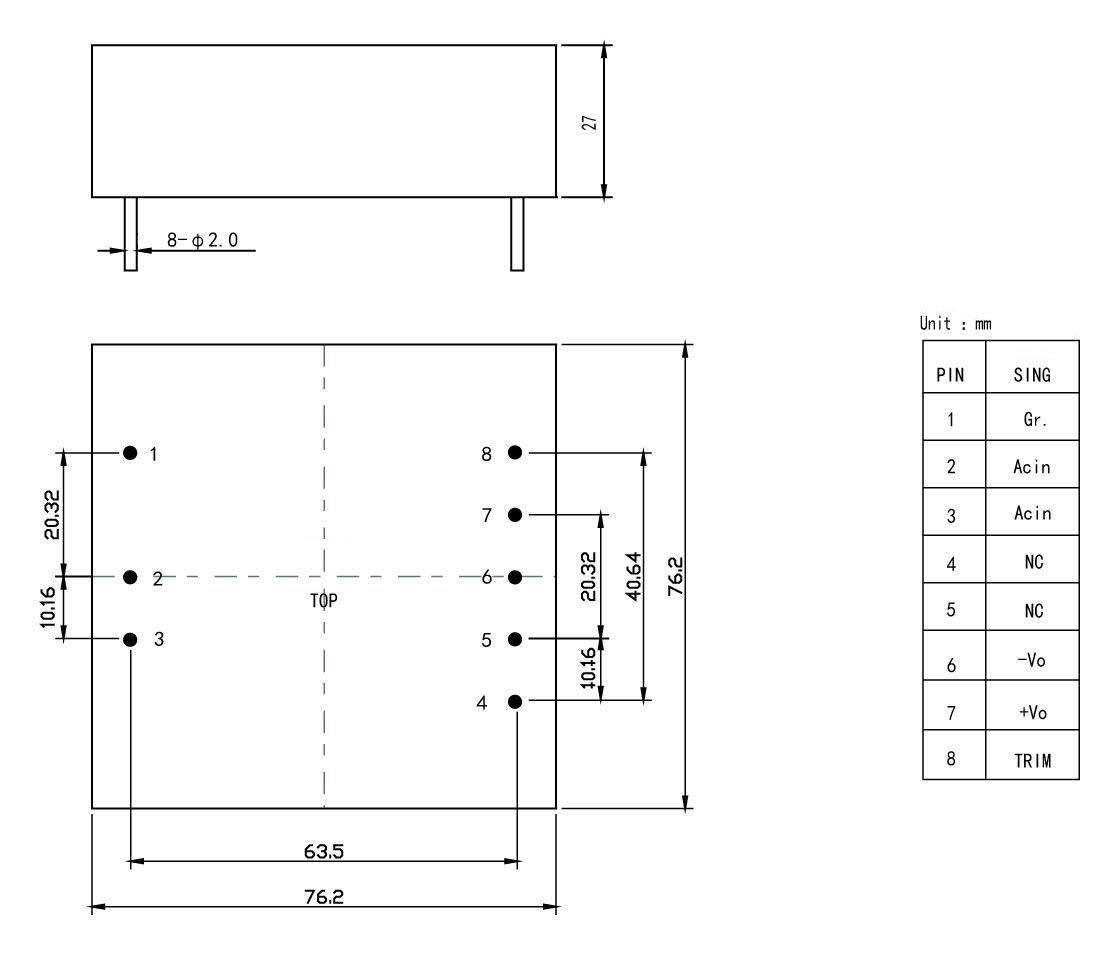

Mechanical drawing and pin definitionCompany information
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid service.
If you want to know more information ,pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
PA-G Seires Normal Models
Remark: Custom-made specifications are acceptable.
Model |
Output Lines |
Input V. (V) |
Input V. Range (V) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (Typ) |
PA-G Series 60W |
PA60-220S05-G |
Single |
220 |
85-264 |
5 |
12 |
50 |
80% |
PA60-220S09-G |
220 |
85-264 |
9 |
6.66 |
50 |
84% |
PA60-220S12-G |
220 |
85-264 |
12 |
5 |
100 |
86% |
PA60-220S15-G |
220 |
85-264 |
15 |
4 |
120 |
86% |
PA60-220S24-G |
220 |
85-264 |
24 |
2.5 |
150 |
87% |
Prod Model: |
PA-G Series 60W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input Voltge Range: |
85~264VAC |
Safety Regulation: |
UL1950,IEC950 |
Size: |
76.2*76.2*27mm |
Output Type: |
Single |
Input Voltage: |
220V |
Voltage Regulating Mode: |
Width Modulation Type |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Warranty: |
2 Years |
Power Supplying System: |
Terminal Power Distribution Equipment |
Certification: |
ISO |
Output Power: |
60W |
Brand: |
Pengtu |
