Product Specifications
| Prod Model: |
AC GUARD 16AMP,20AMP & 25AMP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Power Voltage Protector |
| Operation: |
Electric Type |
| Speed: |
Power Voltage Protector |
| Arc-extinguishing Medium: |
Power Voltage Protector |
| Function: |
OVP(Overvoltage Protection) |
| Type: |
Power Protector |
| Structure: |
Power Voltage Protector |
| Installation: |
Fixed |
Product Description

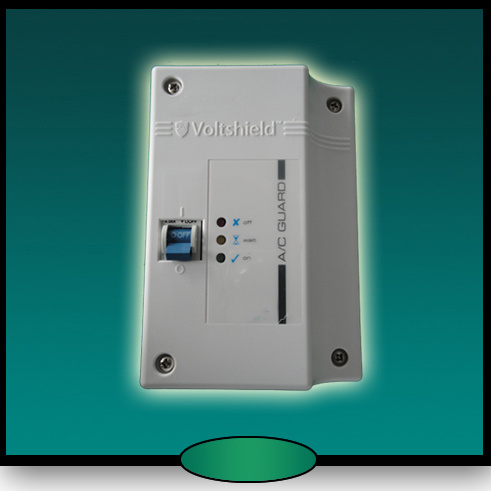

A/C Guard
1)Automatic protection against: Low, High voltage, spikes and surges
2)Intelligent time delay, protection against power back surges
3)Circuit breaker, protection against short circuit and over-load
4)Single phase, direct wiring for extra security
5)Available in 16A, 20A and 25A
Specifications:
Max power: 16, 20 or 25 AMPS
Wait time: 4 minutes intelligent time delay
Ideal for: Air conditioners, large freezers
Tips: Rated at up to 25A for use with air conditioners up to 44, 000BTU
Direct wiring adds security for installation
Weight: 400gm
Dims: 140 x 90 x 78 mm
Appliances such as air conditioning and refrigeration units are particularly vulnerable to damage caused by low voltage 'brownouts'. With the A/C Guard, your equipment is protected against all power fluctuations: Over-voltage as well as low voltage, spikes, surges, power back surges and power fluctuations.
Part of Sollatek's highly versatile Voltshield Range which uses the Sollatek Switcher technology, the A/C Guard switches off the air-conditioner instantly when a power problem occurs, reconnecting it only once the mains supply has stabilised.
Simple installation complete peace of mind
The A/C Guard is easily installed by an electrician and suitable for use with all air-conditioners, including split units, as well as industrial refrigeration equipment. Once it has been directly wired between the mains and your appliance, the A/C Guard provides complete protection automatically. Choose between 16, 20 or 25AMP models to match the rating of your air conditioner or load.
Sophisticated protection
The A/C Guard's Automatic Voltage Switcher functions protect against Low voltage, high voltage, power-back surges, power fluctuations and surges/ spikes. It features a start up delay of about 4 minutes to prevent frequent switching on and off during fluctuations. The A/C Guard has a built-in microprocessor which adds the advanced feature TimeSave™ To save on down time. TimeSave™ Means that when the mains returns to normal after any event, the A/C Guard checks the duration of the OFF time. If the unit has been off for more than 4 minutes then it will switch the air-conditioner on within 10 seconds rather than the standard 4 minutes. If however, the unit has been off for less than 4 minutes, the A/C Guard will ensure that it will remain off up to 4 minutes and then restarts automatically.
Circuit breaker function
An integral circuit breaker enhances the protection offered by the A/C Guard. If a short circuit or over-load occurs, the circuit breaker detects the fault and the air conditioner is safely disconnected. To resume operation, simply switch the A/C Guard circuit breaker on again, assuming the cause of the overload has been removed. The air conditioner will restart automatically after an intelligent time delay
