Product Specifications
| Prod Model: |
ZSF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
ZSSP-300/10 |
| Type: |
Transformer |
Product Description

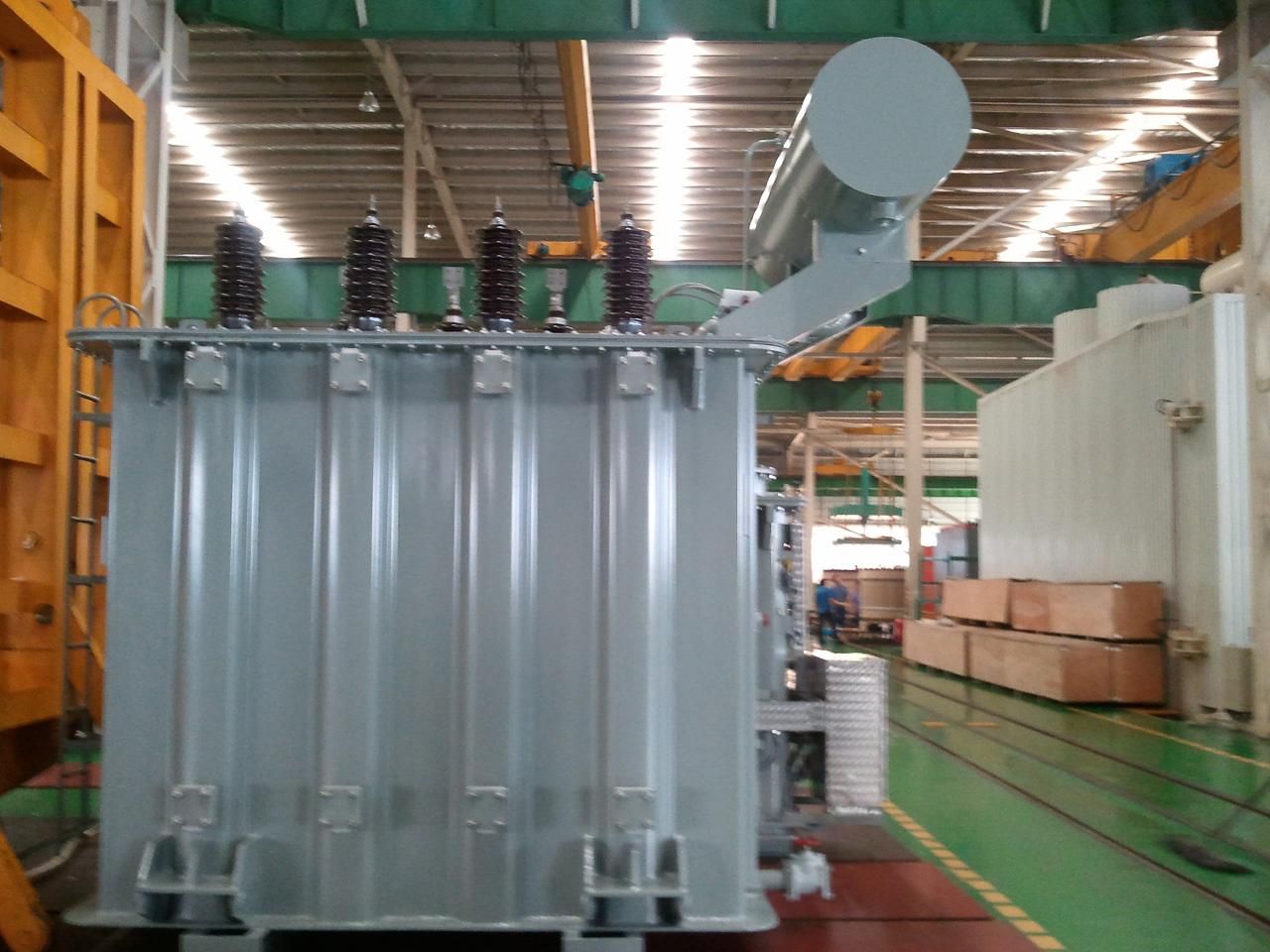

The detailed discription of our rectifier transformer:
Main Function and Features:
They are widely used in electrolysis, electrochemical, driving, tratic de-dusting, DC power transmission fields where rectification power source is necessary. A rectiformer is used for power supply of rectifying devices, most industrial DC power sources is transformed from an AC network via rectifying devices consisting of a rectiformer and a rectifier. It is widely used in electrolysis, electrochemical, traction, driving, DC transmission, frequency conversion and rectified power source fields. According to user's requirements, the secondary winding phase difference can be designed to 30'', 15'', 7.5'', for rectification of 6-phase, 12-phase, 24-phase and 48-phase.
A Model of A Rectiformer Consists of Following Codes:
1. Meaning: ZH--electrochemical electrolysis
ZQ--traction
ZS--driving
ZZ--DC transmission
ZP--AC frequency
ZB--General Industry
2. Number of phases of line side: D--Single phase, S-Three phase
3. External Insulating Medium of Winding: Transformer Oil, Air(dry-type)G
4. Type of Cooling Device: Natural Cooling, Air Cooling F, Water Cooling S
5. Way of Oil Circulations: Natural Circulation, Force Oil Circulation P
6. Way of voltage regulation: No-excitation regulation or without voltage regulation, load ration voltage regulation by line side winding Z loading ration regulation by buil-in vantran or by series regulating transformer T, regulation by self saturating reactor B
7. Built-in Accessories: Without built-in accessories, Balance reactor K, Saturated reactor HK.
Shanghai Electrical Machinery Group Import & Export Co., Ltd. is the largest manufacturing and export base for small & medium-sized electric Machines in China. Founded in February 1956, as China's first specialized electric machine company, SEMC is now one of the national first-class big enterprise which has the right to deal with foreign trade of itself.
SEMC at present owns 25 factories and one science & education center (including a research institute and a vocational college) in which there are 16 state enterprise, 4 joint ventures and 5 collective enterprises, occupying a total area of 615, 000m³ With the floor space of 529, 000m² And the original valuse of fixed assets being RMB yuan 518 million. SEMC has 18, 000 employees, among whcih are 1, 422 technicians and engineers and 1, 719 administrative personnel, making up almost 7, 9% and 9.5% of the total staff members respectively.
SEMC has a long history, whose most factories have seventy or eightyyear's manufacturing experience. It has formed a huge family of products with 22 categories, 390 series and over 8, 000 specifications. Besides, the company produces lots of hi-tech products such as accelerator, driving mechanism for nuclear power station and so on. It boasts diversified products and its products have not only been sold and well received in domestic marker, but also in 69 countries and regions such as USA, Japan, Russia, France, Germany, etc. SEMC has established broad business links with many world-famous companies.
SEMC warmly welcomes both domestic and foreign customers to establish and develop business relationships and will assure you of the quality products and satisfactory services.
