Changzhou Worldmark Machinery Co., Ltd. >> PP Injection Moulding Machine, Plastics Injection Molding Machinery

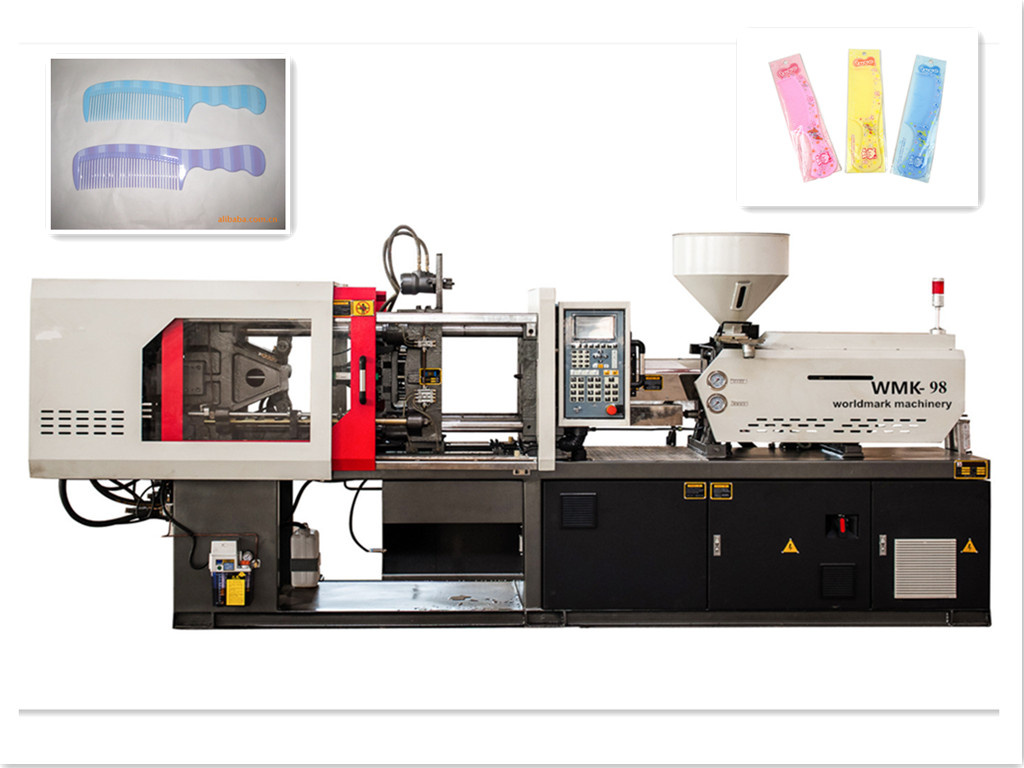

PP Injection Moulding Machine, Plastics Injection Molding Machinery

Name: PP Injection Moulding Machine, Plastics Injection Molding Machinery
Brand: China-Manufacturer-Directory.com
SKU: 689645962
Availability: InStock
Rating: 4.3 (105 reviews)

Supplier:	Changzhou Worldmark Machinery Co., Ltd.
Price:	US $ 39000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	wmk-320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force:	3200kn
Pump Motor Powder:	30kw
Machine Dimension(LWH):	6.151.572m
Machine Weight:	10.2t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Type:	Injection Molding

Product Description

320 Ton Basket Energy Saving Plastic Injection Molding Machine
Product Description
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-320
		Unit	A	B	C
	Screw Diameter	Mm	60	67	70
	Screw L/D Ratio	L/D	21.6	19.8	18.6
	Short Size	Cm3	918	1145	1250
	Injection weight	G	830	1030	1136
	Injection Rate	g/s	177	206	239
	Plasticizing capacity	g/s	41	49	57
	Injection Pressure	Mpa	193	158	142
	Screw Speed	Rpm	0-185
CLAMPING UNIT	Clamp Force	KN	3200
	Space Between Tie Bars	mm	630*630
	Toggle Stroke	mm	590
	Max. Mold Height	mm	630
	Min. Mold Height	mm	200
	Ejector Stroke	mm	160
	Ejector Tonnage	KN	62
	Ejector Number	P	9
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	30
	Heater Power	Kw	18
	Machine Dimension(LWH)	M	6.151.572
	Oil Tank Capacity	L	650
	Machine Weight	T	10.2

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
