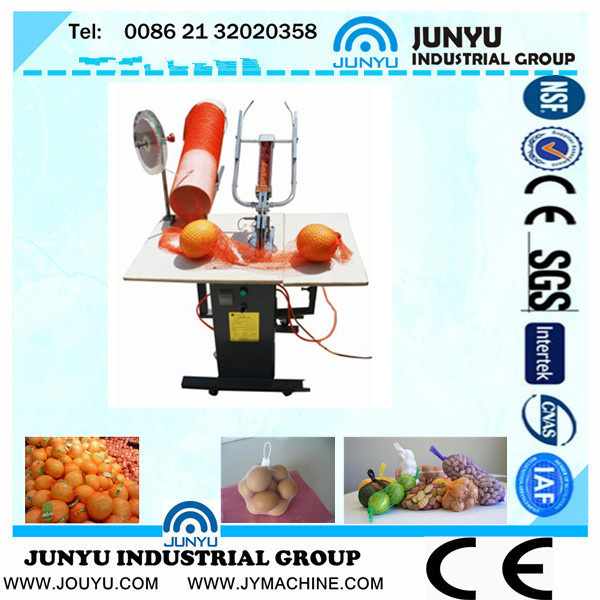

Mesh bag packing machine
A. Specifications
1. Voltage: 220V 50/60Hz
2. Transport height: 2000mm
3. Transport width: 400mm
4. Conveyor height: 1000mm
5. Motor power: 0.75kw
6. Chain plate material; PU network chain
7. Foot support: Smooth, adjustable up and down.
B. Main Description
1. Power supply: 380V/AC 50Hz three phase + neutral line
2. Installed power: 2.6kw
3. Output: Up to 35 bpm (depending on the product and size of the bag)
4. Minimum air pressure: 6 bar
5. Average air consumption: 1.5m3/h
6. Weight of the dose: 0.5KG— 5KG
7. Size of the net into the tube: 200m
8. Machine size: 1840L X 720W X 2010H (MM)
9. Packing size: 1600L X 1100W X 2020H (MM)
10. Net weight: 425KG
11. Gross weight: 650KG
C. Main technical parameter
1. Main machine
2. One set of Forming mould
3. Code printer
4. Mitsu PLC control system
5. Willen touch screen
6. Panasonic servo system
7. Germany Shike photoelectric
D. Company introduction
Shanghai Junyu Industrial Group is a High-tech enterprise on the fermentation field, is the biggest and strongest comprehensive ability supplier for solvement of fermentation project. And she is also an industrial company with the manufacturing experience more than 30 years.
Shanghai Junyu Industrial Group adopts German advanced brewing technology and complies with domestic customers` requirements to design and manufacture micro beer brewing equipment. The production process is superior, easy operated and simple to learn and understand. The black beer, yellow beer, green beer, pure wheat beer and pure barley beer etc. These various pure taste beers produced by the equipment are deeply adored by customers. The micro-brewery equipment with production capacity 1000 to 5000 per year is especially a good choice for township enterprises, verge area enterprises, personal investment for setting up micro beer plant, draught beer plant and updating equipment in the beer plants. The products have been widely sold in China and exported to Europe, America, Africa, Asia etc. Which make us good reputation from our internal and external customers!
E. Advantages of us
Our engineer: Free direct the installation and operation of the equipments and train operators for customer.
Our machine: Safe and reliable, efficient and energy saving, easy operating.
Our delivery: In time with English operating instruction program.
Our after-sale service: Timely, professionally
| Packaging | The machine will be packed with fumigated wooden case. |
| Application | It is designed to pack fruits and vegetables as well as industrial products into netting sleeves which are closed at both ends by a metallic staple. At least, at one of the tops, is placed a labeling and identification system, which varies depending on the needs of the market to which the products is directed. |
| Features | 1\ Possibility of an automatic change of tube, controlled only by one motor.
2\ Net extraction through a sliding system with two gears: a slow for making the pack and a fast one for getting back the remaining net and returning to the start position.
3\ Very regular pack size.
4\ One-use strip band cassette which can be easily and rapidly changed.
5\ Control panel with easy and friendly use. |
| Technique specification | 1\ Power supply: 380V/AC 50HZ three phase + neutral line
2\ Installed power: 2.6kw
3\ Output: up to 30 bpm (suitable weighing machine has to be chosen)
4\ Minimum air pressure: 6 bar
5\ Average air consumption: 1.5m3/h
6\ Weight of the dose: 0.5KG_5KG
7\ Size of the net into the tube: 200m |
