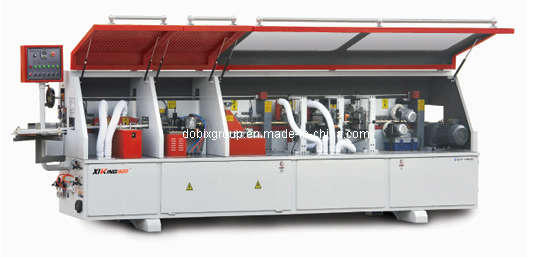

Edge banding machine
Edge banding machinery
Edge bander
Woodworking machine
The glue mechanism adopt a special structure to gelatinize the Plates and coating materials uniformly, ensure a
More solid conglutination.
End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency
Motor fast cutting structure to ensure the trimming plates smoothly.
Scraping unit for a perfect finising of the applied edge.
The buffing device adopt the board processed by cotton polishing wheel by end polishing to make a more smooth surface.
Grooving device grooves the front and rear parels directly to make the work more efficiently.
Our company is the top leading manufacturer of various of woodworking machinery in China. We have the different models of edge banders, edge banding machine, both automatically and semi-automatically with different prices. ISO9001 quality management system. CE certificate. Our aim is to be the No. 1 best manufacturer of woodworking machines in China.
Please contact us for more information, thanks.
|
The thinckness of edge banding tape |
0.5mm-3mm |
|
The width of edge banding tape |
12-45mm |
|
The feeding speed |
5-20m/min |
|
Feeding motor |
1.5kw frequency control |
|
Glue post motor |
0.37kw frequency control |
|
End cutting motor |
0.37kw× 2 frequency control 14000rmin |
|
Rough trimming motor |
0.7kw× 2 frequency control 18000r/min |
|
Fine trimming motor |
0.7kw× 2 frequency control 18000r/min |
|
Polishing motor |
0.18kw× 2 1400r/min |
|
Gule box heater |
2kw |
|
Air presses to side |
0.7mpa |
|
Total power |
8.3kw |
|
Overall size |
4800× 800× 1400mm |
|
Weight |
≈ 2100kg |
DOBIX Enterprises Group Inc. Limited ("DOBIX") is a group company listed at Top500 groups of China companies. We are a state run company since 1981 and now we have 4 separate branches, including DOBIX Group (Qingdao) Woodworking Machinery Manufacturing Co., Ltd, DOBIX Group healthcare and medical devices manufacturing Co., Ltd, DOBIX Group investments holdings Limited and DOBIX Group (HongKong) Limited. DOBIX absolutely is on the leading position on its fields.
In order to develop the domestic market and enlarge the international markets, DOBIX always believe the business principle of "Quality is our life" and we have got the ISO9001 International Quality System Certification, ISO14001 Environment System Certification, and OHSAS18001 Career Health and Safety Certification, and got the RoHS Environment-Friendly Product System Certificate in June 2006, and the products manufactured were certified by Chinese CCC standard, European CE standard, American UL standard etc. Customer's 100% satisfaction is our goal.
We look forward to working with every customer both in China and out of China.
