Product Specifications
| Prod Model: |
FZ526-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Wood Process and Matching Equipment |
Product Description

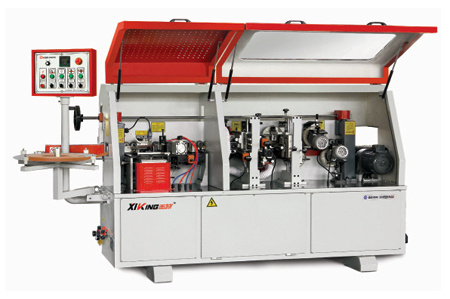

1. Edge banding machinery
Edge bander
Edge banding machine.
2. Functions:
Pre-heating on board, gluing, fine trimming, scrapping, buffing.
3. High speed, high frequency motor
4. Taiwan frequency inverter
5. Real manufacturer.
6. We have 12 years of producing experience;
7. Market share is 58% in China.
|
Thickness of rolling edge-banding belt |
0.4-3mm |
|
Height of rolling edge-banding belt |
12-55mm |
|
Work piece thickness |
10-50mm |
|
Air pressure |
0.7Mpa |
|
Compressed air usage |
0.3m 3 /min |
|
Power of accessorial heating device |
0.12kw |
|
Fine trimming motor |
0.7kw x 2 12000r/min 200Hz |
|
Buffing motor |
0.25kw x2 1400r/min 50Hz |
|
Heating power of glue tank |
2.42kw |
|
Work piece feeding motor |
1.5kw |
|
Total power |
5.6kw |
|
Machine overall size |
3200x900x1400mm |
|
Weight |
1000kg |
DOBIX Enterprises Group Inc. Limited ("DOBIX") is a group company listed at Top500 groups of China companies. We are a state run company since 1981 and now we have 4 separate branches, including DOBIX Group (Qingdao) Woodworking Machinery Manufacturing Co., Ltd, DOBIX Group healthcare and medical devices manufacturing Co., Ltd, DOBIX Group investments holdings Limited and DOBIX Group (HongKong) Limited. DOBIX absolutely is on the leading position on its fields.
In order to develop the domestic market and enlarge the international markets, DOBIX always believe the business principle of "Quality is our life" and we have got the ISO9001 International Quality System Certification, ISO14001 Environment System Certification, and OHSAS18001 Career Health and Safety Certification, and got the RoHS Environment-Friendly Product System Certificate in June 2006, and the products manufactured were certified by Chinese CCC standard, European CE standard, American UL standard etc. Customer's 100% satisfaction is our goal.
We look forward to working with every customer both in China and out of China.
