Product Specifications
| Prod Model: |
WC67K-160/3200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1600kn |
| Bolster Length: |
3200mm |
| Between Columns: |
2540mm |
| Throat Depth: |
330mm |
| Slide Stroke: |
200mm |
| Stroke Adjustment: |
150mm |
| Max. Shut Height: |
465mm |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Beading Machine |
Product Description

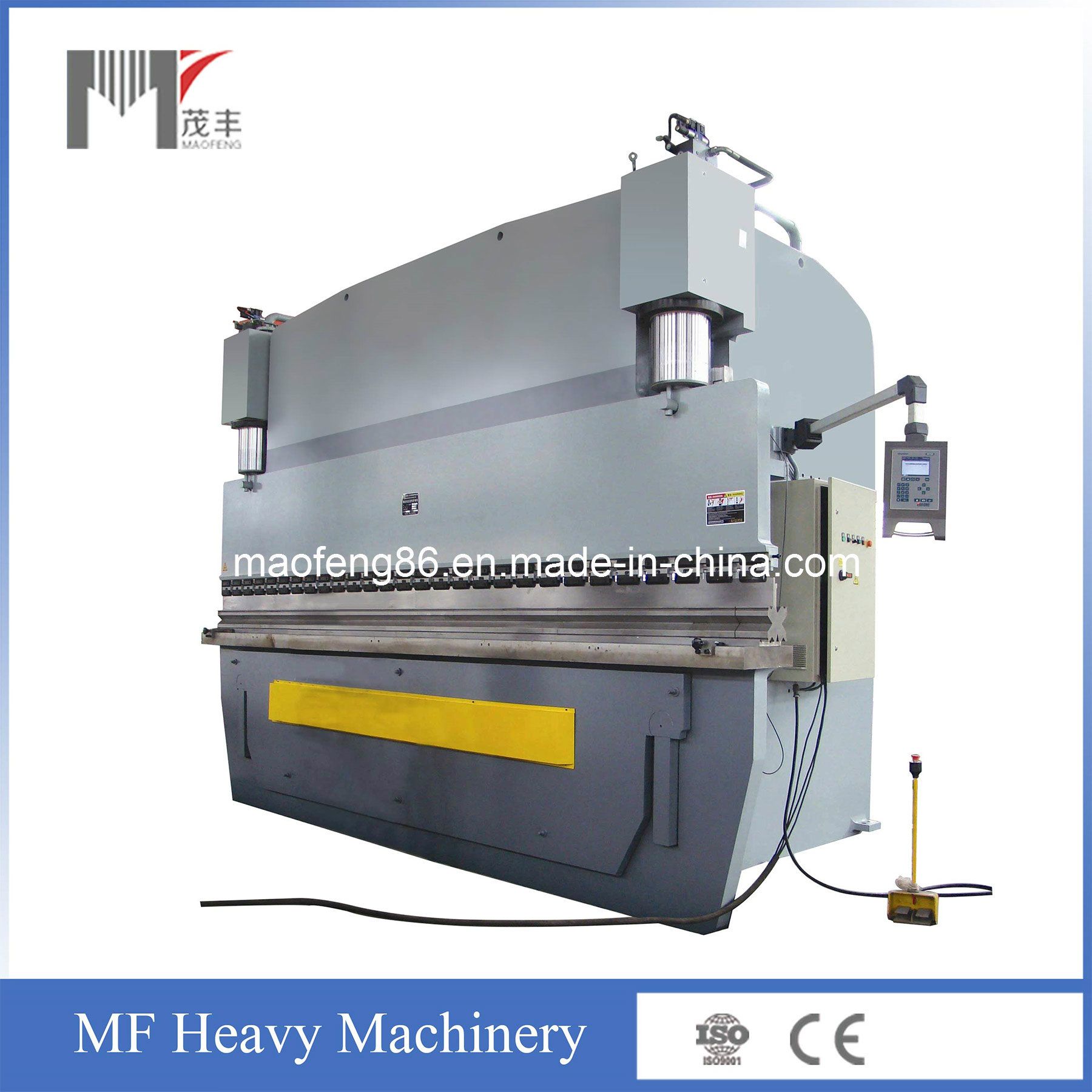

Hydraulic Press Brake, WC67Y series hydraulic press brake, plate bending machine, hydraulic bending machine
The frame is entirely welded with steel plates and treated to relive stress by tempering, so the percision is well maintained.
Hydraulic top-drive, step less pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision. (the convex structure for the table above 160T)
The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety. ( the back of 40T and above 200T without safe fence )
|
|
WC67K-160/2500 |
WC67K-160/3200 |
WC67K-160/4000 |
WC67K-160/6000 |
|
Capacity |
kN |
1600 |
1600 |
1600 |
1600 |
|
Bolster Length |
mm |
2500 |
3200 |
4000 |
6000 |
|
Between Columns |
mm |
1950 |
2540 |
3140 |
4800 |
|
Throat Depth |
mm |
330 |
330 |
330 |
330 |
|
Slide Stroke |
mm |
200 |
200 |
200 |
200 |
|
Stroke Adjustment |
mm |
150 |
150 |
150 |
150 |
|
Max. Shut Height |
mm |
465 |
465 |
465 |
465 |
|
SPM |
min-1 |
≥6 |
≥6 |
≥6 |
≥6 |
|
Main Motor Power |
kW |
11 |
11 |
11 |
11 |
|
Net Weight |
kg |
8900 |
9720 |
11160 |
18600 |
Outline Size
(L×W×H) |
mm |
3300×2225×2560 |
4100×2250×2560 |
4800×2250×2560 |
6400×2250×2960 |
