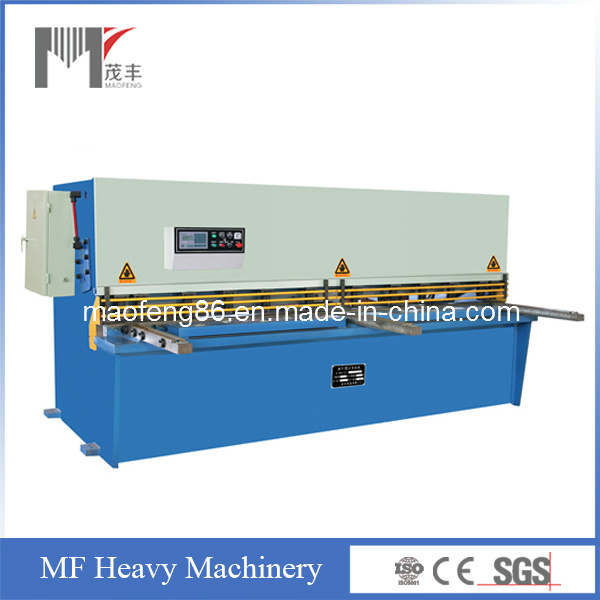

QC12y-8/3200 Folding Machine, Cutter Machine

Name: QC12y-8/3200 Folding Machine, Cutter Machine
Brand: China-Manufacturer-Directory.com
SKU: 737974495
Availability: InStock
Rating: 4.9 (101 reviews)

Supplier:	MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd.
Price:	US $ 100-80000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QC12Y-8/3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shearing Thickness:	8mm
Shearing Width:	3200mm
Throat Depth:	400mm
Back Gauge Adjustment:	20-600mm
Shear Angle:	1°30
Automation:	Automatic
Type For Cutting Machine:	Hydraulic Cutting Machine
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Application:	Machinery & Hardware
Type:	Cutting Machine

Product Description

The frame is entirely welded with steel plates, and treated to relive stress by tempering.
Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital, convenient and fast.
Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
Protection fence to ensure the operation safety.
The display devices of the backgauge value and the shearing times are on the front of the machine.

		QC12Y-6×2500	QC12Y-6×4000	QC12Y-8×3200	QC12Y-8×4000
Plate		6×2500	6×4000	8×3200	8×4000
Shear Angle		1°30	1°30	1°30	1°30
SPM	min-1	≥16	≥10	≥10	≥10
Back Gauge Adjustment	mm	20-600	20-600	20-600	20-600
Throat Depth	mm	400	450	400	400
Main Motor Power	kW	7.5	7.5	11	11
Net Weight	kg	5600	9000	7900	10500
Outline Size (L×W×H)	mm	3150×1500×1600	4650×1950×1700	3880×1830×1720	4680×1980×1780

Established in 2006. MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd. It passed authentication of the ISO9001: 2000 quality management system in 2005, and CE certificate in 2008. Dedicate to product development, quality and service improvement, creating greater value for global customers to enhance the international competitiveness of China forging equipment industry.

It mainly produces brand series products: Hydraulic swing/Guillotine Shear, Hydraulic plate bending machine, press, Cutting machine. Three/Four roll bending machine etc, Four series of more than one hundred models. The large electro-hydraulic servo press brake WADF series filled the gap in AnHui province and won good praise. And have exported to Europe and America, Southeast Asia, Middle East such countries.

We firmly believe that through our unremitting effofts, we are able to meet your needs, and achieve win-win cooperation
