Fenghua Good Brother Lighting Co., Ltd. >> Professional High Level Trinocular Infinite Optical Plan Lens Polarized Light Petrology Microscope/Polarization Mikroskop for Metallurgical Labs Pharmacy

Professional High Level Trinocular Infinite Optical Plan Lens Polarized Light Petrology Microscope/Polarization Mikroskop for Metallurgical Labs Pharmacy

Name: Professional High Level Trinocular Infinite Optical Plan Lens Polarized Light Petrology Microscope/Polarization Mikroskop for Metallurgical Labs Pharmacy
Brand: china-manufacturer-directory.com
SKU: 766189985
Availability: InStock
Rating: 4.8 (71 reviews)

Professional High Level Trinocular Infinite Optical Plan Lens Polarized Light Petrology Microscope/Polarization Mikroskop for Metallurgical Labs Pharmacy

Supplier:	Fenghua Good Brother Lighting Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P800RF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optical System:	Infinite Corrected Optical System
Viewing Head:	Trioncular Head
Ocular:	Wide Field Wf10X/22 Eyepiece
Objectives:	Infinite Plan Lens5X10X20X50X100X
Illumination:	Reflected Light 24V/100W Halogen Lamp
Warranty:	3year Mechanical&Optical,1 Yearelectronics
Magnification:	500-1000X
Number Of Cylinder:	≥Three
Mobility:	Desktop
Shape:	Pentagonal Prism
Principle:	Optics
Type:	Polarizing Microscope

Product Description

Polarizing Microscope: P800 series
Description:
The polarizing microscope P800 series is specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. They can be used to analyze and identify various minerals and specimens, they can also be used to inspect chemical fiber, semiconductor products and medicines, this trinocular infinity polarizing microscope has a 30 degree inclined 360 degree rotatable trinocular head, coarse and fine focusing and 100W halogen illumination. It comes with an extreme widefield plan optical system. It is a perfect microscopy system for metallurgical labs and foundries for silicon wafer inspection and quality control..
Features:
1. Transmitted light and reflect light, 24V/100W long life halogen lamp.
2. Excellent Infinite optical system

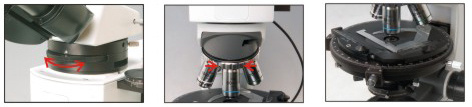

3. Stage with 45°located, attachable mechanical stage with large moving range, high efficiency by no interference
4. Center adjustable quintuple nosepiece
5. Rotatable analyzer with graduation 0°-90°. Quickly switch between orthoscopic and conoscopic observation. Precisely and quickly interference images adjustment.

	Standard Specification	P800RF	800TRF
Optical System	Infinite Corrected Optical System	√	√
Viewing Head	Compensation Trinocular head inclined at 30°, Interpupillary Distance 48-75mm,	√	√
Eyepiece	Extra Wide Field EWF10X/22 eyepiece	√	√
Eyepiece	Plan Eyepiece 10X with scale of cross hair, Plan Eyepiece 10X with Gridding	√	√
Nosepiece	Backward Quintuple Nosepiece, Center Adjustable	√	√
Objectives	Infinite Plan Achromatic Objective 5X/0.12/∞ /- WD15.5mm	√	√
	Infinite Plan Achromatic Objective 10X/0.25/∞ /- WD10mm	√	√
	Infinite Plan Achromatic Objective 20X/0.4/ ∞/0 WD4.3mm	√	√
	Infinite Plan Achromatic Objective 50X/0.75/ ∞/0 WD0.32mm	√	√
	Infinite Plan Achromatic Objective 100X/0.8/∞ /0 WD2mm	√	√
	Infinite Plan Achromatic Objective 40X/0.65/ ∞/0.17 WD0.54mm	-	√
	Infinite Plan Achromatic Objective 100X/1.25/ ∞/0.17 WD0.13mm	-	√
Middle Lens group	Analyzer: 360° Dial Rotation, Min scale Reading 0.1 °	√	√
Middle Lens group	Conoscopic Observation: Switch Between Orthoscopic and Conoscopoic Observation, Bertrand Lens Position Adjustable	√	√
Optical Compensator	λSlip(First Class Red plate), 1/4λ(guarter-wave plate), Quartz Wedge	√	√
Stage	Round Stage, Diameter ¢ 170mm, 360° Rotatable and Graduation in 1° increments, Minimun Resolution 6', Center Adjustable	√	√
Stage	Attachable Stage, Moving range: 30X40mm	O	O
Focusing System	Coaxial Coarse&Fine Adjustment, Fine Division 0.001mm, Moving range:24mm	√	√
Condenser	Stain-Free Swing type condenser NA0.9/0.25, Center Adjustable	-	√
Polarizer	Transmitted: 360° Rotatable 0° Position Adjutable	-	√
Polarizer	Reflected: Fixed	√	√
Filer	Dia45mm Blue Filter	√	√
Transmitted light	AC110V/220V, 24V/100W Halogen Lamp, Brightness adjustable Kohler Illumination and aspherical Condenser		√
Reflected Light	External Illumination, AC220V/110V, 24V/100W Halogen Lamp, Brightness Adjustable.	√	√

Note:"√" Standard Specification, "o"optional parts

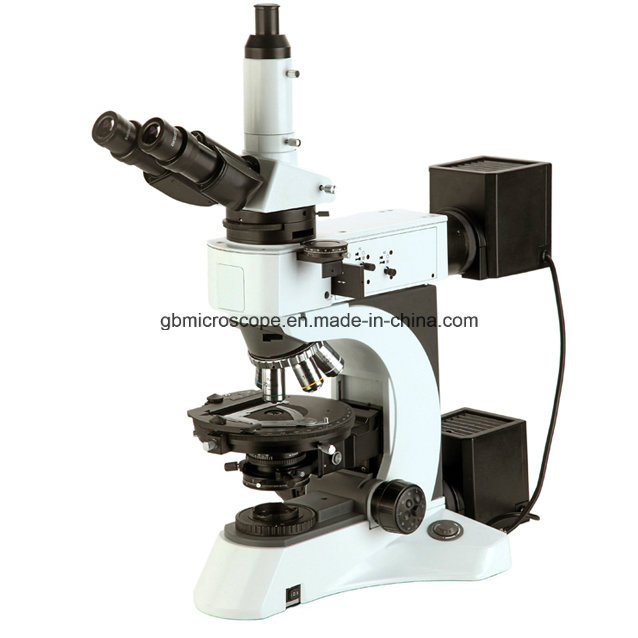

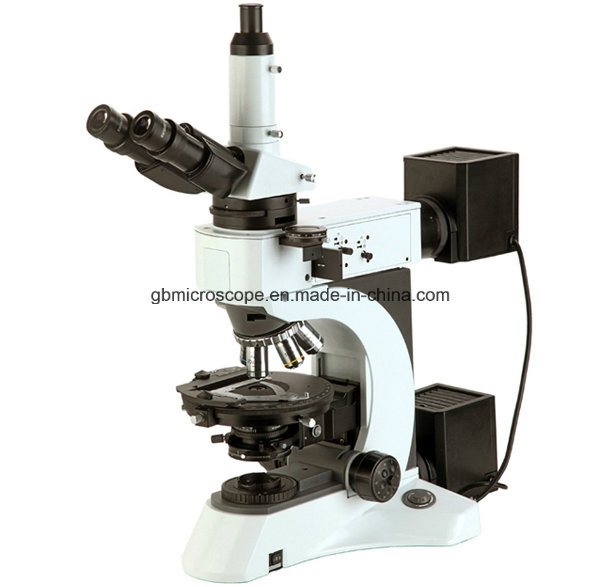

Professional Polarizing Microscope P800TRF (transmitted&reflected light)

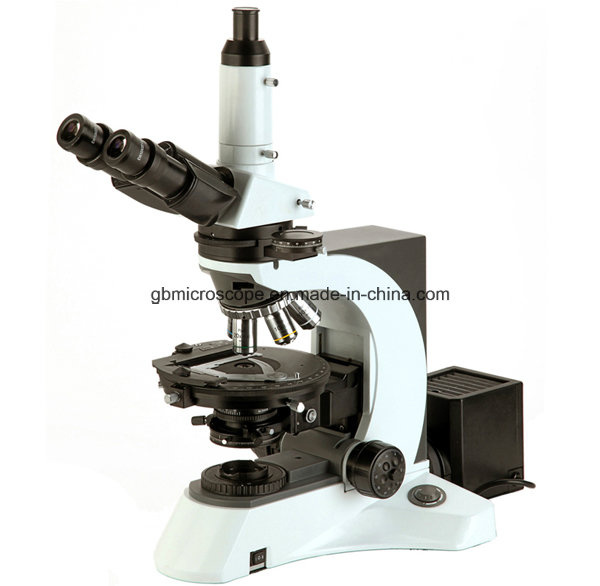

Professional Polarizing Microscope P800M (transmitted light)
