Programmable Control System PLC

Product Specifications

Prod Model:	DLFA-321
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Programmable Control System PLC Trainer:	Vocational Training Equipment
Type:	Teaching Model
Laser Model:	Programmable Control System PLC Training Equipment
Usage:	Training

Product Description

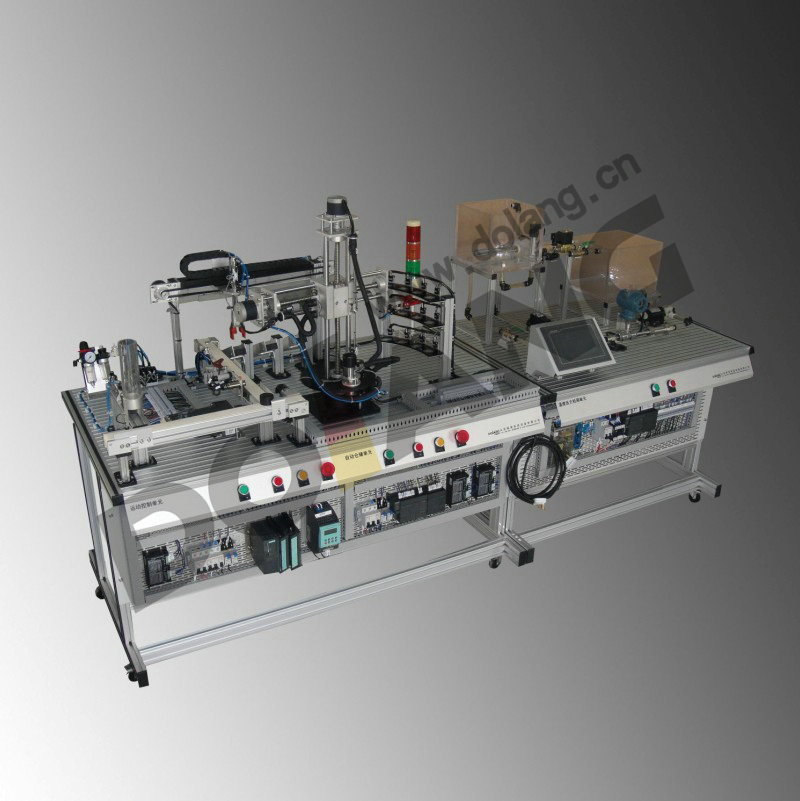

Programmable control system designers training evaluation equipment includes motion control training and process control Programmable control system designers training evaluation equipment DLFA-321 1. Overview Programmable control system designers training evaluation equipment includes motion control training and process control training in mechanical and electrical integration training teaching, this device adopts Siemens PLC as controller, host using Siemens S7-300 series host, slave station use Siemens S7-200 series host, between master station and slave station can be used MPI communication, you can also use 485 communication, including all the students' professional skill appraisal knowledge. Motion control module contains automatic feeding unit, transmission unit, manipulator handling unit, classification storage unit; Process control module contains analog quantity measurement (temperature, pressure, flow, etc.), PID adjust, etc. Equipment characteristics: 1, equipment adopt the aluminum alloy open structure, students can according to different control scheme, in the aluminum substrate programming constitute different execution system 2, equipment includes PLC application practice, frequency converter application training and touch screen application training 3, equipment include dc motor control training, stepping motor control training and three-phase ac motor control training 4, equipment, process control includes analog quantity (temperature, pressure, flow) acquisition and output control 5, equipment includes 3 d simulation software, this software not only can realize on-line monitoring function, also can realize off-line simulation function 2.Equipment components: 1, training platform: aluminum alloy structure, all parts are installed on the special aluminum plate or mesh plate, convenient students dismantling 2, motion control system: 1) automatic feed unit: use the well type feed mechanism, optical fiber sensor detection test feed bin, if there are material using pneumatic materials pusher push workpiece to belt transmission unit 2) belt transmission unit: After detect the materials through the frequency converter start transmission A, and at the same time, through the dc motor start transmission B, through the detection sensor group in the side of transmission B to confirm color of the materials, material, and will put materials information transfer to the next unit of work 3) manipulator handling unit (gantry robots) : the stepping motor and cylinder composed of gantry manipulator, by the above work unit transfer information grab and release materials. 3, process control system: The training system which set PLC, temperature sensors, pressure transmission, flow sensor, water pump, electromagnetic valve, etc organic combination in one, through the sensor signal acquisition, PLC programming, do more complex switch quantity control, temporal logic control to the electromagnetic valve, water pump , realize the temperature and flow rate, pressure switch and closed-loop automatic control function 4, automatic storage unit: It is composed of rotation manipulator, three-dimensional storage shelves, Classified storage the workpiece according to the motion control system test results on the classification storage. 3. Factory: Our factory located in Pioneering park overseas Chinese Scholars Jinan city, Shandong Province . We have very strong technical teams with more than 40 engineers and experienced workers. Our products have exported for more than 7 years. Packaging and Delivery Details: Packaging Detail: Packaging for training kit: plastic package + carton + plywood pallets Packaging for training equipment: plastic package + plywood pallet Delivery Detail: 20 to 50 days after Received advanced payment.     After-sales Service And Training for Foreign User For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it. We dispatch our professional and experienced engineer to install equipments and make training for the end users Question   Q1:What factors affect the price? A.    The quality of components: All the components we use are real industrial components which under EURO standard. B.    Technic: we pay much attention on the technics and details. Our products meet the requirement of Germany standard C.    Quantity: The price is up to the quantity of each item. Q2: All equipments are designed by Dolang? A.    Yes. All our equipments are designed by ourselves. B.    The design department including: Electric research design department, Electrical research design department, Mechanical research and design department, Software research design department, Pilot test department and technical documents department. Q3:Does Dolang have after sales service and training service? A. After sale service: All our products have one year maintance from the date of pick up except artificial damage. B. Training: Customer may ask our engineer to training them in their company or come to Dolang for training
