Programmable Controller Tengcon T-910 PLC Remote Control System

Product Specifications

Prod Model:	T-910
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Temperature:	-40~ 85 Degrees Celsius
COM Port:	3, RS232 or RS485
Ethernet:	1
Mount:	Standard Rail or Bolts
Power:	AC 85-265V or DC 9-36V
Dimension:	169X134X63mm
Warranty:	3 Years
I/O:	8ai, 2ao, 12di, 8do
Structure:	Combination
Function:	Automatic Control
Certification:	CE
Condition:	New
Customized:	Customized
Task:	Controller

Product Description

Programmable Controller Tengcon T-910 PLC remote control system

Specifications

1.Integrated Automation PLC
2.Temperature Range: -40~85 degree celsius
3.CE & FCC Certification
4.Customizable,OEM&ODM

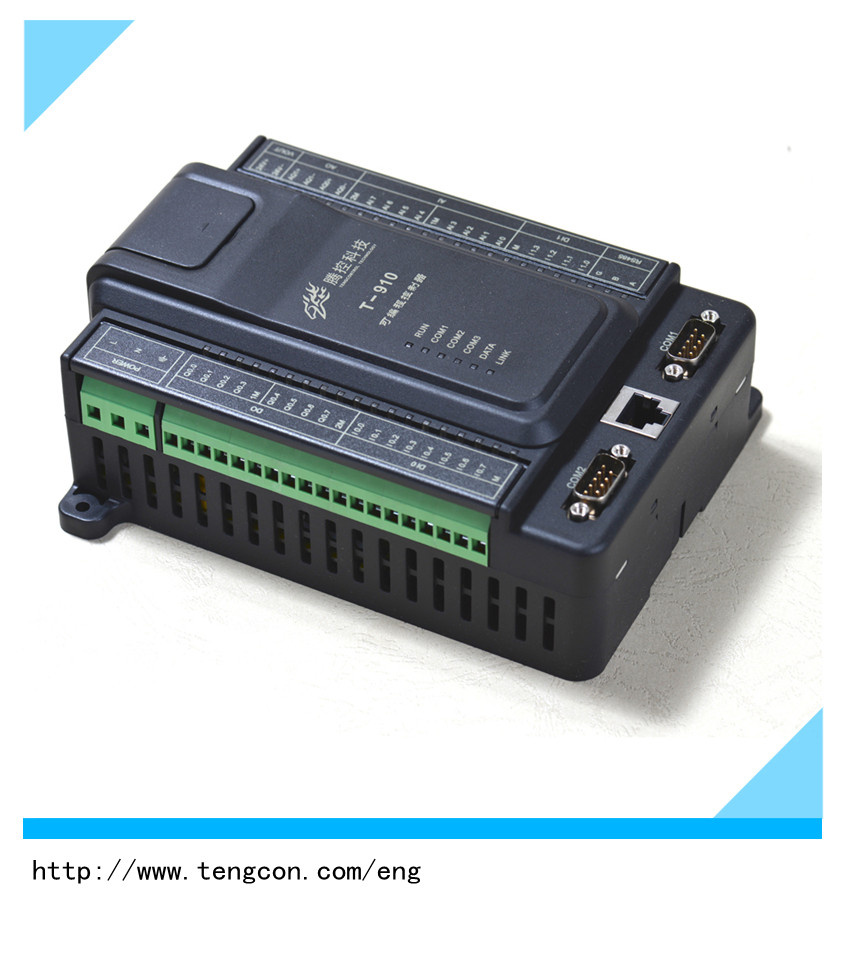

TENGCON T-910 plc

T-910 Programmable Controller is a product of Tengcon Company's T-9 series PLC. It combines an ARM industrial CPU with a maximum frequency of 72MHz. an extended 32M SDRAM and a 4M FLASH, an embedded operating system, a 2M user program memory and a 2M user data memory. Programming the T-910 on MULTIPROG programming system and communicate via a Ethernet cable make user's programming very easy. Furthermore, T-910 also provide 3 RS232, or RS485 interface. It provide the following input and output: 12 digital inputs, 8 digital outputs, 8 analog inputs, 2 analog outputs, 2 high-speed impulse counters and a 24VDC power supply, because of its flexibility, T-910 can be applied in many small industrial control applications.
Tengcon T-9 Series PLC have passed CE & FCC Certification.

Product Description

Main Feature :
Operating Temperature Range  -40~85  degrees celsius
8 channel analog input (0~5v or 0~20mA) , 16 bit AD
2 channel analog output(0~10v or 0~20mA) , 12 bit D/A
12-point isolated digit input 5-48 VDC, 2 point high speed counter
8-point relay output, 250VAC 5A per point or 30VDC 5A per point
1 port  10M/100M Ethernet, self-adaptive, MODBUS TCP, IEC60870-5-104
Two RS485or RS232 ports , one RS485 port, MOBUS RTU , 300-38400bps
IEC61131-3 supported  (IL,ST,LD,FBD,SFC)
AC(85-265V)  or DC 24V  power supplies
169x134x63 (mm) size

Technical Specification


Model Number	TENGCON T-910  (8AI,2AO,12DI,8DO)  ethernet controller
Physical Feature
Dimension	169 x 134 x 63 mm (W x H x D)
Weight	0.5 Kg
Mount	Standard rail or bolts
Working Temperature	From -40ºC to 85 ºC
I/O Feature
Built-in digital inputs	12  (Optical coupling isolated input, 2 of them can be used as high-speed counters)
Built-in digital outputs	8  (Relay output)
Built-in analog inputs	8  (0-20mA or 0-5V)
Built-in analog outputs	2  (0-20mA or 0-10V)
Built-in high-speed impulse counters	2 single-phase or 1 two-phase (100 KHz impulse counting, can be used as 2 single-phase or 1 two-phase)
I/O state indicators	44 pcs.
Input image	256 Byte (512 bits for digital inputs and 192 Byte for analog inputs)
Output image	256 Byte (512 bits for digital outputs and 192 Byte for analog outputs)
Power Supply and power output
Power Supply	Rated Voltage	220V AC or 24V DC
	Range	From 90V AC to 250V AC, 50Hz, or 24V DC
	Rated current	140mA/90VAC(when all the digital outputs, analog outputs and 24V DC output in full-load) 40mA/220VAC(when all the digital outputs, analog outputs and 24V DC output in full-load)  23mA/220VAC(when all the digital outputs and analog outputs in full-load, but 24V DC output in no-load) 14mA/220VAC(when all the digital outputs, analog outputs and 24V DC output in no-load)
Isolated power output	Rated voltage	24VDC
	Rated current	0.2A
	Output resistance	About 20 Ohm
	Terminals	VOUT(24V+, 24V-)
Communication
Ethernet	1 port  (RJ45, 10M/100M adaptive,MODBUS TCP protocol)
RS232	1 port  (COM0, for internal test)
RS232/485	3 port  l COM2, DB9 RS232 direct connect l COM1, DB9 RS485(pin 2 is B, pin 3 is A) l COM3, DB9 RS485(terminal AB) Default settings: MODBUS RTU Slave, Bode rate 19200,1,8,E, address 1
DIP	8-bits  Set DIP ON will force the IP address to the default 192.168.1.99
Run/stop switch	2 switches  run/stop(in stop mode, only PLC program stopped)
Communication indicator	6 pcs.  l RUN indicator(flashing) l COM1 COM2serial port communication indicator(flashing when communicating) l LINK Ethernet linking indicator DATA Ethernet communicating indicator
Memory
User program memory size	2M Byte
User data memory size	2M Byte
Back-up battery data memory	1K Byte
Data back-up time	1 year
CPU feature
CPU frequency	48 MHz		Max. 72 MHz
Minimum instruction processing time	4 millisecond
INT and Bit operation	From 1 to 4 microsecond
Floating-point algorithm	About 40 microsecond
1ms timer quantity	No limit
Clock	Internal clock		Back-up battery


Order Requirements:

Please confirm and choose the following information when you are ready to place order :

Working Power Supply	220V AC 50HZ	Please confirm which one
	9-36V DC
DC input	0-20MA(default setting)	Please confirm which one
	0-5V
DC output	0-20MA(default setting)	Please confirm which one
	0-10V
DI Voltage	24V/DC
Communication	2 RS485 port,1RS232 port (default setting)	Please confirm which one
	3 RS485 port
Quantity
