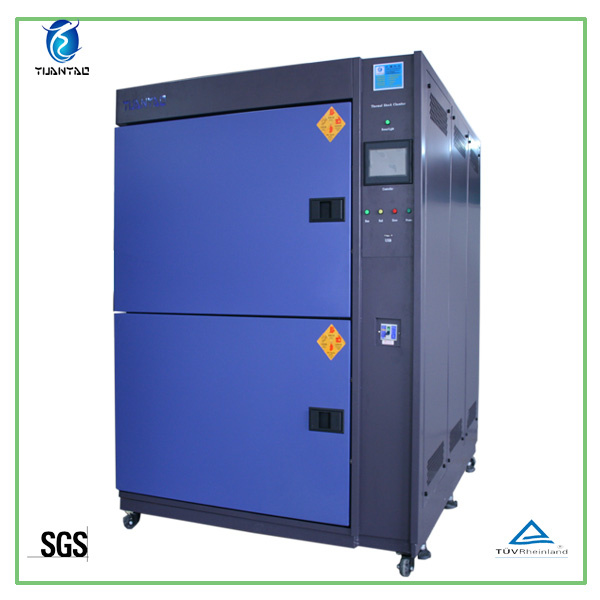

Programmable Hot Cold Temperature Impact Test Instrument For LED Light
Introduction&Application:
Hot Cold Temperature Impact Test Instrument is used to test the reliability of materials or specimens when it undergoes a rapid change in a field or handling environment. The procedure is to cyclically immerse it in fluids which are maintained at specific temperature. Suitable fluid materials are those that are chemically inert, stable at high temperatures, nontoxic, noncombustible, low viscosity, and compatible with materials.
Features
1 Test physical changes of IC, PCB, ceramic semiconductors and other high polymer materials.
2 High and low temperature liquid tanks use forced mixing convection way.
3 Automatically move testing samples from up to down or left to right to preheating, precooling.
4 Use Garden D02TS in hot and cold chambers to reduce the cost.
5 Japan imported LCD touch screen controller.
6 Suitable for water cooling and air cooling.
7 Optional accessories: Temp. Recorder and solution.
8 Touch screen controller
9 Best after sales service: One year free parts maintenance.
10 Meet international test standards.
11 Customization is available & welcomed.
Technical parameters: Please see the label.
| Specification |
| Model | YTST-021-65-LW | YIST-041-65-LW |
| Method | Immersion in liquid bath by movement of a sample basket rack |
| Internal Dim.W×H×D(MM) | 200×350×300×2Bath | 260×350×450×2Bath |
| Temperature rise time (high temperature bath) | Room temperature to +150ºCwithin 120 minutes |
| Temperature rise time (low tempreature bath) | Room temperature to -65ºCwithin 120 minutes |
| Precool/Preheat Temp.Range | -75.00ºC--00.00ºC/+600.00ºC--160.00ºC |
| Shocking Temp.Tange | -65.00ºC--00.00ºC/+600.00ºC--150.00ºC |
| Testing Time | 5min | 5min |
| Movement Time | Approx.10 seconds |
| Resolution | 0.1ºC/ 1 min |
| Control Constancy | ±0.2ºC |
| Sample basket Kim.W×H×D( mm ) | 10×18×20 | 16×18×35 |
| Sample Weight | 1C 2Kg | 1C 5kg |
| Controller | 1P |
| Power Source.[K.W.] | AC 1Ψ 220V; 3Ψ 380V 60/50Hz |
Except Hot Cold Temperature Impact Test Instrument , Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
