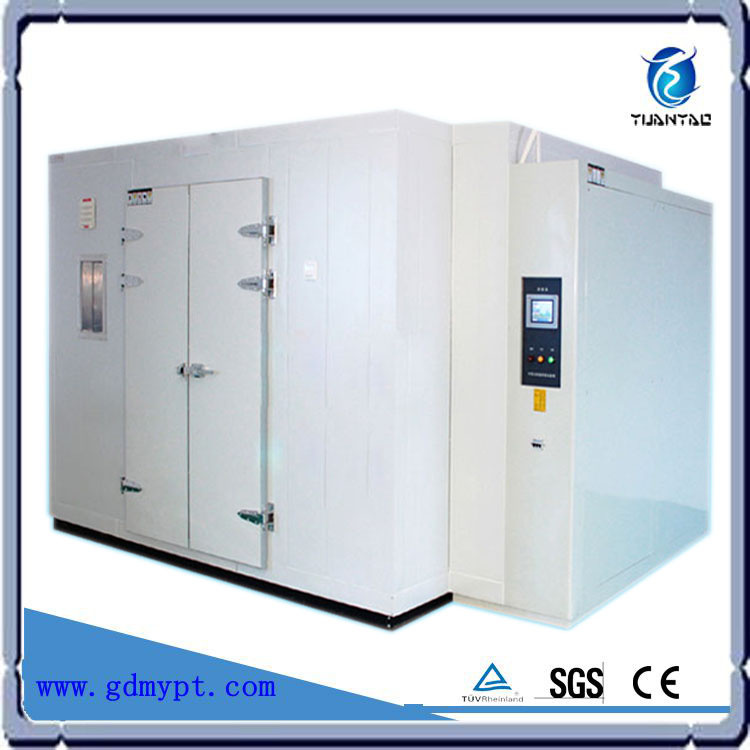

-70C to +150C Temperature and Humidity Endurance Test Instrument
Introduction&Application:
-70C to +150C Temperature and Humidity Endurance Test Instrument simulates the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions. They have applications in industries as disparate as food science, semiconductors, and military quality assurance. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.
Climate test chambers come in a variety of sizes, from a small box that fits on the bench top to a room-sized chamber for large objects or for testing large batches of product simultaneously. Temperature ranges from -60° C to 70° C and relative humidity ranges between 30% and 90% are available. A climate test chamber can also be used when constant climate conditions (temperature and/or humidity) are needed for product testing.
Features
1. Used in various rang of temperature and humidity environment, can meet different testing requirements. Adopting BTHC uniqe control method, with safety and accurate temperature and humidity environment.
2. Equipped with high precision digital display temperature and humidity controller
3. Refrigeration circuit performation controlled by temperature setting value automatically, capable of starting up condenser under high temperature, direct cooling.
4. With wide view glass window, easy to observe the testing process.
5. Protection system: Electrical breaker, overheat protection, phase absence protection, water shortage alarm.
Technical parameters
| Model | YWER |
| Internal Dim.W×H×D(mm) | Please refer to size chart |
| External Dim.W×H×D(mm) |
| Temperature Range | 0ºC;-20ºC;-40ºC;-60ºC-- +70ºC(+80ºC) |
| Humidity Range | 30--90%RH |
| Ferformance | Temp.&Humi,Constancy | ±0.3ºC;±2.5%RH |
| Temp.&Humi,Constancy | ±0.1ºC;±5%RH |
| Indication Resolution | 0.1ºC;0.1%RH/0.01;0.1%RH |
| Heat-at | ºC | 80 |
| Time | min | 50 |
| Pull-down | ºC | 0 | -20 | -40 |
| Time | min | 55 | 70 | 100 |
| Material | Exterior | SUS#304 Stainless steel/PVC+Powder Coated |
| Interior | USU#304 stainless steel piate |
| Insulation | Ployurethane foam 100mm (75mm) (50mm) |
| Systems | Cirulation | Siroco fan |
| Heating | SUS#304 stainless steel high-speed heater |
| Humidifying | Surface evaporating system |
| Cooling | Airtight compressor+vaporator fins+air-cooling |
| (or water-cooling)condenser |
| Dehumidifying | ADP Critical dewpoint cooling/dehumidifying method |
| Controller | Digital electronic indicators+S.S.R.With PID |
| Other Components | Airtight compressor+evaporator fins+air-cooling |
| (or water-cooling)condenser |
| Sevey Devices | Overheating prevention ciruit-breaker, compressor overload protection,control system overload,humidifying system |
| overheating & drying out prevention, breakdown indicator light. |
| Power Source[K.W.] | AC 1Ψ 220V;3Ψ 380V 60/50Hz |
| Comply with ASTM D2436,JIS K7212,DIN 50011,BS 2648,IEC-540. |
