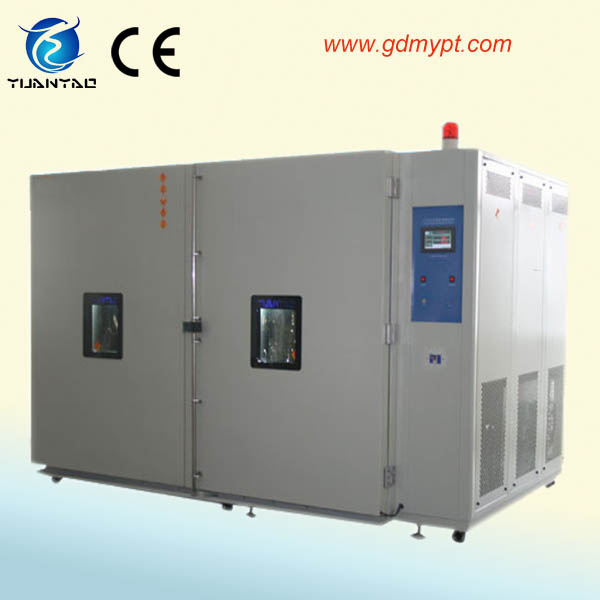

Perfect Design Fast Change Temperature Tester/Temperature Test Instrument

Name: Perfect Design Fast Change Temperature Tester/Temperature Test Instrument
Brand: China-Manufacturer-Directory.com
SKU: 736734545
Availability: InStock
Rating: 4.6 (68 reviews)

Supplier:	Dongguan Yuanyao Electronics Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YICT-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Size:	1000×1000×1000mm
External Size:	2100×2280×1950mm
Volume:	306 Liters
Temp. Range:	-70degrees---+150degrees(Ks)
Temp. Rapid Change Range:	-70degrees; -50degrs--+85degrs
Heating&Cooling Rate:	3 Degrees/Min, 5degrees/Min, etc.
Temp. Fluctuation:	+/- 2 Degree
Temp. Uniformity:	+/-1.5degrees
Interior Chamber Material:	SUS#304 Stainless Steel Plate
Exterior Chamber Material:	Stainless Steel Plate + Powder Coated
Type:	Material Testing Machine
Weight:	100-500Kg
Power Source:	AC220V

Product Description

Fast Change Temperature Tester

Introduction&Application:

Fast Change Temperature Tester is mainly and widely used for various types of testing such as prototype evaluation, research & development testing, production quality control testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

Feature:

1 New design, easy operation.

2 Imported LCD touch controller.

3 Uniform air supply cycle system.

4 Long axis motor is vertically installed on the top.

5 Bright and spacious observation window.

6 Advanced security protection device

7 Rapid heating-up and heating-down temperature.

8 Rational Construction and fast cooling rate

Except Rapid Changes temperature Chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

If any interm catch your eyes, please feel free to contact us!

Specification
Model		YICT-225	YICT-306	YICT-408	YICT-800	YICT-1000
Internal Dim.W×H×D(mm)		500×750×600	600×850×600	600×850×800	1000×1000×800	1000×1000×1000
External Dim.W×H×D(mm)		1500×1930×1550	1600×2030×1550	1600×2030×1750	2100×2280×1950	2100×2280×1950
Temperature Range		-70ºC-- -150ºC(KS); -40ºC-- -150ºC(KL); +20ºC-- -150ºC(KR)
Rapid Changes Temp.Range		-70ºC;-50ºC-- +85ºC(KS),-40ºC; -20ºC-- +85ºC(KL),-20ºC; 0ºC-- +85ºC(KR)
Heating & cooling rate		3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min
Ferformance	Temp.Constancy	±2.0ºC
	Temp.Constancy	±1.5ºC
	Indication Resolution	0.01ºC
	Heat-up Time	-70ºC-- -150ºC in 60min; -40ºC-- -150ºC in 50min; +20ºC-- -150ºC in 35min
	Pull-down Time	+20ºC-- -70ºC in 70min; +20ºC-- -40ºC in 55min; +20ºC-- -20ºC in 35min
Material	Exterior	Stainless steel piate+powder Coated
	Interior	SUS#304 stainless steel piate
	Insulation	PU & Fiberglass wool
Systems	Cirulation	Siroco fan
	Heating	Heater;stainless-gang Fin-type heat pipe heat pipe heating mode of air circulation
	Cooling	Airtight compressor+vaporator fins+air-cooling condenser
Other Components		Vacuum glass inspection window, cable port(ø 60mm),control status indicator lights,chamber lamp, experiment separation shelves(freely adjustable 2pcs)
Sevey Devices		No fuse overload protection, the compressor overheating,over-current, over-pressure,dry heat, inside the over-temperature warning system
Power Source[K.W.]		AC 3Ψ 380V 60/50Hz

Founded in 2009, Dongguan Yuanyao Electronics Technology Co., Ltd. Has become a leading manufacturer of environmentally friendly test chambers.

Our main products include Programmable Temperature & Humidity Chambers, Thermal Shock Testers, Walk-In Environmental Test Rooms, LCM (LCD) Aging Chambers, Salt Spray Testers, Aging Ovens, Vibration Combined Test Chambers, Steam Aging Testers, etc.

We have helped companies in a wide range of industry sectors including photo electricity, electronic communication, semi-conductor, electric appliance and machine, spaceflight, automobile, locomotive, telecommunication, food and pharmacy and academic institutions realize their climate test objectives.

We have developed rapidly these years. The commitment of our experienced team of engineers has been and continued to be excellence - excellence in engineering and design, excellence in manufacture and excellence in the service that we provide for our ever increasing lists of customers.

Our resources and expertise enable us to supply high quality equipment ranging from simple benchtop chambers to major "turnkey" projects. We can produce equipment according to customers' Exact requirements, from conception to completion.

We will take an active role to ensure that our equipment proposed will not only meet the specifications but also will be made as per the budget. We also provide timely delivery.
