Product Specifications
| Prod Model: |
YPO-720 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Size: |
1200*1000*600mm |
| External Size: |
1750*1750*840mm |
| Volume: |
720 Liters |
| Temp. Fluctuation: |
+/-0.3 Degree |
| Color: |
Ivory |
| Interior Chamber Material: |
SUS#304 Stainless Steel Plate |
| Exterior Chamber Material: |
Stainless Steel Plate + Powder Coated |
| Circulation System: |
Circle Fan |
| Indication Resolution: |
0.1degree / 1 Degree |
| Heat Up Time: |
60 Mins |
| Type: |
Material Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
| Loading Method: |
N/a |
| Load Way: |
N/a |
| Maxcapacity: |
N/a |
Product Description

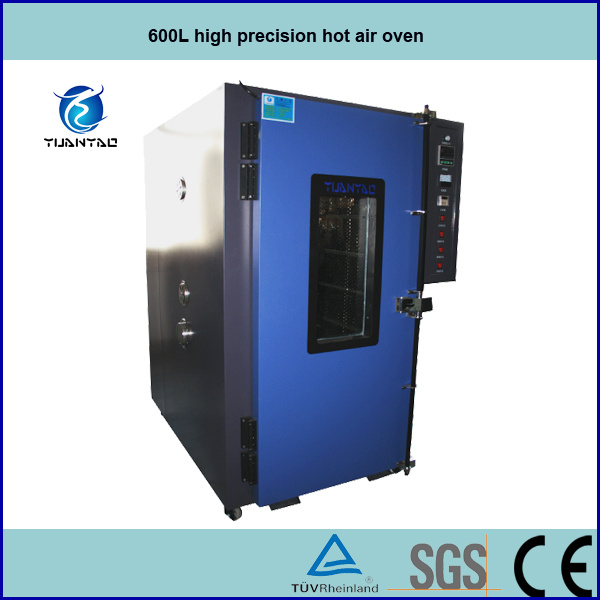

Computer Controlled High Temp. Ageing Climate Device
Introduction&Application:
Computer Controlled High Temp. Ageing Climate Device is used to test materials performance in high temperature test condition. It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc
Feature:
1 Microcomputer electronic digital control, precision&reliability.
2 High temperature endurance&non-aging.
3 Observation view window, easy operation.
4 Forced circulation air, the temperature rise fast, even distribution.
5 PID control, double overheating protection, safety and reliability.
6 Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts maintenance.
7 Meet international test standards.
8 Customization is available & welcomed.
Technical parameters: See the label.
Except Computer Controlled High Temp. Ageing Climate Device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
|
Specification |
|
MODEL |
YPO-072 |
YPO-270 |
YPO-480 |
YOP-600 |
YPO-720 |
|
Internal Sim.WHD(mm) |
450×400×400 |
600×900×500 |
800×1000×600 |
1000×1000×600 |
1200×1000×600 |
|
External Dim.W×H×D(mm) |
750×1200×550 |
1050×1650×740 |
1200×1700×840 |
1400×1750×840 |
1750×1750×840 |
|
Temp.Range |
Room Temp.+10ºC---+200ºC(300ºC) |
|
Ferformance |
Temp.&Humi,Constancy |
±0.3ºC |
|
Temp.&Humi,Constancy |
±0.1ºC AT 200ºC;±1.5% AT 300ºC |
|
Indication Resolution |
0.1ºC/1ºC |
|
Heat-up Time( min.) |
Approx.60min. |
|
Material |
Exterior |
Iron Sheet+Baked Enamel |
|
Interior |
SUS#304 stainless steel piate |
|
Insulation |
Fiberglass Wool |
|
SYSTEMS |
Cirulation |
Circle Fen |
|
Heating |
Chrome Steel Strip Wire Heater |
|
Controller |
Electric Digital Control+S.S.R. |
|
door |
Single-Wing |
Double-Wing |
|
Other Components |
Environmental Control Indicator Lights, |
|
Experiment Separation Shelves(2 pcs). |
|
Sevey Devices |
Overheating Prevention Circuit breaker, |
|
Control System,Breakdown Indicator Light. |
|
Power Source[K.W.] |
AC 1Ψ 220V ; 3Ψ 380V 60/50Hz |
|
Any requested size and TEMP. range(max.1200ºC)will be considered. |
