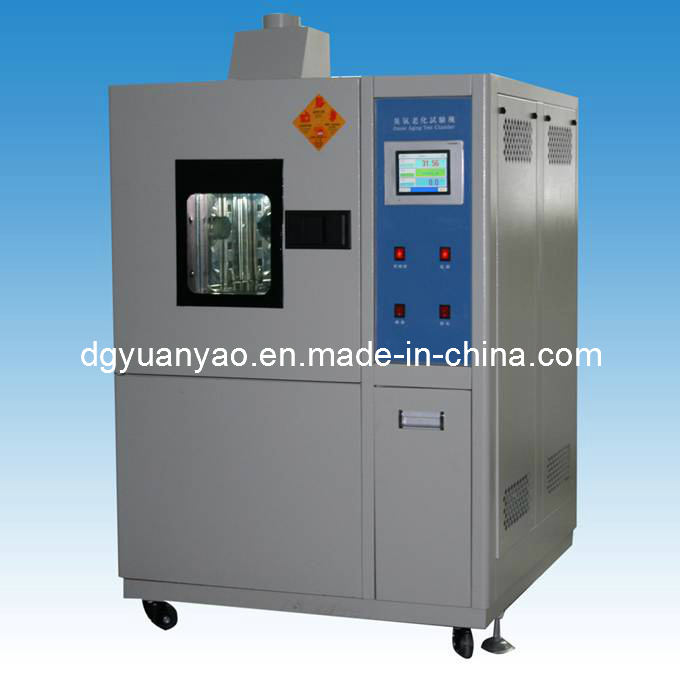

Simulating ozone environment test device(YOT-225)
Introduction&Application:
Rubbers are particularly prone to ozone attack and exposure can cause a crazing effect on uncovered surfaces, eventually leading to cracking and facture. Ozone attack can also bring additives to the surface and cause the rubber compounds to separate. Many test methods exist for testing rubber in the form of ASTM, BS or ISO standards. Here materials are placed in a chamber containing a ozone-rich atmosphere for a period of time, after which they are assessed for damage or tested for physical properties such as strength. The ozone test chamber simulates and strengthens the conditions of ozone, study the effects of ozone on rubber, and then take effective anti-aging measures to improve the life of rubber products.
Feature:
1.7'' Touch panel controller, simple and friendly menu
2. Unprecedented uniform exposure of all specimens using a rotating carousel
3. Closed-loop servo control ensures highly stable ozone concentration levels
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. With castors
7 Best after sales service: One year free parts maintenance.
8 Meet international test standards.
9 Customization is available & welcomed.
Technical parameters:
Please see the label.
More details about the specification, please contact Angela Cheng, thanks for your attention.
Except Simulating ozone environment test device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
|
Model |
YOT-080 |
YOT-150 |
YOT225 |
YOT-408 |
YOT-800 |
YOT-1000 |
|
Internal Dim.W×H×D(mm) |
400×500×400 |
500×600×500 |
500×750×600 |
600×850×800 |
1000×1000×800 |
1000×1000×1000 |
|
External Dim.W×H×D(mm) |
900×1450×950 |
950×1500×1050 |
950×1650×1150 |
1050×1750×1350 |
1450×1900×1350 |
1450×1900×1550 |
|
Temperature Range |
RT to 80ºC |
|
Humidity Range |
45%HR -- 98%HR |
|
Performance |
Temp.&Humi fluctuation |
±0.2ºC,±0.5%RH |
|
Temp.&Humi uniformity |
±1.5ºC,±2.5%RH when RH is ≤75%, ±4%RH when RH is over 75%(tested with empty chamber, 30mins after stabilization) |
|
Indication Resolution |
0.01ºC,0.01%RH |
|
Ozone concentration |
0--1000PPHM |
|
Ozone control accuracy |
±10% |
|
Ozone way |
Static emissions |
|
Sample rotating speed |
1 times/minute |
|
Material |
Exterior |
Stainless steel plate+Powder Coated |
|
Interior |
SUS#304 stainless steel plate |
|
Insulation |
PU & Fiberglass wool |
|
Ozone analyzer |
Imported ozone density analyzer |
|
Ozone generator |
Silent discharge type ozone generator |
|
Systems |
Circulation |
Sirocco fan |
|
Heating |
SUS#304 stainless steel high-speed heater |
|
Humidifying |
Surface evaporating system |
|
Cooling |
Imported compressor+finned vaporator+air-cooling condenser |
|
Dehumidifying |
ADP Critical dewpoint cooling/dehumidifying method |
|
Controller |
Digital electronic indicatrs+S.S.R.With PID automatic calculation capabilty |
|
Accessories |
Vacuum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free) |
|
Safety devices |
Overheating circuit-breaker, compressor overload protection, control system overload protection, humidifying system overheating protection, breakdown indicator light. |
|
Power(K.W.) |
AC 1Ψ 220V,3Ψ380V 60/50Hz |
|
Customization |
Customization of inner chamber size,temperature&humidity range,etc. |
