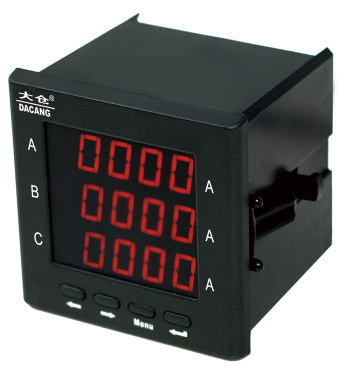

Programmable Intelligent Digital Display Meter
Product Specifications
| Prod Model: |
DC284I-AX4, DC284I-9X4, DC284U-AX4, DC284U-9X4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Type: |
Digital |
| Display Type: |
LED |
| Certification: |
CE |
| Type: |
Temperature Controller |
| Material: |
Plastic |
| Usage: |
Power Meter, Electric Meter |
Product Description
Three-phase Programmable intelligent digital display meters are applied in electric power network and automatic control system, mainly measuring all the parameters in the power system, such as current, voltage, frequency, power factor, active power, reactive power and so on. In according to its additional functions, the meters can be divided into X, K, D, S four series.
X series of intelligent digital display meters, mainly measure and display the electrical parameters in the electric power network, such as current, voltage, power, frequency and power factor and so on, with the features of intuitive display, high precision, good reliability, anti-vibration, etc. AC True effective value measurement can be used to a serious wave distortion place.
On the basis of X series, K series intelligent digital display meters have added with the functions of setting ratio keyboard and one channel RS485 communication interface output(supports Modbus RTU protocol) in order to facilitate digital display meters in the group networking.
D series digital display transmission meters on the basis of X Series meters have added with the functions of analog transmitting output(4-20m A and so on) and one channel RS485 communication interface which supports Modbus-RTU protocol, and can be directly three lines digital display or single-line digital switch.
S series Digital alarm monitoring control meters have increased the functions of relay output (to achieve "the excess limit alarm or telecontrol function") on the basis of X series meters: RS485 digital interface which supports Modbus-RTU implement "remote" function, the variable ratio and communication parameters can be easily and momentarily set through meter panel buttons.
Model
Product function |
DC284I-9X4 |
DC284I-AX4 |
DC284U-9X4 |
DC284U-AX4 |
|
Real-time measurement |
Three-phase voltage |
- |
- |
√ |
√ |
|
Three-phase current |
√ |
√ |
- |
- |
|
Active power |
- |
- |
- |
- |
|
Reactive power |
- |
- |
- |
- |
|
Power factor |
- |
- |
- |
- |
|
Analog output |
AO (DC4-20mA) |
- |
- |
- |
- |
|
Relay output |
DO (AC250V/5A,
Remote/Alarm |
- |
- |
- |
- |
|
On-off input |
DI (Passive stem node) |
- |
- |
- |
- |
|
Communication interface |
RS485, Modbus-RTU |
- |
- |
- |
- |
|
Display mode |
Three-line LED |
|
Panel size (mm) |
96x96 |
74x74 |
96x96 |
74x74 |
|
Hole size (mm) |
91x91 |
67x67 |
91x91 |
67x67 |
|
Installation mode |
Panel Mounting |
Remark:
“ √ ” means the model has the function.
“ - “ means the model doesn’ t have such function.
The number means channel, for example: 2 means the model has the function with 2 channels. |
|
Description |
Parameters |
|
Precision grade |
Electric capacity metering: active electric energy: 0.5 class, reactive electric energy grade: 1.0, transmission output grade 0.5 |
|
Display mode |
LCD screen display |
Input signal |
Measurement network |
Three-phase four-wire V34/Three-phase three-wire V33 |
|
Voltage |
Rated voltage |
AC100V, AC400V |
|
Excess load |
Continuance: 1.2 times; Instantaneous: 2 times (10s) |
|
Power consumption |
< 0.6VA (each phase) |
|
|
|
|
Impedance |
> 200kΩ |
|
Current |
Rated current |
AC5A / AC1A |
|
Excess load |
Continuance: 1.2 times; Instantaneous: 10 times (5s) |
|
Power consumption |
< 0.4VA (each phase) |
|
Impedance |
< 20mΩ |
|
Frequency |
45-65Hz (± 0.01Hz) |
|
Electric energy |
Bi-directional Active/Reactive electric energy metering |
|
Power supply |
Working scope |
AC/DC 85-264V |
|
Power consumption |
< 5VA |
|
Function modules |
Electric energy pulse |
Passive optical coupler collector output |
|
Communication interface |
1-way RS485 communication interface, Modbus-RTU ≤ ≤ Protocol |
|
On-off input |
Passive stem node |
|
On-off output |
Excess alarm or remote relay output capacity AC5A/250V, AC/DC/0.1A /400V |
|
Transmission output |
0-20mA/4-20mA/0-5V/1-5V transmission output, programmable to setting transmission items and relative output data. |
|
Security |
Insulation resistance |
≥ 100MΩ |
|
Resist pressure |
Input voltage> 1kV, Input and output> 2kV, Power supply and output> 2kV |
|
Work environment |
Temperature |
-10º C ~ 55º C |
|
Relative humidity |
≤ 93%RH |
|
Altitude |
Non-corrosive gas forum, Altitude ≤ 2500m |
|
storage environment |
Temperature |
-20º C ~ 75º C |
|
Relative humidity |
≤ 93%RH |
Changzhou Dacan Electronic Co., Ltd is a professional designer and manufacturer of instruments and monitoring equipments for electric power, such as intelligent temperature and humidity controller, dehumidifier, heater, wireless contact thermometric system, intelligent controller for switch cabinet, status displayer for switch cabinet, multi-function electric instrument, various intelligent digit displayers(including amperemeter, voltmeter, active/reactive power meter and frequency meter), automatic compensation controller for reactive power, electric measuring transmitter and indoor high voltage live displayer, which are widely used in electric distribution system of high and low voltage, intelligent switch cabinet, plant auto-system, machinery equipment, energy management system, intelligent ZGS and electric system for dwelling, commercial and industrial construction.
We mainly produce DC26 series of temperature and humidity controller, DC68 series of intelligent controller for switch cabinet, status displayer, DC1000 series of wireless contact thermometric system, DC2800 series of intelligent electric power monitor, DC284E series of multifunction electric power meter, DC284Z series of network electric power meter, X/K/D/S series of programmable intelligent power meter, TRPC series of reactive power automatic compensation controller, DC29 series of electric measurement transmitter, DC80 series of indoor high voltage live displayer, etc.
We have cooperated and developed with domestic colleges and research institutions for a long time and hold a strong technical R&D power. Our products contain sensor monitoring, electric power intelligent monitoring, electric metering, electric power transmitter, electric measurement display, wireless digit transmitter, power factor compensation, etc. Our compact design and strict quality system make our products become the first selection of various switch cabinet factories, design institutes and industrial terminal users such as electric power, coal, machinery, metallurgy and chemical industry.
Our Vision: Become the first-rate supplier of instruments and equipments in electric power system.
Our Mission: Provide high quality instruments and equipments for electric power system.
Our Valuation: Dedication, Co-operation, Communication and Innovation.
Our Culture: Done what has said and emphasize the results. Be strict with ourselves and dare to shoulder the responsibility. Work hard and struggle to innovate.
