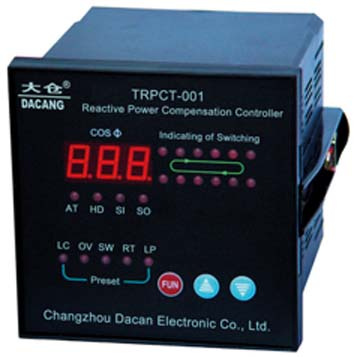

Reactive Power Automatic Compensation Controller
Product Specifications
| Prod Model: |
TRPC-001, TRPC-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Type: |
Digital |
| Display Type: |
LED |
| Certification: |
CE |
| Material: |
Plastic |
| Usage: |
Power Meter, Electric Meter |
| Type: |
Reactive Power Automatic Compensation Controller |
Product Description
Reactive Power Automatic Compensation Controller fully digital design, AC sampling algorithm, four-bit LED display; Modular streamline design, RS485 standard bus bar port, supporting Modbus-RTU communication protocol; Applicable for data collection and reactive power compensation of intelligent switchgear, displaying the real-time voltage, current, power factor, active power, reactive power, harmonic voltage, harmonic current, frequency, capacitance switching state, temperature, etc. Harmonic protection function, 12/16 loops of reactive power compensation, supporting split-phase, three-phase, split-/three-phase reactive power control functions; Dynamic or static compensation modes, manually or automatically; Capacitor switching program supports switching control by isochoric, encoded or fuzzy control modes.
Model
Product function |
TRPC-001 |
TRPC-002 |
|
Measurement |
Single-phase measure |
√ |
- |
|
Three-phase measure |
- |
√ |
|
Protection |
Composite compensation |
- |
√ |
|
Phase separated compensation |
- |
√ |
|
Cyclical switchover |
√ |
√ |
|
General protection |
√ |
√ |
|
Display function |
√ |
√ |
|
Alarm function |
√ |
√ |
|
Self-checking |
√ |
√ |
|
Control output |
Output loop numbers |
Max. 12-way |
Max. 12-way |
|
Relay output (Static) (AC220V/5A) |
√ |
- |
|
Electric level output (Dynamic) (DC5-30V/20mA) |
- |
√ |
|
Communication |
RS485, Modbus-RTU |
√ 1 |
√ 1 |
|
Display mode |
Digital LED |
Digital LED |
|
Panel size (mm) |
120x120 |
120x120 |
|
Hole size (mm) |
111x111 |
111x111 |
|
Installation mode |
Panel Mounting |
Panel Mounting |
Technical Specifications
|
Description |
Parameters |
|
Power supply |
AC220V ( ± 10%); 50Hz ( ± 5%) |
|
Output capacity |
AC220V / 5A |
|
Under current preset |
20 ~ 40mA (Factory default: 150mA) |
|
Over voltage preset |
200 ~ 300V (Factory default: 250V) |
|
Switching preset |
0.85 ~ 0.99 (Factory default: 0.95) |
|
Time delay preset |
2 ~ 60s (Factory default: 10s) |
|
Current Sense |
5A |
|
Under voltage preset |
160 ~ 230V (Factory default: 180V) |
|
Switching off preset |
-0.99 ~ 0.90 (Factory default: -0.99) |
|
Power factor display |
-0.001 ~ 1 ~ + 0.001 |
|
Work environment |
Temperature |
-10 º C ~ 55 º C |
|
Relative humidity |
≤ 93%RH |
|
Altitude |
Non-corrosive gas forum, Altitude ≤ 2500m |
|
Storage environment |
Temperature |
-20 º C ~ 75 º C |
|
Relative humidity |
≤ 93%RH |
