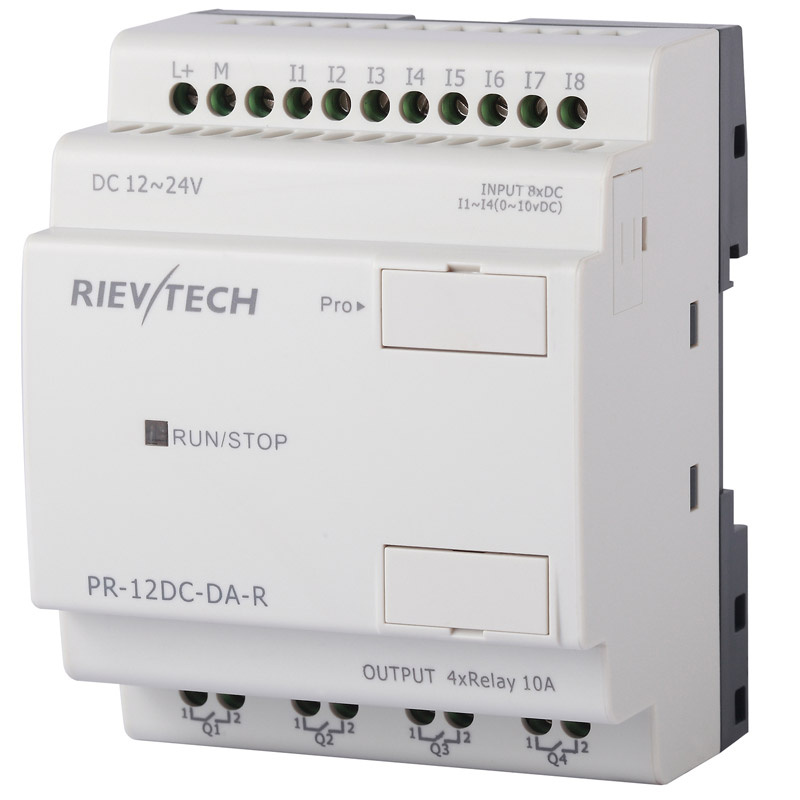

Programmable Logic Control Systems (PR-12DC-DA-R-CAP)
| Price: |
US $ 45-56/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Programmable Relay PR-12 series (Compact Range) overview:PR-12 range is advanced level model, incorporating a good mix of digital & analogue IO ,
Integrated High Speed inputs and PWM output, counters, timers,real time clock and time
switch functions. Available in 120V/240VAC or 12V/24VDC versions ;Easy to configure
with drag-and-drop function blocks or ladder using FREE xLogicSoft software.PR-12 range offers 4-line detachable LCD display and keypad for modifying parameters
or display and control whilst program is running.Product Description:PR-12 Series highlights at a glance:×Customizable Start-up page / screen ×4-line, 16-character configurable backlight display ×Modify parameters via Keypad panel without downloading new program×Various blocks' different parameters can be displayed on one screen / page simultaneously ×Randomly specify a specific page to display the IO status of the CPU×Alarm page can record and display the exact alarm occurrence time ×Programmable up to 64 (user defined) screens / pages ×Modbus RTU &ASCII protocol supported. ×Unit Size allows for DIN- rail mounting together with commonly used breakers in building automation applications. ×Retentive memory capability standard feature on the PR-12 model. ×It's optional for xLogic to act as slave or master in Modbus RTU communication network.×Extra large program capacity (256 function blocks available) Benefit×the ideal solution for simple automation tasks ×Minimizes costs - replaces many conventional switching control devices×Reduces time requirements - simplified wiring and panel layout×Saves much space in the switching cabinet - modules based on a 4 width industry standard
dimension replace a wide variety of relays,timer switches and contactor relays ×Furnishes the widest range of capabilities and successful implementation of extensive
applications with the option of selecting from 55 integrated functions and linking up to 256
of them in the user program. ×Operator control and monitoring are made very user friendly by means of a 4 line, 16 characters
per line,backlight display.×Additional external text display extends the possibilities for operator control and monitoring ×Password protection - Protects your engineering IP ×55 integrated, pre-tested functions - No additional devices, such as elapsed time counter,
are required ×Linking of 512 functions is possible - Extensive applications can be implemented without
restrictions ×Eight digital inputs (incl. four AIs at 12 / 24 V DC) and four digital outputs on board ×Display of message texts, action items and current values as well as direct modification of
the values on the display ×Retentive data memory - Protects current values against loss in the event of a power failure×Together with the xLogicSoft software, configuring of the xLogic is simply intuitive: program
generation, project simulation and documentation are accomplished using drag and drop
functionality, allowing maximum ease of operation.Technical Specifications:
GENERAL SPECIFICATIONSTimers : 256
Counters : 256
Function Blocks : 256
Operation temp. :-20ºC-55ºC
Storage :-40ºC-70ºC
Protection : IP20(Non-waterproof)
RTC accuracy : MAX ±5S/day
RTC time intervals : 256
RTC Backup at 25 °C : 100 hours, Li-ion battery (optional)
Power-off retentivity : Yes
Dimensions : 72*90*58 (Unit, mm)
Certificate : CE
Installation : 35mm-DIN rail or screw for installation
Modify parameters via keypad LCD:no
Password protection : Multiple password protection
Communication interface : 1 Program/RS232 port ( TTL interface)
Communication protocol : Modbus RTU/ASCII
It's optional for xLogic to be either slave or master in Modbus network. Technical Index| Power supply |
| Power | DC12V-24V |
| Input parameters: |
| Input No | 8 ( AI1/I1-AI4/I4+I5-I8 ) |
| Digital input | 8 ( I1-I8 ) |
| Analogue input | 4(AI1-AI4) |
| High speed input | I5,I6(14KHZ) I7,I8(60KHZ) |
| Power range | DC0-24V(digital)/DC0-10V(analogue) |
| Input signal0 | DC 0-3V |
| Input signal1 | DC 8-24V |
| Output parameters: |
| Output No | 4 (Q1-Q4) |
| Output type | Relay output |
| Continuous current | Resistive load 10A/Inductive load 2A |
| Switch frequency: |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: |
| The main frequency range | 47-63Hz |
| Weight | Approx.250g |

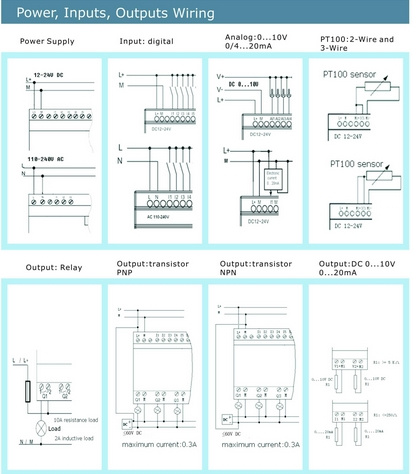

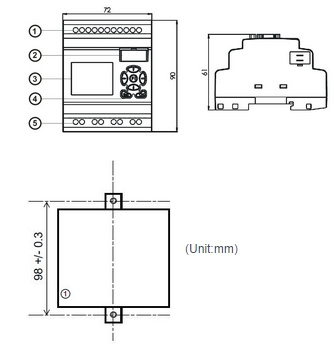

Dimensions & Wiring Diagram:Installation Dimensions :
1.Power supply&Input terminals 2. Program Port(can be used as RS232 port with ELC-RS232 or RS485 port with
PRO-RS485) 3.HMI/LCD panel 4.keypad 5.Output terminals
Wiring Diagram:
| Prod Model: |
PR-12DC-DA-R-CAP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inputs: |
4 Di/Ai + 4 Di |
| Outputs: |
4 Relays(10A) |
| Task: |
Program |
| Structure: |
Open-Loop |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
Used |
| Customized: |
Customized |
| Material: |
Fr-ABS |
