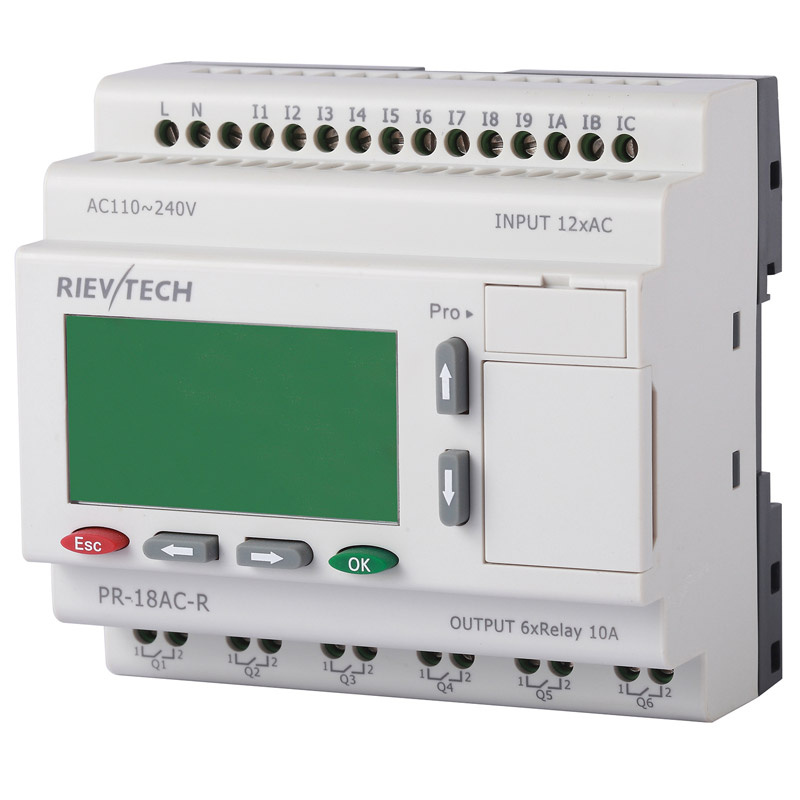

Programmable Logic Control Systems (PR-18AC-R-HMI)
| Price: |
US $ 80-87/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Micro PLC PR-18 series (Expandable Range)series overview:PR-18 range(Micro PLC) is advanced level model, incorporating a good mix of digital and
Analogue IO, Integrated High Speed inputs and PWM output,clock with calendar, counters ,
timers , integrated keypad display, serial communications and an expansion port. Available in
120V/240VAC or 12V/24VDC versions ; Easy to configure with drag-and-drop function blocks or ladder using FREE xLogicSoft software. Program capacity has been enlarged to 512 function
blocks as well, also high-speed count reaches 60KHZ.
PR-18 range offers 4-line*16 characters LCD display and keypad for program modification
or display and control whilst program is running. An expansion port allows the connection
of up to 10 expansion modules, extending the I/O channel count. Now it is also possible
to use the analog output module to solve simple closed-loop control tasks. Heating and
cooling systems can be designed with the RTD PT100 module using special functions for
PI control, ramp response and analog multiplexer.Product Description:Highlight of PR-18 Series: ×55 ready-to use functions integrated-no additional devices such as operating hours
counter required. ×Extremely large program capacity:up to 512 functions possible.×PR-18 series offers 4 line x16 characters LCD display and keypad for program modification
or display and control whilst program is running.×12 digital inputs(incl 8AI with 12/24V DC)and 6 digital outputs on board. ×Flexibly expandable up to 92DI,86DO,36AI,and 18AO.×Display of message texts,actual and set-point values and direct modification of the values
on the display(not on pure variants).×Integrated data retentivity-ensures backup of the current values in the event of a power failure.×Customizable Start-up page/screen.×Bool function,multiple timers,counters,PWM,PI controller,Ramp.Analog math supported. ×Can be modularly expanded up to 178 I/Os. ×230V units can be expanded with analog modules. ×Data-logging:Data from the production process can be saves in SD card of the external
accessory called ELC-MEMORY to either read it with a PC or evaluate it from the SD card at the workstation.×Extremely simple software×Display of up to 64 messages.×Multiple kinds of registers can be accessed.×Parameters setting menu in LCD panel.×Parameters can be modified in the alarming message.×Modbus RTU/ASCII/TCP protocol supported.×Retentive memory capability.×Powerful communication capability(1RS232 port,1 RS485 port and 1 expansion port)×Password protection.×It's optional for xLogic to act as salve or master in certain Modbus communication network.×Backup at Real Time Clock(RTC) at 25 ºC:100hours.×2 PWM channels optional.×Communicate with third party device which supports Modbus network.Technical Specifications:
GENERAL SPECIFICATIONSTimers : 512Counters : 512Function Blocks : 512Operation temp. : -20ºC-55ºC Storage :-40ºC-70ºCProtection : IP20(Non-waterproof) RTC accuracy : MAX ±5S/dayRTC time intervals : 512RTC Backup at 25 °C : 100 hoursPower-off retentivity : yesModify parameters via keypad LCD: yesDimensions : 95*90*61(Unit:mm)Certificate : CEInstallation : 35-DIN rail or screw for installationExpansion capacity: 9 modules (PR-E-16, CAN BUS)Password protection : Multiple password protectionCommunication interface : TTL interface , 1 RS232 port & 1 RS485 portCommunication protocol : Modbus RTU/ASCIITechnical Index| Power supply |
| Power | AC110V-240V |
| Input parameters: |
| Input No | 12 ( I1-IC ) |
| Digital input | 12 ( I1-IC ) |
| Analogue input | None |
| Power range | AC 0-240V |
| Input signal0 | AC 0-40V |
| Input signal1 | AC79-240V |
| Output parameters: |
| Output No | 6 (Q1-Q6) |
| Output type | Relay output |
| Continuous current | Resistive load 10A/Inductive load 2A |
| Switch frequency: |
| Mechanism | 10Hz |
| Resistor/light load | 2Hz |
| Sensitive load | 0.5Hz |
| Other parameters: |
| The main frequency range | 47-63Hz |
| Weight | Approx.350g |
Dimensions & Wiring Diagram:

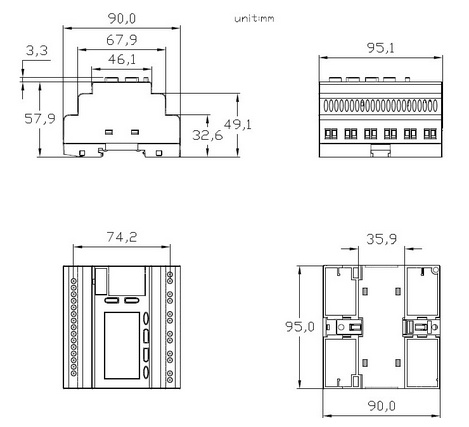

Dimensions:

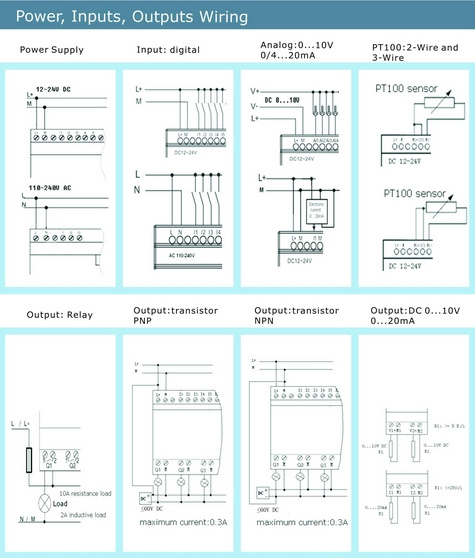

Wiring Diagram:
| Prod Model: |
PR-18AC-R-HMI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inputs: |
12 Digital |
| Outputs: |
6 Relays(10A) |
| Task: |
Program |
| Structure: |
Open-Loop |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
Used |
| Customized: |
Customized |
| Material: |
Fr-ABS |
