Price: | US $ 3980-7875/Piece |
---|---|
Trade Terms: | FOB,EXW,others |
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union |
Implementation of standards | |||||||
GB10589-89 Technical conditions of High and low temperature test chamber | |||||||
GB10586-93 Technical conditions of Hot and humid test chamber | |||||||
Meet the standard | |||||||
GB2423.1-89 Low temperature test method | |||||||
GB2423.2-89 high-temperature test methods | |||||||
GB2423-93 Test D6 alternating hot and humid test method | |||||||
IEC68-2-30 Test method D6 | |||||||
Technical parameters | |||||||
Performance | Temperature humidity method | Equilibrium temperature humidity (BTHC) PID intelligent adjustment | |||||
Temperature range | .-20±100ºC -40ºC±100ºC -60ºC±100ºC -80ºC±100ºC | ||||||
Temperature uniformity | ≤2ºC | ||||||
Temperature fluctuation | ≤±0.5ºC | ||||||
Humidity range | 20%RH~98%RH | ||||||
Humidity deviation | 75%RH under ;≤5%RH;75%RH above;≤2%RH,-3%RH | ||||||
Humidity fluctuation | ≤±2%RH | ||||||
Average temperature rise speed | ≥2ºC/min | ||||||
Average cooling speed | ≥1ºC-1.5ºC/min | ||||||
Inside capacity(L) | 100 | 150 | 225 | 500 | 800 | 1000 | |
Size | 400*500*500 | 500*600*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |
Weight(kg) | 200 | 250 | 300 | 500 | 600 | 700 | |
Material | Inner material | SUS304 Mirror stainless steel plate thickness=1.2-1.5mm | |||||
Outside material | SUS304 Wire drawing of stainless steel plate or antirust processing cold-rolled steel sheet(spraying plastics) | ||||||
Thermal insulation | Superfine glass wool or polyurethane foam | ||||||

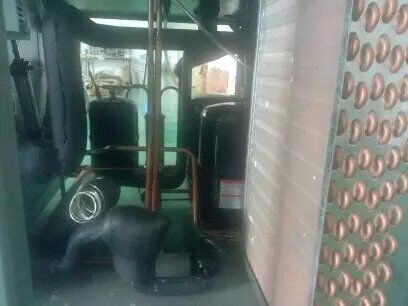

Refrigeration system | Cooling way | Air/water cooling | |||||
Gas flowing way | Single cycle extended shaft stainless steel centrifugal wind leaf (Broadband try forced air circulation) | ||||||
Refrigerating method | Unit refrigeration/dual(overlap)refrigerating method | ||||||
Heater | Nickel-chromium alloy heating wire heater | ||||||
Humidifier | Stainless steel armored humidifier(Shallow dish humidification way) | ||||||
Compressor | Original French imports "TECUMSEH" Enclosed refrigeration compressor or Germany zell compressor | ||||||
Refrigerant | HFC-R404A/HFC-R23 | ||||||
Control system | Control system | Korea(TEMI580/880/890)Color LCD touch screen | |||||
Temp-controled mode | Constant value or program to run | ||||||
Water supply method | Circulating water supply | ||||||
Sensor | PT100 Platinum resistance | ||||||
Security device | Leakage protection, water protection, overtemperature protection, quick fuse compressor over-voltage protection and current protection | ||||||
Standard configuration | Internal heating type hollow glass observation window 1PCS/Floodlight 1PCS/Test hole ¢mm and Rubber plug each 1pcs/ RS-485 Communication interface/sample frame 2 pair/Wet ball gauze 1pcs/caster 4pcs/power line (limit 3M) | ||||||
Power supply | 220V-50HZ 300V-50HZ Three phase four wire + grounding line | ||||||
Remark | Technical indicators for environmental temperature or cooling circulating water temperature above 25 ºC,Under the condition of no-load test |

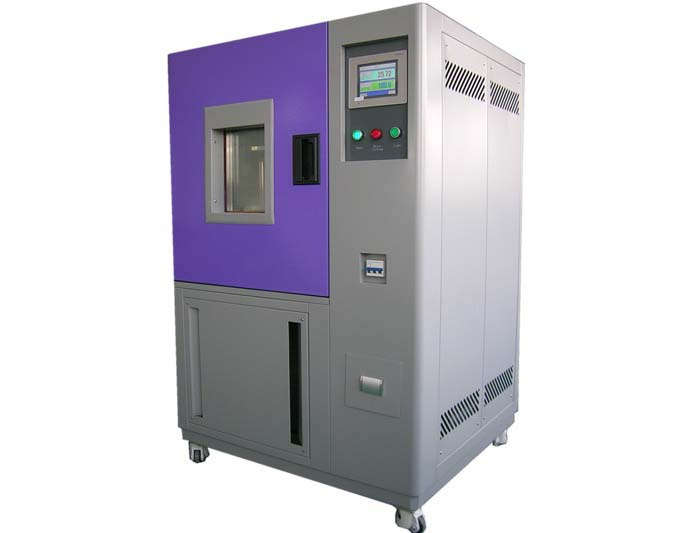

Prod Model: | LX-100 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: | 500-1000Kg |
Power Source: | AC220V |
Type: | Environmental Test Machine |
