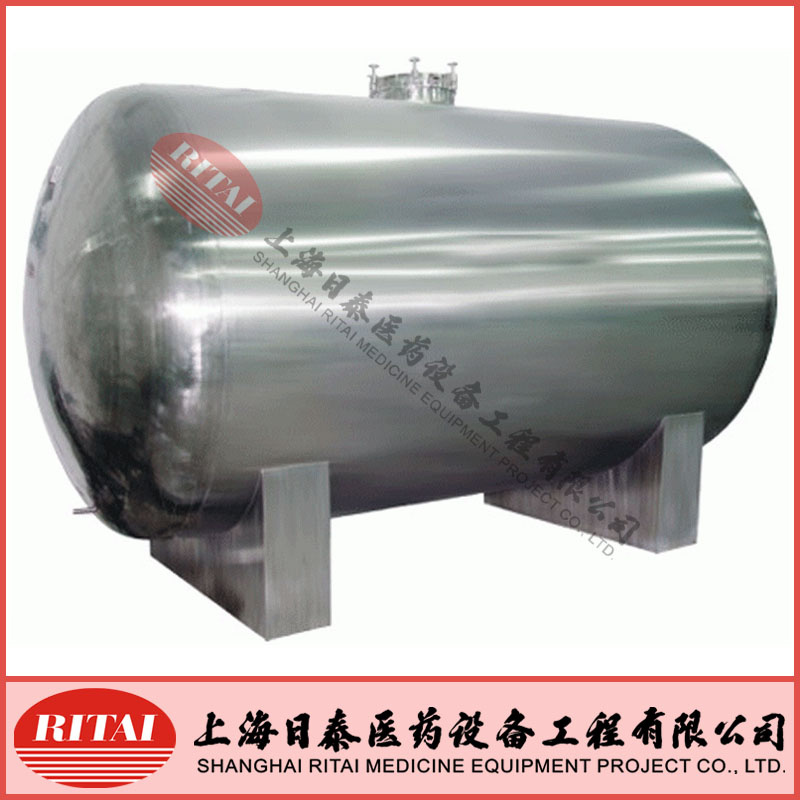

Purified Water Storage Tank
| Price: |
US $ 1Unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Unit |
| Pay Type: |
L/C,T/T,Western Union |
Feature:
Feature: equipments are designed and manufactured fully according to the demand of GMP and to
standards, such as steel pressure vessels (GB150-2011), andsteel welded atmospheric
pressure vessels (JB/T4735-1997), etc.
Application:
It is applied to liquid preparation and various water treatment process in purgative area. It is most often
used for storage WFI , PW and CIP system. At the same time, we also design and manufacture various
non-standard vessels.
Description:
Product technical description:
Specification: 5L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: no or with agitator according to client detail requirement.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to clients' detailed requirements.
| Prod Model: |
RTPW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Validation: |
GMP |
| Documents: |
GMP, Dq, Iq, Oq, Pq, Fat, Sat, Manual... |
| Finished Dosage Form: |
Liquid |
| Type: |
Pharmaceutical Water Treatment Equipment |
| Certification: |
Asme, PED 97/23/Ec, Nb, GB |
