Product Specifications
| Prod Model: |
RTCL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V or Others |
| Power: |
0.55kw~5.5kw |
| Mixing Liquid: |
Pharmaceuitcal Liquid |
| Safety Class: |
Explosion-Proof or Non-Explosion |
| Mixer: |
Bottom Magnetic Agitator |
| Validation: |
GMP |
| Documents: |
GMP, Dq, Iq, Oq, Pq, Fat, Sat,Manual, Drawing,etc. |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
1 Year |
| Spare Parts: |
2 Years |
| Mixer Type: |
Agitator |
| Working: |
Convection Mixer |
| Application: |
Liquid |
| Additional Capabilities: |
Temp., Level, Weight Display&Record, Cip, SIP, etc |

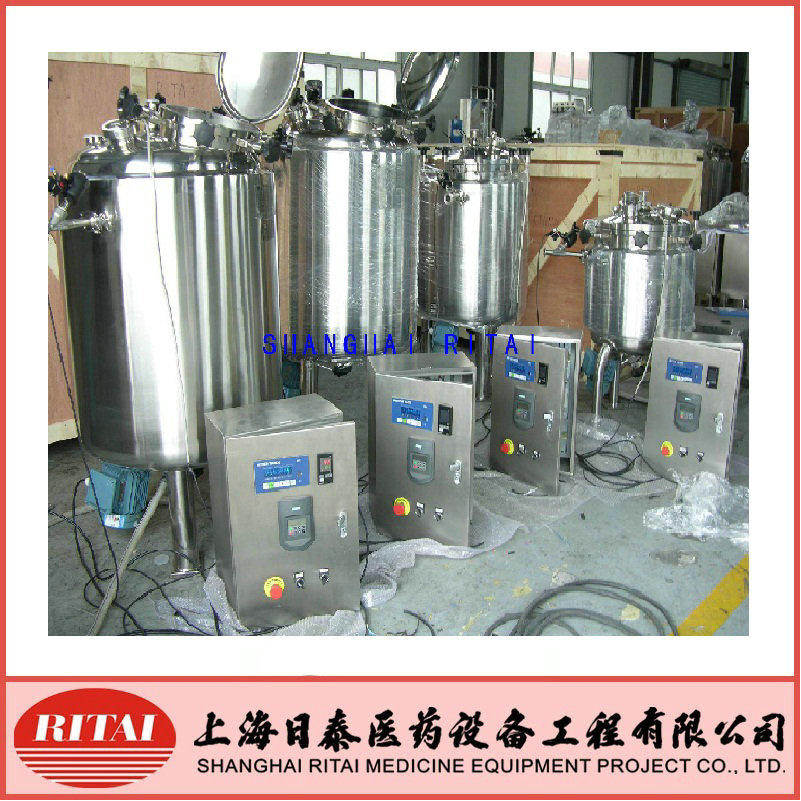

Product Description
Specification: 30L~30000L
Material: SS316L or SS304
Surface finish: Inside surface is Ra0.28~0.6μm by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: Bottom magnetic agitator or top mechanical agitator
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, multi-layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: Dimple jacket, full jacket, or coil jacket
Insulation material: Rock wool
Components: Vent filter, temp. Gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client's detail requirement.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011
|
Working volume |
Inner
diameter |
Outer
diameter |
Vessel
height |
Total volume |
|
30L |
400mm |
500mm |
400mm |
44L |
|
50L |
400mm |
500mm |
600mm |
69L |
|
100L |
500mm |
600mm |
650mm |
130L |
|
200L |
600mm |
700mm |
1000mm |
250L |
|
300L |
700mm |
800mm |
1250mm |
370L |
|
500L |
900mm |
1050mm |
1150mm |
650L |
|
1000L |
1100mm |
1250mm |
1480mm |
1260L |
|
1500L |
1200mm |
1350nmm |
1700mm |
1780L |
|
2000L |
1300mm |
1500mm |
1980mm |
2200L |
|
3000L |
1500mm |
1700mm |
2150mm |
3400L |
|
4000L |
1600mm |
1750mm |
2630mm |
4000L |
|
8000L |
1900mm |
2100mm |
3200mm |
8300L |
|
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. |
Shanghai Ritai Medicine Equipment Project Co., Ltd. Mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, valves and piping system which are widely used in the following fields, such as chemical, pharmaceutical, biological, and food industry.
Shanghai RITAI, a member of Chinese Pharmaceutical Equipment Industry Association and Shanghai Special Equipment Management Association, regards ISO9001 as its basic guarantee of quality management system, and is qualified to manufacture and design special equipments (I, II pressure vessels) with manufacture and design license of special equipment people' S republic of China, and American ASME (U)stamp and EU PED/CE.
Shanghai RITAI, with high technology and advanced equipment, provides clients with integrated services including design and fabrication, which are in accordance with the standards and code of GB, ASME, PED, etc, and also including installation, debugging, training and after-sale service. Not only are our products sold well in China, but also we have exported our products to Italy, Holland, Australia, India, Egypt, Indonesia, Saudi Arabia, Malaysia, etc.
More than fifteen years efforts have made Shanghai RITAI accumulate rich experience in technology and quality management for the design, fabrication. We possess advanced technology in stainless steel thin plate forming, welding, electro polishing and mechanical polishing, etc. Product is manufactured strictly according to the requirement of GMP and FDA, and various quality indexes have attained an advanced level worldwide. It enjoys a good reputation both in domestic and international market for performance, outline, span life and services.
"Quality first and customer first" is our tenet. Our goal is simply to furnish high quality products at competitive prices in the global market and delivering to meet the challenges required in the todays business environment. We sincerely welcome friends from around the world to cooperate with us to have a brilliant future.
