Product Specifications
| Prod Model: |
FSP-D40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Surge Protection of PV System in DC Side |
| Type: |
Power Source Arrester |
| Brand: |
Feeo |
| Certification: |
CE |
| Structure: |
Pluggable |
| Installation: |
DIN Rail |
Product Description
Product Description

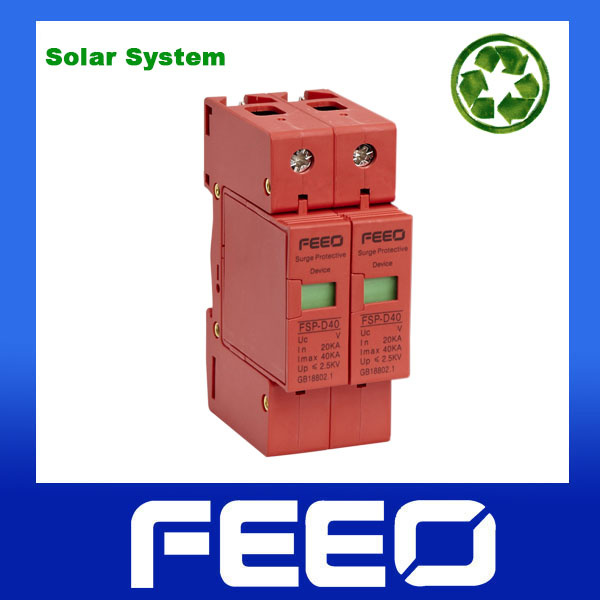

FEEO Solar Energy DC Surge Protector
FSP surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
| Main Data | SP1-B ( Class 1 protection ) |
| Pole(s) | 1P, 2P, 1P+N, 3P, 3P+N, 4P
|
| Nominal Discharge current In (8/20μ s /kA) | 5/10 |
| Max. discharge current Imax. In (8/20μ s /kA) | 10/20 |
| Max. continuous operting voltage Uc. (v) | | 275 | 320 | 385 | 420 | 275 | 320 | 385 | 420 |
|
| U1mA (v) | | 430 | 510 | 620 | 680 | 430 | 510 | 620 | 680 |
|
| Rated working voltage | 230v/400v
|
| Voltage protection Level UP(kv) | | ≤ 1.0 | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 | ≤ 1.2 | ≤ 1.5 |
|
| Response time (ns ) | ≤ 25 |
| 75%Uc 1mA | 20μ A |
| Test classification | class 2 |
| protection class | IP 20 |
| operating Environment | -40º C_ +80º C |
