Shaanxi HAVEN Equipment Co., Ltd. >> Q35y Hydraulic Iron Working Shearing Machine, Metal Punching and Cutting Machine, Hydrualic Combined Punching Nad Shearing Machine with Notching
Q35y Hydraulic Iron Working Shearing Machine, Metal Punching and Cutting Machine, Hydrualic Combined Punching Nad Shearing Machine with Notching
Product Specifications
| Prod Model: |
QA35Y-30/20,Q35Y-16,20,25,30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Punching Machine: |
Shearing Machine |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
Normal Precision |
Product Description
Q35y Hydraulic Iron Working Shearing Machine, Metal Punching and Cutting Machine, Hydrualic Combined Punching Nad Shearing Machine with Notching

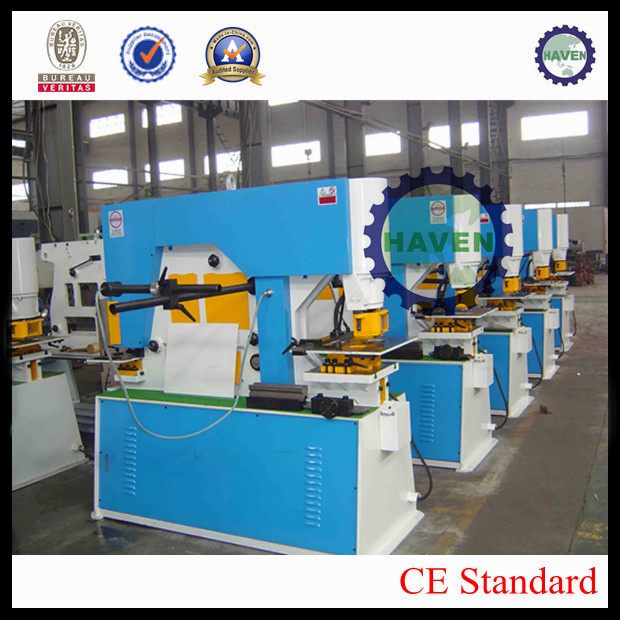

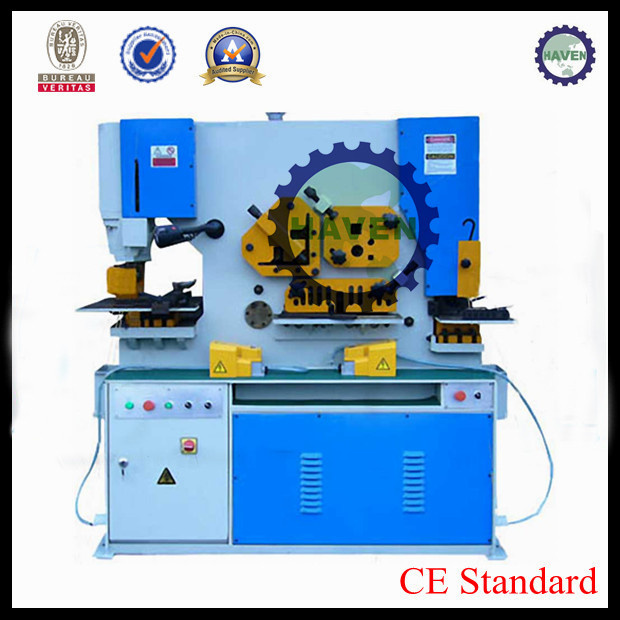

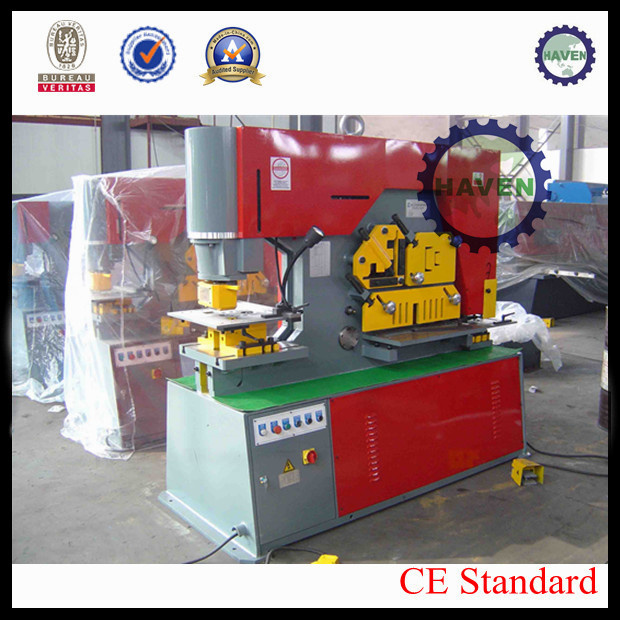

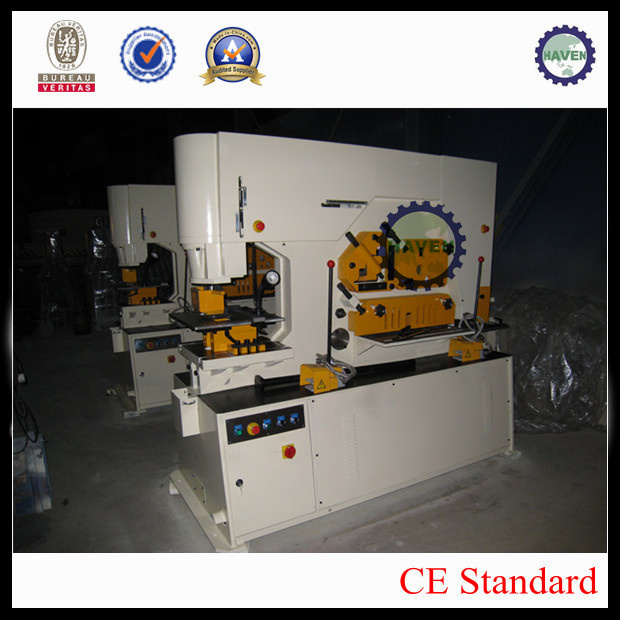

Iron Worker
With beautiful appearance, low noise and multi-usages, the machine has five basic functions: Punching, steel-; Late shearing, angle-iron-shearing and template-shearing. According to consumers'own demands, the machine can also punch and shear workpieces with all kinds of shapes by changing moulds or cutting tools.
The machinery can be used widely. And is the essential manufacturing equipment in aircraft, tractor, motor-driven vechicle, ship power, metallurgy, farm machine- ry, metal construction, bridge, machine-making etc.
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
|
| Force ( t) | 66 | 90 | 120 | 165 |
|
| Max. Hole punching thickness (mm) | 16 | 20 | 25 | 30 |
|
| Max. Hole punching diameter (mm) | 25 | 30 | 35 | 38 |
|
| Max. flat steel shearing capacity | 16×250 | 20×330 | 25×33 | 30×335 |
| 8×400 | 10×480 | 10×480 | 20×600 |
| Hydraulic cylinder slide stroke (mm) | 80 | 80 | 80 | 80 |
|
| Stroke number / min | 8 | 8 | 6 | 6 |
|
| Main motor (kw) | 4 | 5.5 | 7.5 | 11 |
|
| Machine dimension (mm) | 1640×730×1770 | 1860×800×1900 | 2355×960×2090 | 2680×1040×2300 |
|
| Machine weight (kg ) | 1600 | 2000 | 4800 | 6800 |
|
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
Management System Certification: ISO 9001,ISO 9000
International Commercial Terms: FOB, CFR, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 11~20 People
Export Year: 2003-09-09
Export Percentage: >90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Mid East
Factory Address: No. 31Nan Er Huan East Road, Xi'An, China
R&D Capacity: Own Brand(HAVEN)
No. of R&D Staff: 11-20 People
No. of Production Lines: 3
Annual Output Value: US$10 Million - US$50 Million
