Features
1.Hydraulic magnetic technology ensures reduced nuisance tripping with temperature variance
2.Always hold 100% rated current
3.Wide range of time delay&operating currents
4.Current limiting capabilities
5.Ultra compact-13mm width module
6.Din,Mini-rail or Dual mountable
7.Trip indication with mid trip handle position
8.Switch disconnector provides circuit isolation
9.Reset possible immediately after overload

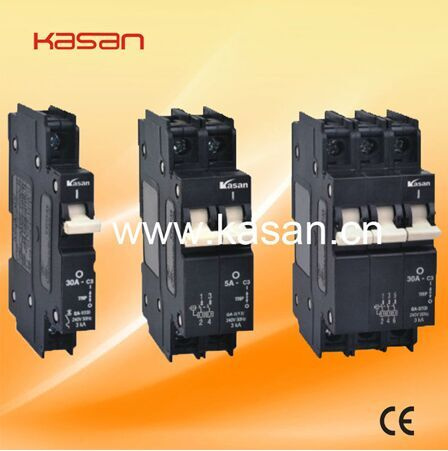

QA Series CBI Hydraulic Magnetic circuit breaker
1.Application
QA Series is mainly for suitable for overload and short circuit protection. It adopt hydraulic magnetic trip instead bimetal .So it has a high sensitivity and it is also not effected by the ambient temperature . It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short-circuit protection within the circuit of AC 50Hz/60Hz, rated voltage of single pole or double up to 240V, three poles up to 415V. They can also be used for an unfrequent switch-over of the circuit and illumination under normal conditions. They are comply with IEC 157-1973, BC4752-1977 and BS 3871 part 1
2.Specification
1.number of poles :1P, 2P,3P
2.Rated current(A):6,10,16,20,25,30,40,50,63,70,80,90,100
3.Breaking capacity(A):3000
4.Rated voltage(V)110/220(1P), 240/415(2P),415(3P)
5.Rated frequency:50/60HZ
6lectrical life:no less than 6000 operation
7Mechanical life:(O-C)no less than16000 operation
3.Packing detail
1. Product Net weight: 90g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .
3. N.W: 24KG/carton
4. G.W:25KG/carton
5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×24×34 cm ( ie 0.038cbm)
6.20 foot container (26 cbm): 19,2000 pole ,800 cartons
7.40 foot container (54 cbm): 38,4000 pole, 1600 cartons
QA1 MCB ( Miniature Circuit Breaker )
Description |
For protection against overload and short circuits in the electrical distribution system.
Use in domestic, commercial and light industrial installations. |
| Technical Data |
Conform to IEC 60898,BS 3871-Pt1
Body material: Bakelite
Rated Current: bakelite 5-100A
Rated Voltage: 120,120/240,240/440V AC
Breaking Capacity: 6kA
Frequency: 50/60Hz
Degree of protection:IP20 |
| Connection |
Clamp terminal
Mounting:
Clips mounting base |
FAQ
Q 1: what is your minimum order quantity for whole of your products ?
A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: how about the delivery time ?
A 2: It depend on your order quantity, some items we have in stock, but some items need produce.
Q 3: Could you offer Form A or C/O ?
A3: It totally no problem. We can issue Form A and C/O as per customer's need once boat leave.
Q 4: Would you accept OEM ?
A 4: OEM. totally no problem for us. But it require bigger Q'ty than normal.
Q 5: We want to know month capacity.
A 5: 360000pcs/month
Q 6: Where is your market?
A6:Our products are popular in US,UK,Ireland,Sweden,France,South of America, Asia, many of Africa countries and so on.
Q 7: what kind of certificate you have ?
A 7: Our company already achieve ISO, and for products, we have CE, SEMKO,CB, VDE(pending) .
Q 8: what kind of payment terms can you offer ?
A 8: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight
Usual way of payment for by sea goods:
30% advance ,70% balance before shipment
Compensation term:
Q9: If we bought your products, but found quality problem, how to solve?
A9: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
