| Supplier: | Hangzhou Qianjiang Compressor Co., Ltd. |
|---|---|
| Price: | US $ 1-100/Piece |
| Min Order: | 1000/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,CIF |
|
|
| Prod Model: | QD168H-6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Piston |
| Performance: | Low Noise |
| Drive Mode: | Electric |
| Power Source: | AC Power |
| Configuration: | Stationary |
| Material: | Copper |
| Piston Type: | Closed |
| Lubrication Style: | Lubricated |
| Application: | Low Back Pressure Type |
| Mute: | Not Mute |
Application in upright refrigerators
Low noise
Small vibration
High stability
High reliability
Nominal power is 2/5HP
COP is 1.18 when Evap. Temp. Is -23.3° C
CSIR Motor
Cooling type F
QD168H has passed CCC certification
Low Back Pressure
Several general requirements as below
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

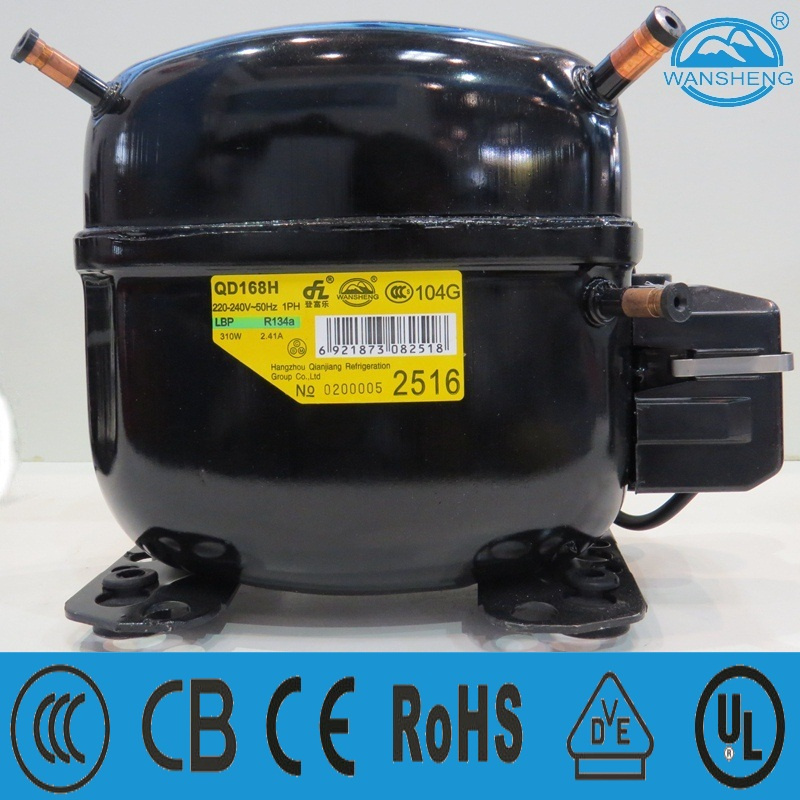

Upright compressor QD168H is the best refrigerator compressor
SC series QD168H is R134a Compressor
Cheap price and good service provided for the compressor QD168H
Starting device is Starting Relay
Frequency only for 50HZ
Voltage application from 220 to 240V
| R134a-LBP COMPRESSOR PERFORMANCE PARAMETER | |||||||||||
| Wansheng R134a low back pressure(LBP) compressor | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C | ||||||||
| Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C | ||||||||||
| Subcooling Temp.: 32.2°C | LBP ASHRAE | ||||||||||
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor (μF) | Running Capacitor (μF) | Starting Relay | Cooling Type |
| SC series 220-240V/50Hz | |||||||||||
| QD168H | 220-240V~50Hz | 16.8 | 323 | 310 | 2/5 | 1.04 | CSIR | 80 | / | Starting Relay | F2 |
