Supplier: | Hangzhou Qianjiang Compressor Co., Ltd. |
---|---|
Price: | US $ 1-100/Piece |
Min Order: | 1000/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | QD91H-6 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Piston |
Performance: | Low Noise |
Drive Mode: | Electric |
Power Source: | AC Power |
Configuration: | Stationary |
Material: | Copper |
Piston Type: | Closed |
Lubrication Style: | Lubricated |
Application: | Low Back Pressure Type |
Mute: | Not Mute |
R134a-LBP COMPRESSOR PERFORMANCE PARAMETER | |||||||||
Wansheng R134a low back pressure(LBP) compressor | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C | ||||||
Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C | ||||||||
Subcooling Temp.: 32.2°C | LBP ASHRAE | ||||||||
Model | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
WS series 220V/50Hz | |||||||||
QD91H | 9.1 | 208/235 | 173/181 | 1/4 | 1.2/1.3 | RSIR | / | PTC | S |
1. Use R134a refrigerant
2.220V/50-60Hz, applicated LBP
3. Used for display cabinets and other medium-sized, large refrigeration equipment
4. With CCC/CE certification
5.220V/50-60HZ Compressors: WS Series are in fully enclosed crank and connecting rod structure and with reciprocating piston in the semi-direct suction mode
6. Small size
7. The main feature: Good startup performance, low noise and good reliability
8. High efficiency
9. High reliability
10. Reliable starting performance
11. Low sound & vibration

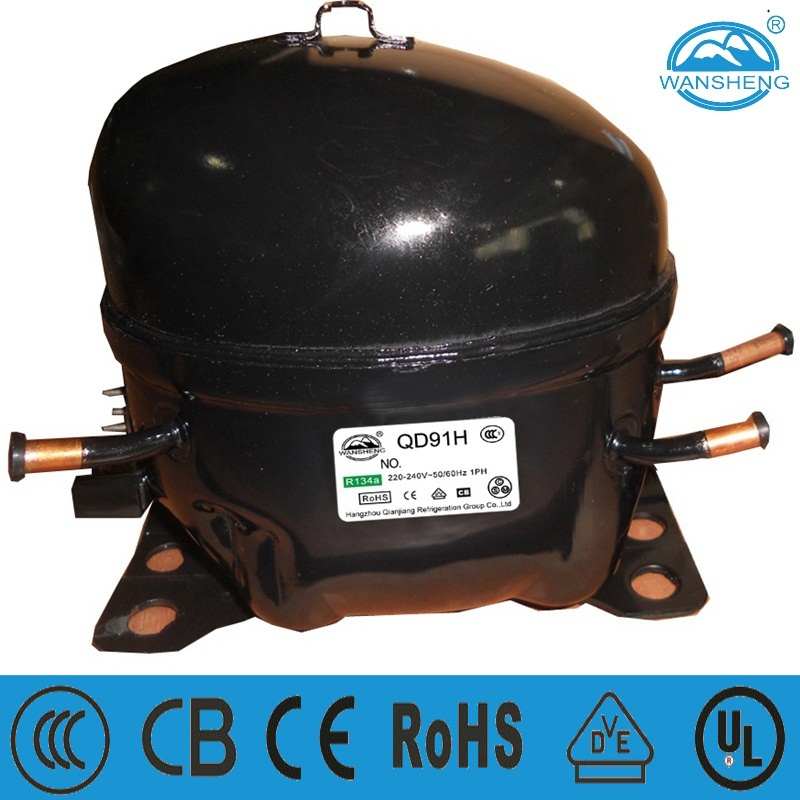

Model: QD91H
Test Conditions
Evap. Temp.: -23.3º C
Cond. Temp.: 54.4º C
Amb. Temp.: 32.2º C
Suction. Temp.: 32.2º C
Subcooling Temp.: 32.2º C
LBP ASHRAE
Power Supply: 220-240V/50Hz
Displacement (cm³ ): 9.1
Cooling Capacity (W): 208
Rated Power (W): 183
Nominal power (HP): 1/4
COP (W/W): 1.13
Rated Current (A): 1.55
Motor Type: RSIR
Capacitor (μ F): /
Starting Relay: Applying Relay
Cooling Type: S
Packing (PCS/pallet): 100
1× 20'FCL (PCS): 2000
